ELL-VEG Series

Catalog

FIXED IND 3.3UH 820MA 210MOHM SM

Part	Mounting Type	Package / Case	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	Type	Inductance	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	DC Resistance (DCR)

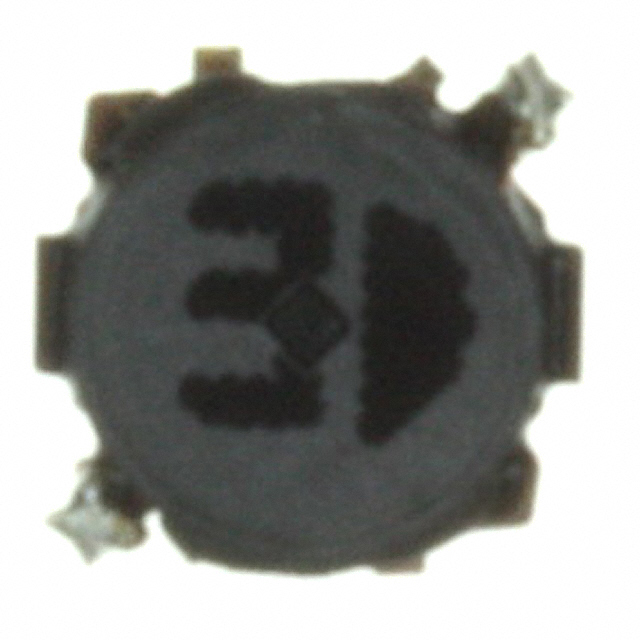

Panasonic Industrial Automation Sales ELL-VEG3R3N	Surface Mount	Nonstandard	820 mA	1 A	Shielded	Wirewound	3.3 µH	30 %	0.118 in	3 mm	3 mm	0.118 in	0.039 "	1 mm	100 kHz	210 mOhm
Panasonic Industrial Automation Sales ELL-VEG330M	Surface Mount	Nonstandard	0.29 A	260 mA	Shielded	Wirewound	33 µH	20 %	0.118 in	3 mm	3 mm	0.118 in	0.039 "	1 mm	100 kHz	2.3 Ohm
Panasonic Industrial Automation Sales ELL-VEG100M-ENL

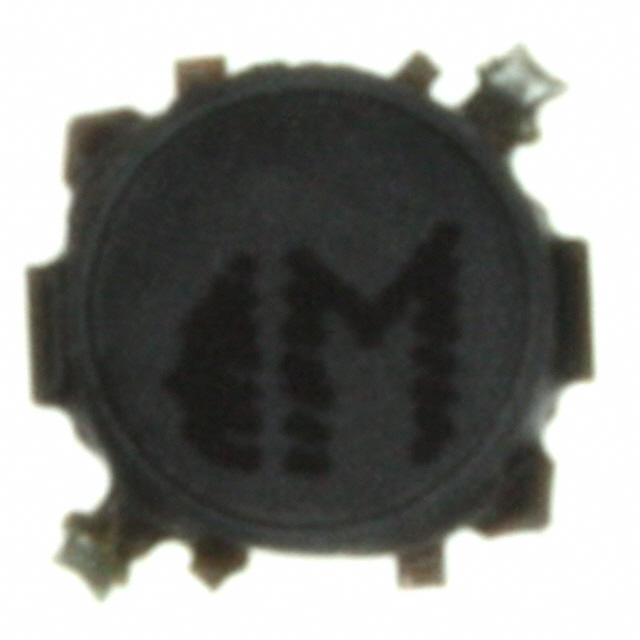

Panasonic Industrial Automation Sales ELL-VEG100M	Surface Mount	Nonstandard	600 mA	520 mA	Shielded	Wirewound	10 µH	20 %	0.118 in	3 mm	3 mm	0.118 in	0.039 "	1 mm	100 kHz	480 mOhm

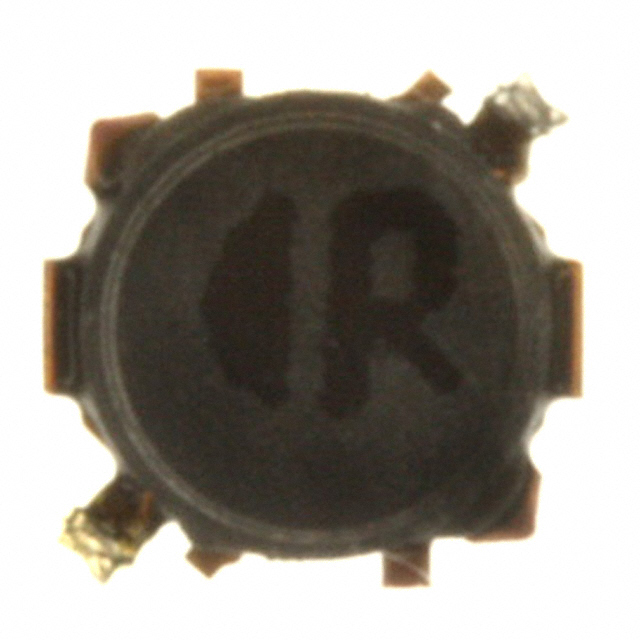

Panasonic Industrial Automation Sales ELL-VEG220M	Surface Mount	Nonstandard	400 mA		Shielded	Wirewound	22 µH	20 %	0.118 in	3 mm	3 mm	0.118 in	0.039 "	1 mm	100 kHz	1.2 Ohm

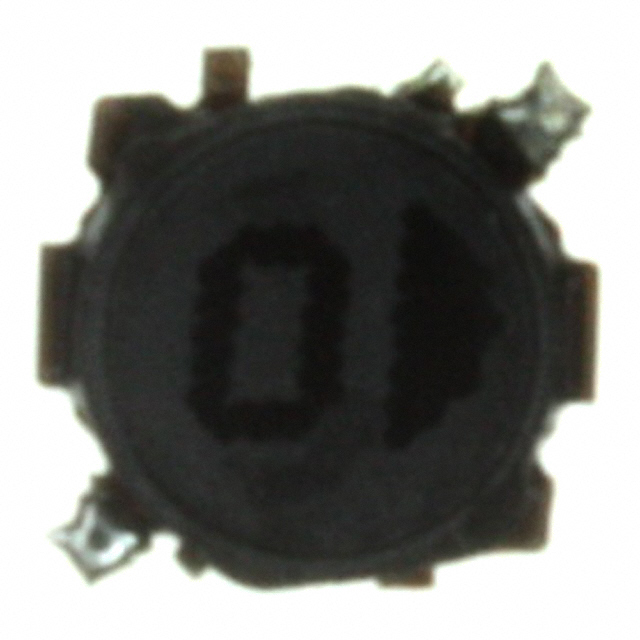

Panasonic Industrial Automation Sales ELL-VEG150M	Surface Mount	Nonstandard	490 mA	430 mA	Shielded	Wirewound	15 µH	20 %	0.118 in	3 mm	3 mm	0.118 in	0.039 "	1 mm	100 kHz	710 mOhm
