SAN.M04 Series
Manufacturer: LEMO
Beta
⌘K

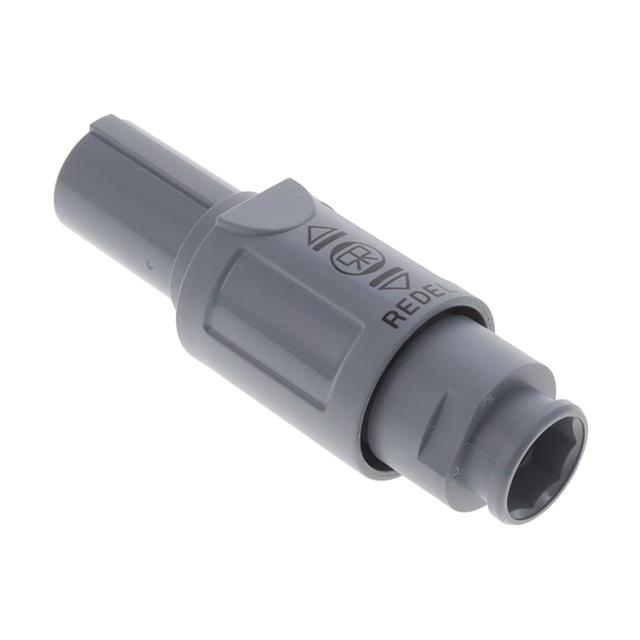

CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Shell Material | Mounting Type | Applications | Connector Type | Shell Size - Insert | Orientation | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Features | Color | Shielding | Fastening Type | Number of Positions | Ingress Protection | Primary Material | Contact Finish - Mating | Current Rating (Amps) | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Sulfone | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | Plug Male Pins | M04 | N (Normal) | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Backshell | Gray | Unshielded | Push-Pull | 4 | IP50 - Dust Protected | Plastic | Gold | 11.5 A | Polyetheretherketone (PEEK) | 170 °C | -50 °C | Sulfone | |
LEMO | Sulfone | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | Plug Male Pins | M04 | N (Normal) | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Backshell | Gray | Unshielded | Push-Pull | 4 | IP50 - Dust Protected | Plastic | Gold | 11.5 A | Polyetheretherketone (PEEK) | 170 °C | -50 °C | Sulfone | |
 LEMO | Sulfone | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | Plug Male Pins | M04 | N (Normal) | 0.157 in | 0.205 in | Backshell | Gray | Unshielded | Push-Pull | 4 | IP50 - Dust Protected | Plastic | Gold | 11.5 A | Polyetheretherketone (PEEK) | 170 °C | -50 °C | Sulfone | 4 mm 5.2 mm |
