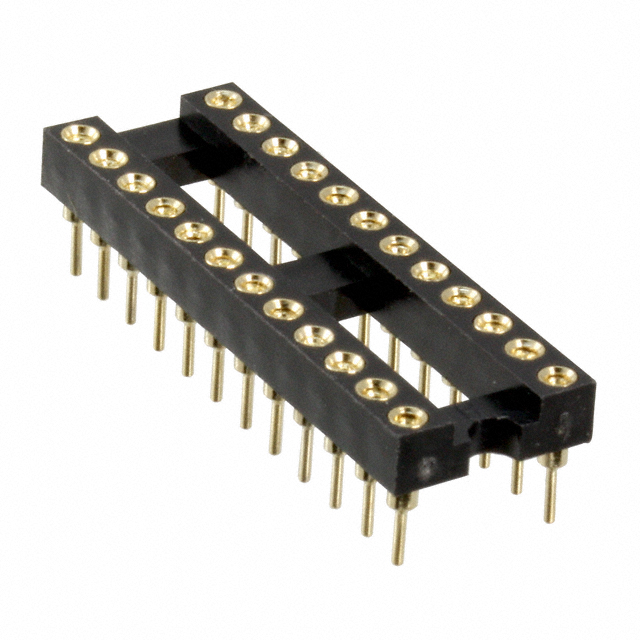

SA24304 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
CONN IC DIP SOCKET 24POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Pitch - Post | Pitch - Post | Contact Finish - Mating | Type | Type | Type | Housing Material | Features | Contact Finish Thickness - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Termination | Contact Material - Post [custom] | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | UL94 V-0 | 4 mOhm | 12 | 2 | 24 | 0.1 in | 2.54 mm | Gold | 7.62 mm | 0.3 in | DIP | Glass Filled Polyester Thermoplastic | Open Frame | Flash | Gold | 0.1 " | 2.54 mm | Solder | Brass | Beryllium Copper | -40 C | 105 ░C | 2.03 µm | 80 µin | Through Hole |
