R11430 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

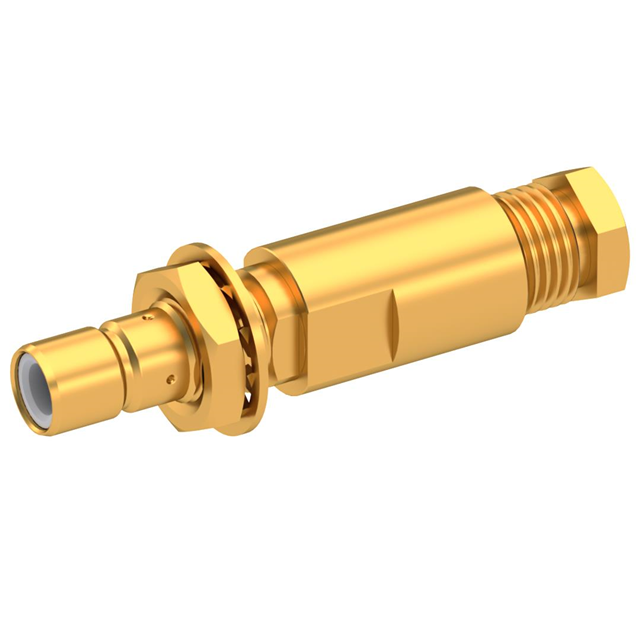

SMB / STRAIGHT BULKHEAD JACK CLA
| Part | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Mating Cycles | Body Material | Connector Style | Cable Group | Frequency - Max [Max] | Connector Type | Impedance | Fastening Type | Number of Ports | Mounting Type | Shield Termination | Mounting Feature | Center Contact Material | Housing Color | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 165 °C | Gold | Gold | 500 | Brass | SMB | 187 188 316 RG-179 | 4 GHz | Jack Male Pin | 50 Ohms | Snap-On | 1 | Panel Mount | Clamp | Bulkhead - Front Side Nut | Brass | Gold | Solder | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 250 V | -55 C | 100 °C | Gold | Gold | 500 | Brass | SMB | RG-178 | 4 GHz | Jack Male Pin | 50 Ohms | Snap-On | 1 | Panel Mount | Clamp | Bulkhead - Front Side Nut | Brass | Gold | Solder | 196 |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 165 °C | Gold | Gold | 500 | Brass | SMB | 187 188 316 RG-179 | 4 GHz | Jack Male Pin | 50 Ohms | Snap-On | 1 | Panel Mount | Clamp | Bulkhead - Front Side Nut | Brass | Gold | Solder |
