2058703 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

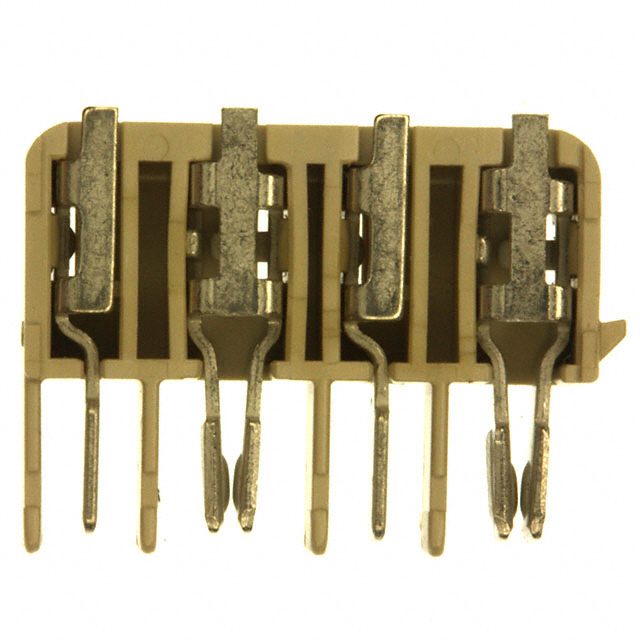

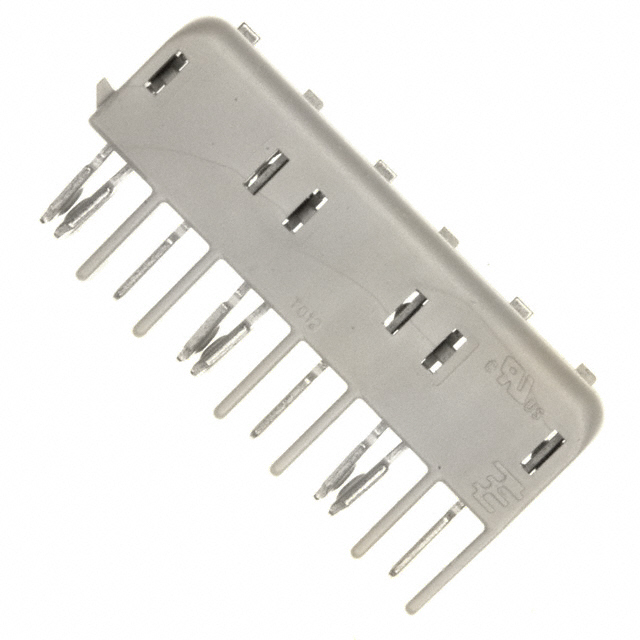

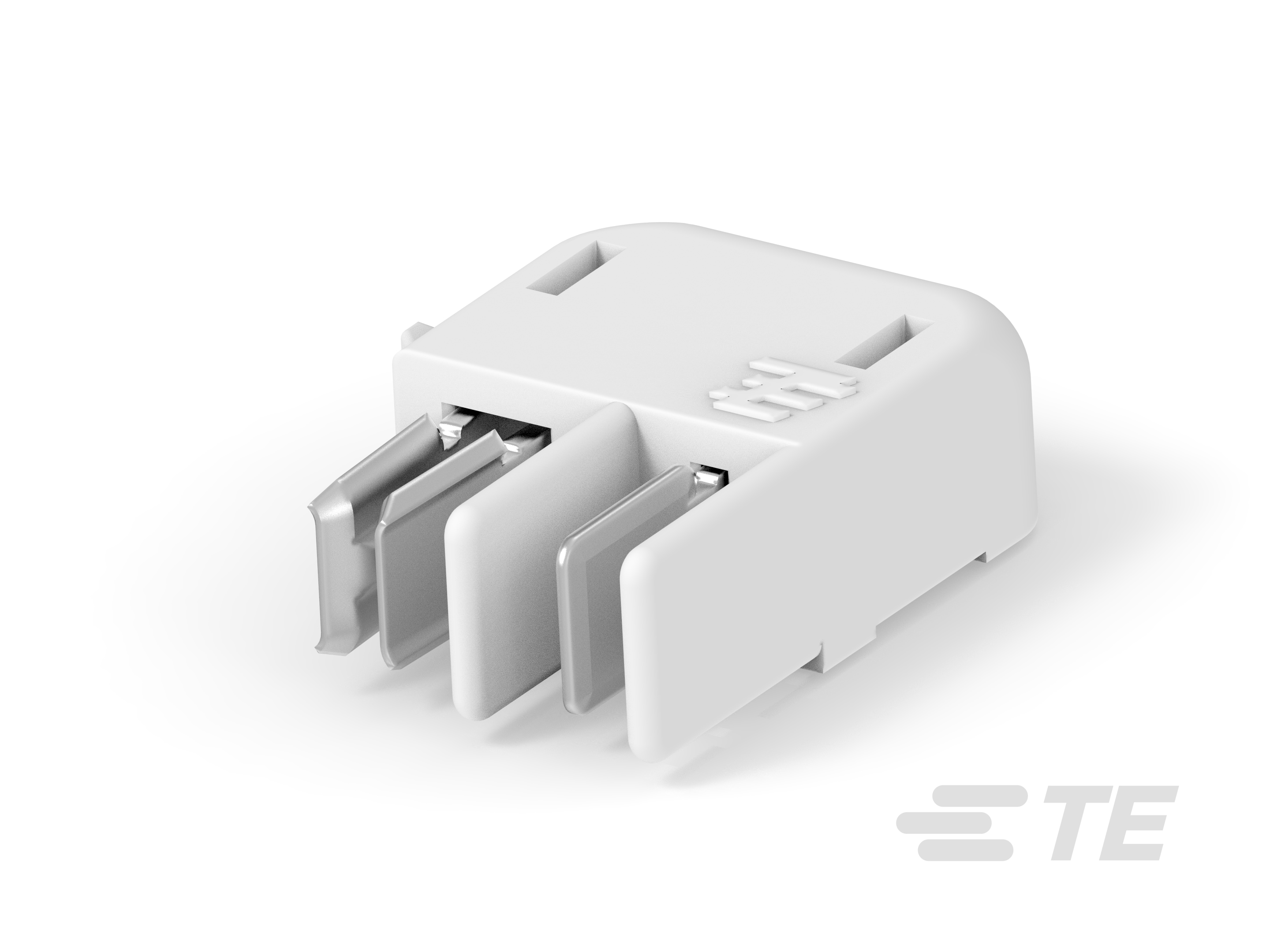

CONN SSL RCPT & BLADE 4POS 4MM
| Part | Housing Material | Current Rating (Amps) | Contact Material | Connector Type | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Termination | Contact Finish | Number of Positions | Housing Color | Pitch [x] | Pitch [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | 6 A | Copper Alloy | Blade and Receptacle Hermaphroditic | 125 VDC | -40 °C | 105 ░C | Locking Ramp | Solder | Tin | 4 | Natural | 4 mm | 0.157 in | Board Edge Right Angle Surface Mount |
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | 6 A | Copper Alloy | Blade and Receptacle Hermaphroditic | 125 VDC | -40 °C | 105 ░C | Locking Ramp | Solder | Tin | 6 | Natural | 4 mm | 0.157 in | Board Edge Right Angle Surface Mount |
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | 6 A | Copper Alloy | Blade and Receptacle Hermaphroditic | 125 VDC | -40 °C | 105 ░C | Locking Ramp | Solder | Tin | 2 | Natural | 4 mm | 0.157 in | Board Edge Right Angle Surface Mount |
