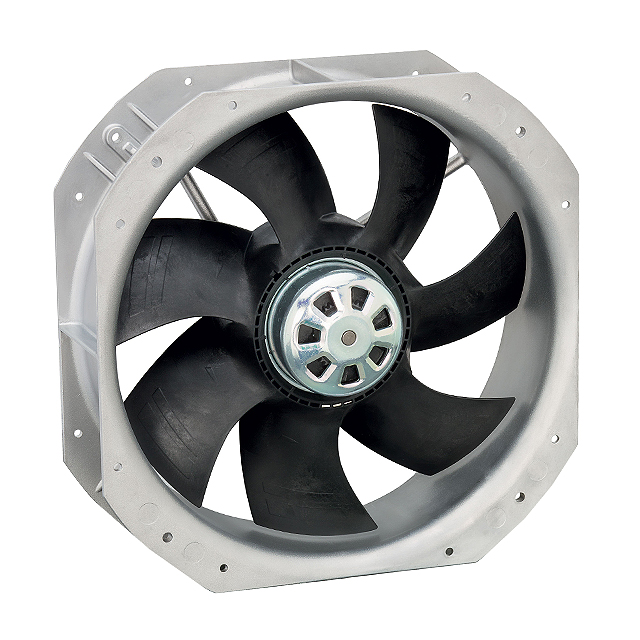

W3G250 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

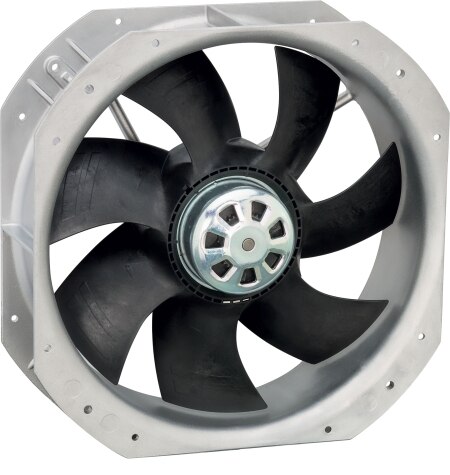

AC FAN AXIAL BALL BEARING 115V 100V TO 130V 846CFM 280 X 280 X 80MM
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Frame | Material - Blade | Voltage - Rated | Termination | Weight | Weight | Bearing Type | Approval Agency | Fan Type | Power (Watts) | Width [y] | Air Flow | Air Flow | RPM | Features | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Ingress Protection | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 100 VAC | 130 VAC | 900 mA | Aluminum | Polypropylene (PP) | 115 VAC | Terminal Block | 2.1 kg | 4.6 lbs | Ball | UL | Tubeaxial | 56 W | 80 mm | 23.69 m³/min | 846 CFM | 2040 RPM | PWM Control Speed Sensor (Tach) | 280 mm | 280 mm | 50 °C | -25 °C | -25 °C | 50 °C | 79.7 Pa | 0.32 in H2O | IP54 - Dust Protected Water Resistant | ||
 ebm-papst Inc. | 200 VAC | 277 VAC | 1.25 A | Steel | Steel | 230 VAC | 3 Wire Leads with Ferrules 4 Wire Leads with Ferrules | Ball | CCC CE CSA UL | Tubeaxial | 170 W | PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | -25 °C | 60 °C | IP44 | Round | 320 mm | ||||||||||||
ebm-papst Inc. | 1.1 A | Aluminum | Polypropylene (PP) | 230 VAC | Terminal Block | 3.4 kg | 7.6 lbs | Ball | UL | Tubeaxial | 125 W | 80 mm | 31.36 m³/min | 1120 CFM | 2700 RPM | PWM Control Speed Sensor (Tach) | 280 mm | 280 mm | -25 °C | 60 °C | IP54 - Dust Protected Water Resistant | ||||||||
ebm-papst Inc. | 0.72 A | Aluminum | Polypropylene (PP) | 230 VAC | Terminal Block | 2.1 kg | 4.6 lbs | Ball | CCC CE CSA | Tubeaxial | 83 W | 80 mm | 28 mł/min | 1000 CFM | 2330 RPM | PWM Control Speed Sensor (Tach) | 280 mm | 280 mm | -25 °C | 60 °C | IP54 - Dust Protected Water Resistant | ||||||||
 ebm-papst Inc. | 115 VAC | Terminal Block | 3.4 kg | 7.6 lbs | Ball | UL | Tubeaxial | 125 W | 80 mm | 31.36 m³/min | 1120 CFM | 2700 RPM | PWM Control Speed Sensor (Tach) | 280 mm | 280 mm | -25 °C | 60 °C | 129.5 Pa | 0.52 in H2O | IP54 - Dust Protected Water Resistant |
