9004-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

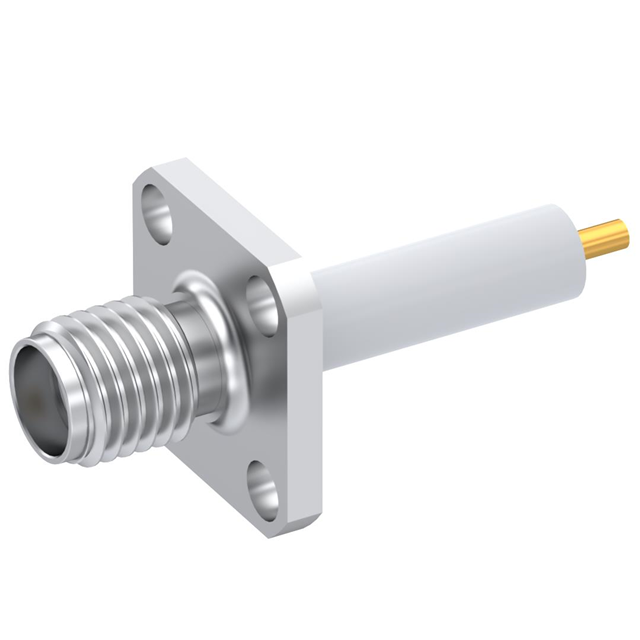

SMA F STR SQF
| Part | Mating Cycles | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Fastening Type | Connector Style | Mounting Type | Contact Termination | Shield Termination | Impedance | Mounting Feature | Features | Frequency - Max [Max] | Number of Ports | Center Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Threaded | SMA | Panel Mount | Solder | Solder | 50 Ohms | Flange | Extended Insulation | 18 GHz | 1 | Beryllium Copper | Female Socket Jack |
