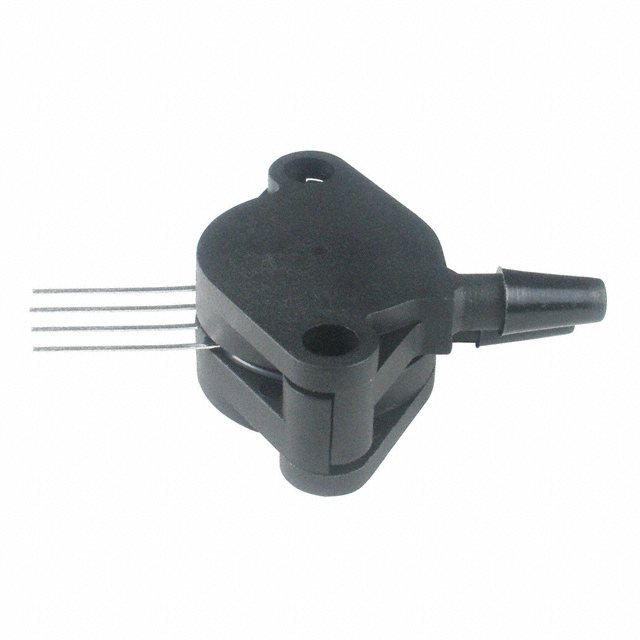

NSCSHHN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 150PSID 0.16" .2585V 4SIP

Part	Output Type	Accuracy	Mounting Type	Supplier Device Package	Package / Case	Maximum Pressure	Maximum Pressure	Output [Max]	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Port Size	Port Size	Port Size	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Style	Operating Pressure	Operating Pressure	Output
Honeywell Sensing and Productivity Solutions NSCSHHN150PDUNV	Wheatstone Bridge	0.25 %	Through Hole	4-SIP	4-SIP Dual Ports Same Side	1723.69 kPa	250 PSI	258.5 mV	Differential	85 °C	-40 °C	Board Mount	3.94 mm	Dual Male Tube	0.16 "	PC Pin	12 V	1.5 V	Barbed	1034.21 kPa	150 PSI

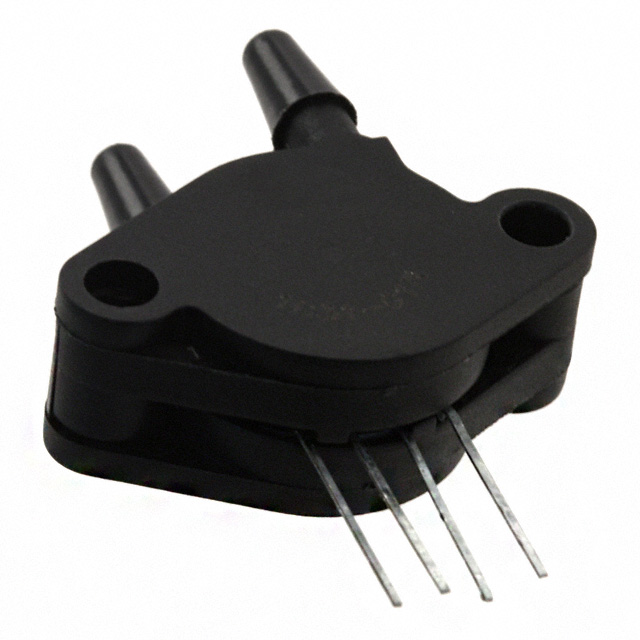

Honeywell Sensing and Productivity Solutions NSCSHHN001PDUNV	Wheatstone Bridge	0.25 %	Through Hole	4-SIP	4-SIP Dual Ports Same Side	68.95 kPa	10 PSI	65 mV	Differential	85 °C	-40 °C	Board Mount	3.94 mm	Dual Male Tube	0.16 "	PC Pin	12 V	1.5 V	Barbed			5V
Honeywell Sensing and Productivity Solutions NSCSHHN030PDUNV	Wheatstone Bridge	0.25 %	Through Hole	4-SIP	4-SIP Dual Ports Same Side	413.69 kPa	60 PSI	207 mV	Differential	85 °C	-40 °C	Board Mount	3.94 mm	Dual Male Tube	0.16 "	PC Pin	12 V	1.5 V	Barbed	206.84 kPa	30 PSI
Honeywell Sensing and Productivity Solutions NSCSHHN005PDUNV	Wheatstone Bridge	0.25 %	Through Hole	4-SIP	4-SIP Dual Ports Same Side			150 mV	Differential	85 °C	-40 °C	Board Mount	3.94 mm	Dual Male Tube	0.16 "	PC Pin	12 V	1.5 V	Barbed	34.47 kPa	5 PSI	(5V)
Honeywell Sensing and Productivity Solutions NSCSHHN010NDUNV	Wheatstone Bridge	0.25 %	Through Hole	4-SIP	4-SIP Dual Ports Same Side	84.72 kPa	12.29 PSI	78.5 mV	Differential	85 °C	-40 °C	Board Mount	3.94 mm	Dual Male Tube	0.16 "	PC Pin	6.5 V	2.7 V	Barbed	2.49 kPa	0.36 PSI
