R11305 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

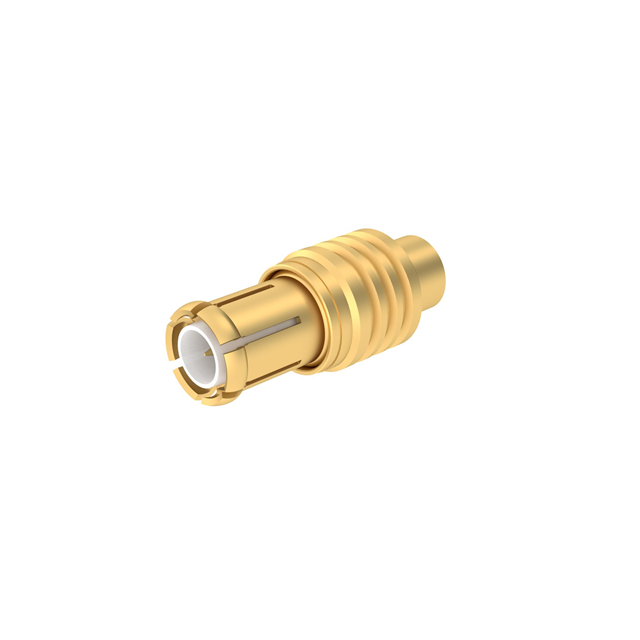

MCX M STR SD.085 C100
| Part | Center Contact Plating | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Material | Dielectric Material | Frequency - Max [Max] | Center Contact Material | Mounting Type | Cable Group | Connector Type | Shield Termination | Housing Color | Connector Style | Impedance | Number of Ports | Fastening Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 500 | -55 C | 115 °C | 250 V | Brass | Polytetrafluoroethylene (PTFE) | 6000 MHz | Brass | Free Hanging (In-Line) | RG-405 (.085" Semi Rigid) | Plug Male Pin | Solder | Gold | MCX | 50 Ohms | 1 | Snap-On | Solder |
 Radiall USA, Inc. | Gold | Gold | 500 | -55 C | 115 °C | 250 V | Brass | Polytetrafluoroethylene (PTFE) | 6000 MHz | Brass | Free Hanging (In-Line) | RG-405 (.085" Semi Rigid) | Plug Male Pin | Solder | Gold | MCX | 50 Ohms | 1 | Snap-On | Solder |
