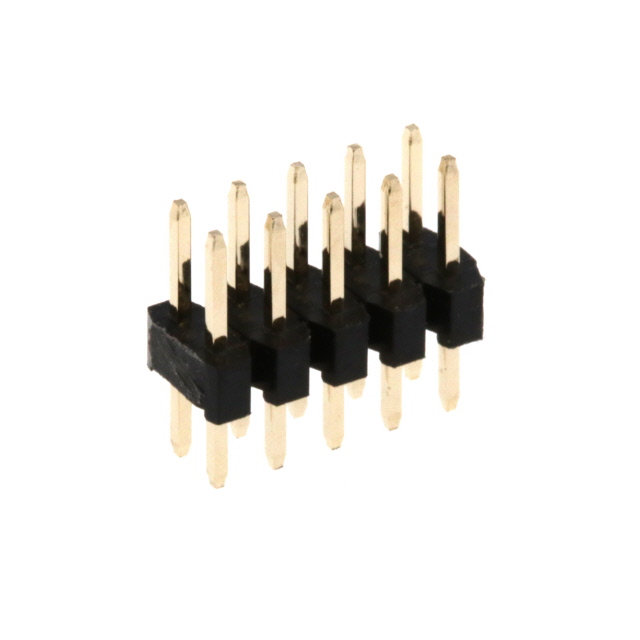

PR20C05VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, DUAL ROW, 2.00
| Part | Number of Positions Loaded | Insulation Color | Overall Contact Length | Overall Contact Length | Contact Shape | Contact Finish Thickness - Mating | Contact Length - Post [custom] | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Material | Shrouding | Connector Type | Number of Rows [custom] | Number of Positions | Contact Finish - Mating | Mounting Type | Termination | Insulation Material | Contact Type | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | All | Black | 0.343 in | 8.7 mm | Square | Flash | 0.11 in | 2.79 mm | -55 C | 105 ░C | 2 mm | 0.079 in | 2 mm | 0.079 in | Push-Pull | 0.079 " | 2 mm | Copper Zinc | Unshrouded | Header | 2 | 10 | Gold | Through Hole | Solder | Polyethylene | Male Pin | 0.154 in | 3.91 mm |
