66956 Series

Catalog

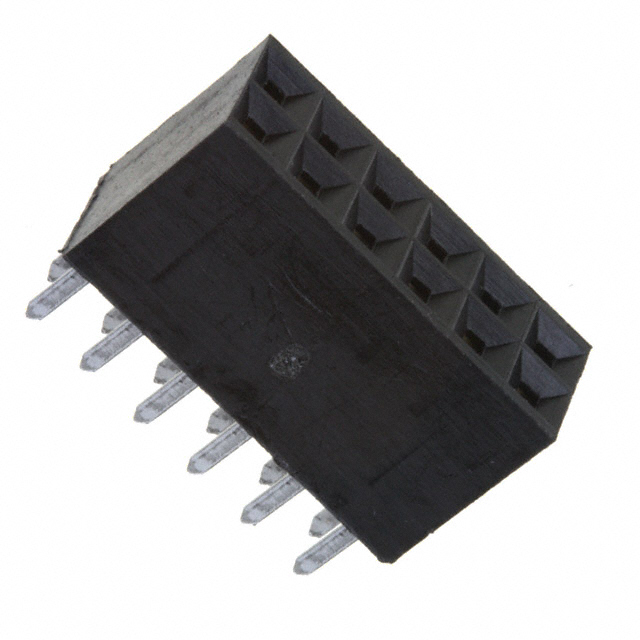

CONN RCPT 0.1 GOLD PCB

Part	Voltage Rating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch - Mating	Pitch - Mating	Applications	Number of Positions	Contact Shape	Material Flammability Rating	Insulation Material	Termination	Contact Material	Insulation Color	Contact Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
Amphenol ICC (FCI) 66956-011LF	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	22 positions	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-017LF	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	34	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-025	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	50	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-032	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	64	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-010	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	20	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-030LF	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	60	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-004	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	8	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-008LF	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications		Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám	16
Amphenol ICC (FCI) 66956-032LF	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	64	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66956-006LF	1250 VDC	0.118 in	3 mm	125 °C	-65 ░C	2	0.1 in	2.54 mm	Automotive General Purpose Industrial Medical Telecommunications	12	Square	UL94 V-0	Polyester Glass Filled	Solder	Brass	Black	Female Socket	All	Tin	Gold	Push-Pull	2.54 µm	100 µin	2.54 mm	0.1 in	Through Hole	8.25 mm	0.325 in	Receptacle	30 Áin	0.76 Ám
