Han M Series

Manufacturer: HARTING

Catalog

HEAVY DUTY POWER CONNECTORS HAN M 16 GASKET 5 MM NEOPRENE LIGHT GREY

Part	Accessory Type	For Use With/Related Products	Ingress Protection	Connector Type	Lock Location	Thread Size	Housing Color	Housing Finish	Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size	Features	Specifications
HARTING 09370009943	Gasket	Han® Housings

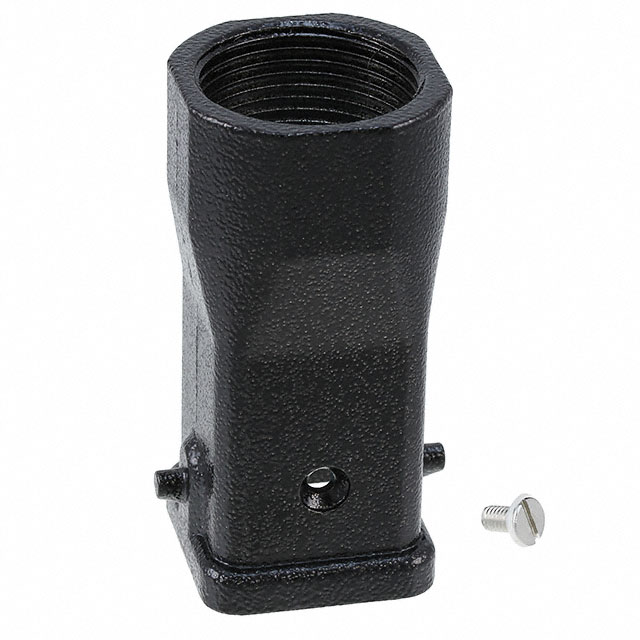

HARTING 19370031445			IP44	Hood	Locking Clip (1) on Base Bottom	M25	Black	Powder Coated	3 A	28 mm	1.102 "	27 mm	2.354 in	1.063 in	59.8 mm	Top Entry	125 °C	-40 C	Zinc Die Cast
HARTING 09370060301			IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (1) on Base Bottom		Black	Epoxy Powder Paint		43.4 mm	1.709 "	80 mm	1.165 in	3.15 "	29.6 mm	Bottom Entry	125 °C	-40 C	Aluminum Die Cast	6B
HARTING 19370160273			IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Base Bottom		Black	Powder Coated	16 B	57 mm	2.244 "	117 mm	3.181 in	4.606 in	80.8 mm	Side Entry	125 °C	-40 C	Aluminum Die Cast		Feed Through
HARTING 09370100522				Hood	Locking Clip (2) on Base Bottom	PG21				43 mm	1.693 "	72.6 mm	2.835 "	2.858 in	72 mm	Side Entry				10B
HARTING 19370060716
HARTING 09370061291			IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (1) on Base Bottom	PG16	Black	Powder Coated		52 mm	2.047 in	82 mm	2.028 in	3.228 in	51.5 mm	Side Entry	125 °C	-40 C	Aluminum Die Cast	6B	Feed Through
HARTING 19370160487			IP65 - Dust Tight Water Resistant	Hood	Locking Clip (1) on Hood	M32	Black	Powder Coated	16 B	43 mm	1.693 "	93.5 mm	2.992 in	3.681 in	76 mm	Top Entry	125 °C	-40 C	Aluminum Die Cast
HARTING 09370480544				Hood	Locking Clip (1) on Base Bottom	PG36			48 B	90 mm	3.543 "	132 mm	3.839 "	5.197 "	97.5 mm	Side Entry
HARTING 73000005350	Blanking Plug	Han® Housings																				M20 Thread
