C90-3102R Series
Manufacturer: Harwin Inc.
Beta
⌘K
2 POS. CIRCULAR PANEL MOUNT CONN. SOCKET CONTACT ROHS COMPLIANT: YES
| Part | Color | Primary Material | Contact Finish - Mating | Shell Material | Mounting Type | Orientation | Ingress Protection | Shell Finish | Applications | Current Rating (Amps) | Voltage Rating | Shell Size - Insert | Fastening Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Number of Positions | Contact Material | Insert Material | Mounting Feature | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 500 VAC 700 VDC | 12S-3 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Unshielded | 2 | Copper Alloy | Synthetic Rubber | Flange | 17.17 mm | 0.676 in |

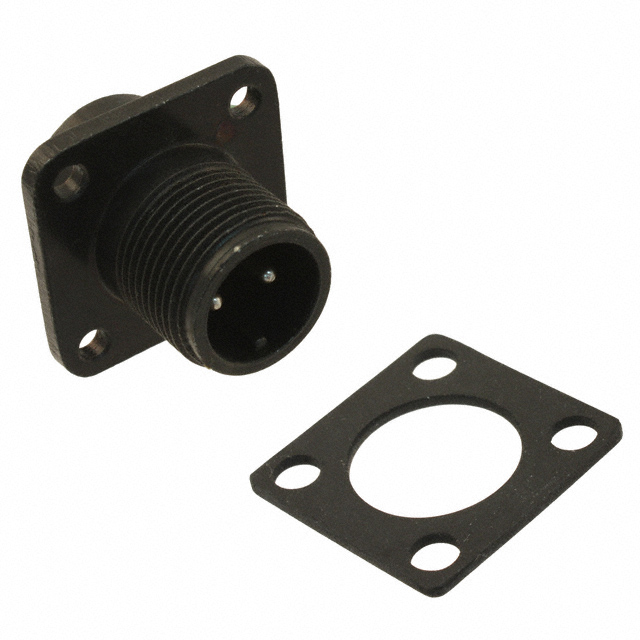

 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 500 VAC 700 VDC | 10SL-4 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Unshielded | 2 | Copper Alloy | Synthetic Rubber | Flange | 15.75 mm | 0.62 in |

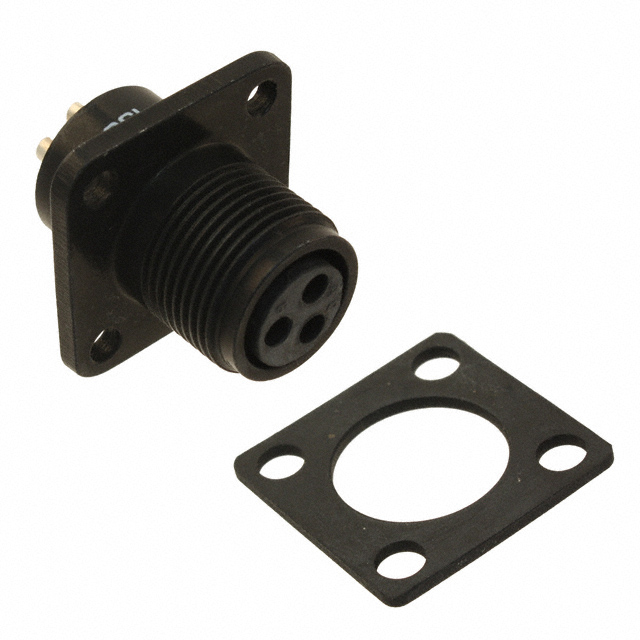

 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 500 VAC 700 VDC | 10SL-3 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Unshielded | 3 | Copper Alloy | Synthetic Rubber | Flange | 15.75 mm | 0.62 in |
 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 200 VAC 250 V | 14S-2 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Unshielded | 4 | Copper Alloy | Synthetic Rubber | Flange | 18.92 mm | 0.745 in |

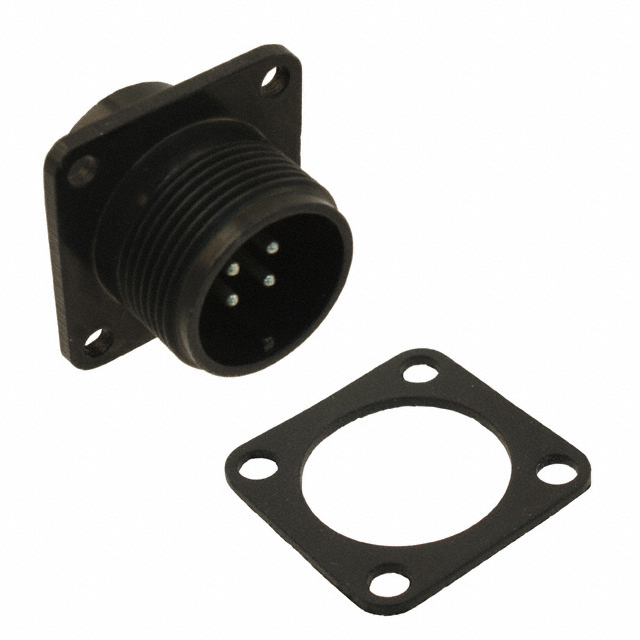

 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 200 VAC 250 V | 14S-2 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Unshielded | 4 | Copper Alloy | Synthetic Rubber | Flange | 18.92 mm | 0.745 in |

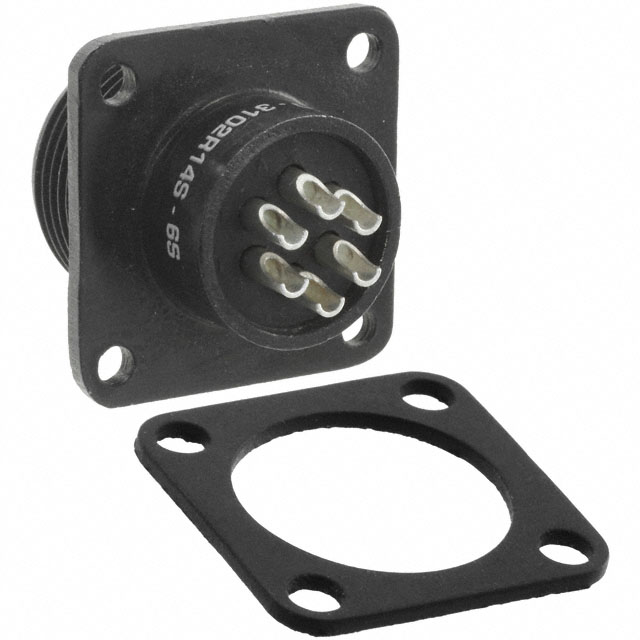

 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 200 VAC 250 V | 14S-6 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Unshielded | 6 | Copper Alloy | Synthetic Rubber | Flange | 18.92 mm | 0.745 in |
Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 500 VAC 700 VDC | 12S-3 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Unshielded | 2 | Copper Alloy | Synthetic Rubber | Flange | 17.17 mm | 0.676 in |
 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 200 VAC 250 V | 14S-6 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Unshielded | 6 | Copper Alloy | Synthetic Rubber | Flange | 18.92 mm | 0.745 in |

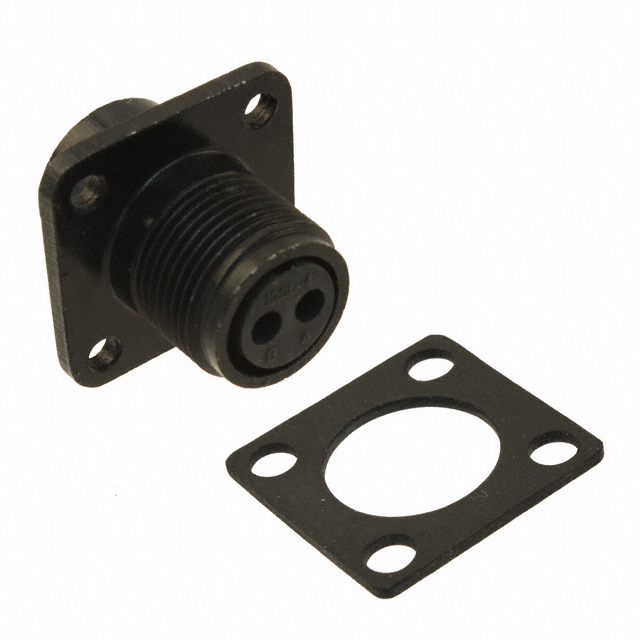

 Harwin Inc. | Black | Metal | Silver | Aluminum Alloy | Panel Mount | Keyed | IP67 - Dust Tight Waterproof | Black Zinc Cobalt Alloy | Automotive Industrial | 13 A | 500 VAC 700 VDC | 10SL-4 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Unshielded | 2 | Copper Alloy | Synthetic Rubber | Flange | 15.75 mm | 0.62 in |
