156.5610.5302 Series

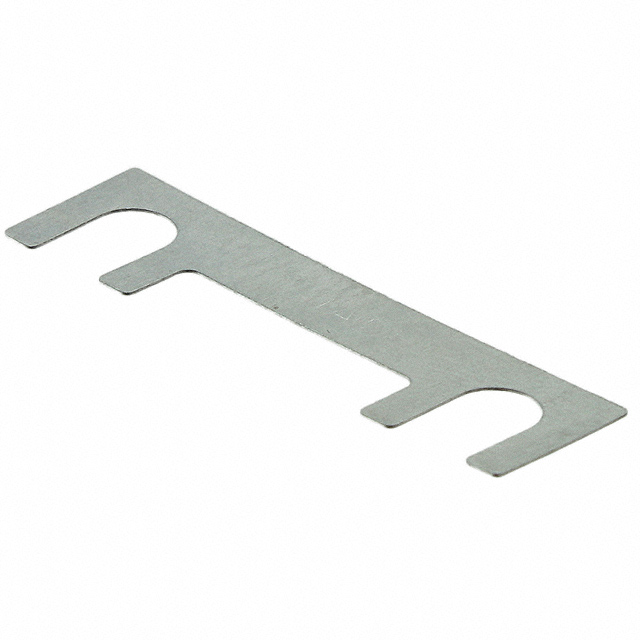

Fuse - Strip 30 w/o Housing 36VDC 30A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - Strip 30 w/o Housing 36VDC 30A

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Fuse Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products 156.5610.5302	1.614 "	1.08 mm	11 mm	0.043 "	0.433 in	41 mm	Bolt Mount	Metal Strip	Fuse Strip	30 A	125 °C	-40 °C	Lift Trucks	36 VDC

Catalog

Fuse - Strip 30 w/o Housing 36VDC 30A

Key Features

• Zinc alloy

• Complies with DIN 72581-2

Description

Use this 30 A special purpose fuse strip for a diesel vehicle to provide time-delayed protection to a wire rated to carry up to 36 V. Buy the holder separately. Do not install this high-current automotive fuse strip in an EV or gasoline-fueled vehicle.
