UH3 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

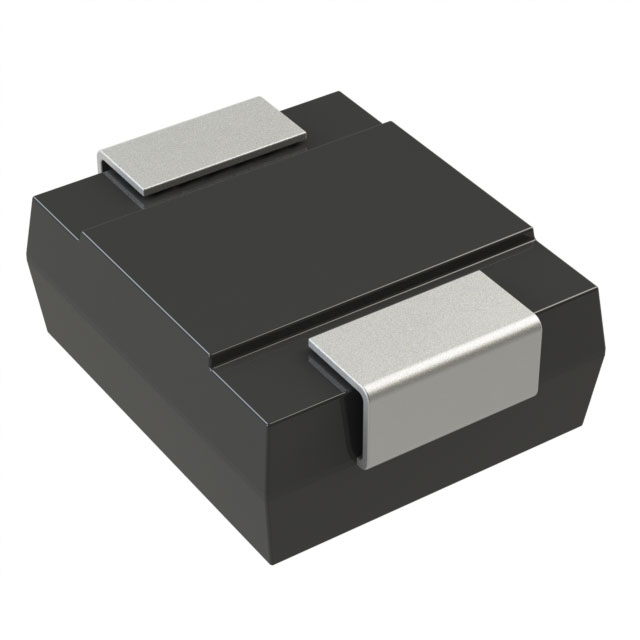

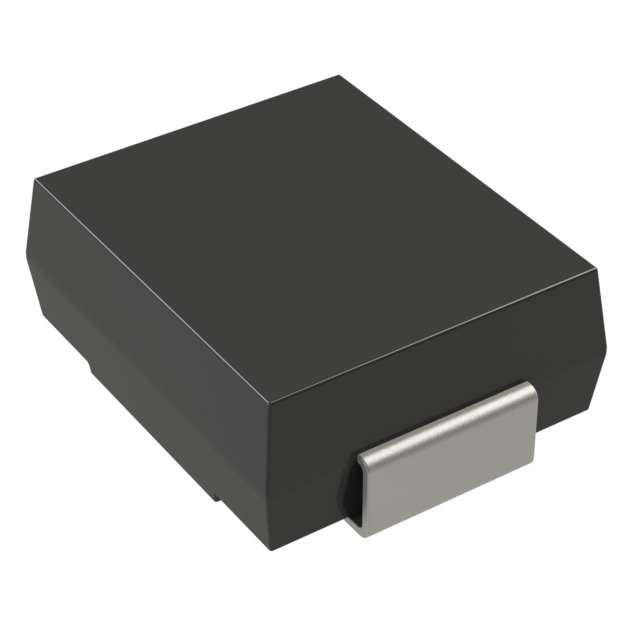

DIODE GEN PURP 100V 3A DO214AB

Part	Mounting Type	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Average Rectified (Io)	Technology	Qualification	Grade	Capacitance @ Vr, F
Vishay General Semiconductor - Diodes Division UH3B-E3/57T	Surface Mount	40 ns	5 µA	DO-214AB SMC	100 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard
Vishay General Semiconductor - Diodes Division UH3C-E3/9AT	Surface Mount	40 ns	5 µA	DO-214AB SMC		175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard
Vishay General Semiconductor - Diodes Division UH3BHE3_A/I	Surface Mount	40 ns	5 µA	DO-214AB SMC	100 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division UH3D-E3/9AT	Surface Mount	40 ns	5 µA	DO-214AB SMC	200 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard
Vishay General Semiconductor - Diodes Division UH3D-E3/57T	Surface Mount	40 ns	5 µA	DO-214AB SMC	200 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard
Vishay General Semiconductor - Diodes Division UH3B-M3/57T	Surface Mount	40 ns	5 µA	DO-214AB SMC	100 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns		Standard			42 pF
Vishay General Semiconductor - Diodes Division UH3C-M3/9AT	Surface Mount	40 ns	5 µA	DO-214AB SMC		175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns		Standard			42 pF
Vishay General Semiconductor - Diodes Division UH3C-M3/57T	Surface Mount	40 ns	5 µA	DO-214AB SMC		175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns		Standard			42 pF
Vishay General Semiconductor - Diodes Division UH3DHE3_A/I	Surface Mount	40 ns	5 µA	DO-214AB SMC	200 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division UH3DHE3_A/H	Surface Mount	40 ns	5 µA	DO-214AB SMC	200 V	175 ░C	-55 C	DO-214AB (SMC)	1.05 V	200 mA 500 ns	3 A	Standard	AEC-Q101	Automotive
