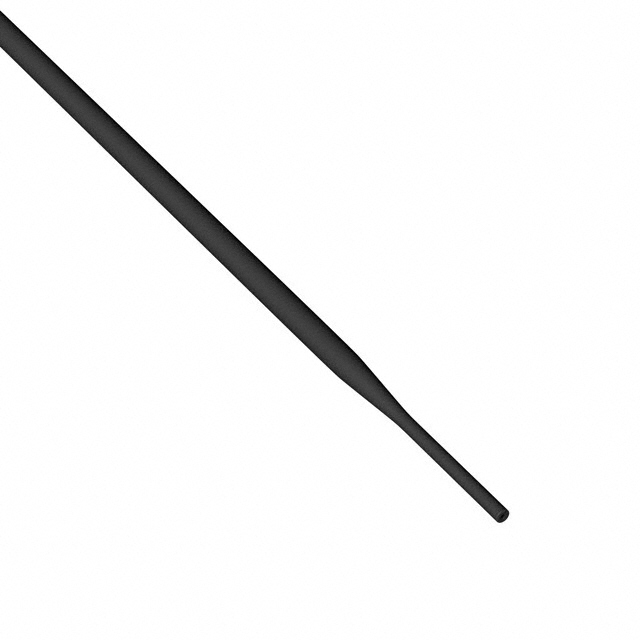

Q2-Z-1/8 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1/8"-48" BLACK 1=25PC

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Shrink Temperature	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Length	Length	Length
Qualtek Q2-Z-1/8-01-QB48IN-25	0.062 in	1.57 mm	Black	144 Months	0.43 mm	0.017 in	40 °C	14 °F	-50 °F	40 °C	1	2	Polyolefin (PO)	70 °C	Tubing Flexible	Flame Retardant	-55 C	125 °C	3.18 mm	0.125 in	4 ft	1.22 m
Qualtek Q2-Z-1/8-01-SS500FT	0.062 in	1.57 mm	Black	144 Months	0.43 mm	0.017 in	40 °C	14 °F	-50 °F	40 °C	1	2	Polyolefin (PO)	70 °C	Tubing Flexible	Flame Retardant	-55 C	125 °C	3.18 mm	0.125 in			152.4 m	500 ft
Qualtek Q2-Z-1/8-01-QB6IN-28	0.062 in	1.57 mm	Black	144 Months	0.43 mm	0.017 in	40 °C	14 °F	-50 °F	40 °C	1	2	Polyolefin (PO)	70 °C	Tubing Flexible	Flame Retardant	-55 C	125 °C	3.18 mm	0.125 in			152.4 mm	0.5 '	6 "
Qualtek Q2-Z-1/8-01-QX50FT	0.062 in	1.57 mm	Black	144 Months	0.43 mm	0.017 in	40 °C	14 °F	-50 °F	40 °C	1	2	Polyolefin (PO)	70 °C	Tubing Flexible	Flame Retardant	-55 C	125 °C	3.18 mm	0.125 in			15.2 m	50 ft
