09300061 Series
Manufacturer: HARTING
Beta
⌘K
CONNECTOR ACCESSORY, DOCKING FRAME, HARTING HAN SERIES SIZE 6B CONNECTORS, HAN SERIES
| Part | Includes | Frame Type | Gender | Material | Size | Style | Features | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Housing Color | Ingress Protection | Thread Size | Connector Type | Lock Location | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

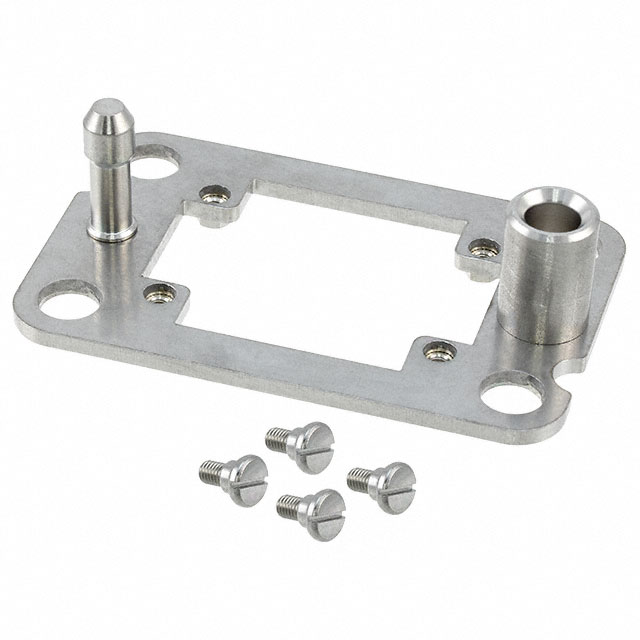

 HARTING | 1 Frame 4 Screws | Fixed Frame | Non-Gendered | Stainless Steel | 6B | |||||||||||||||||

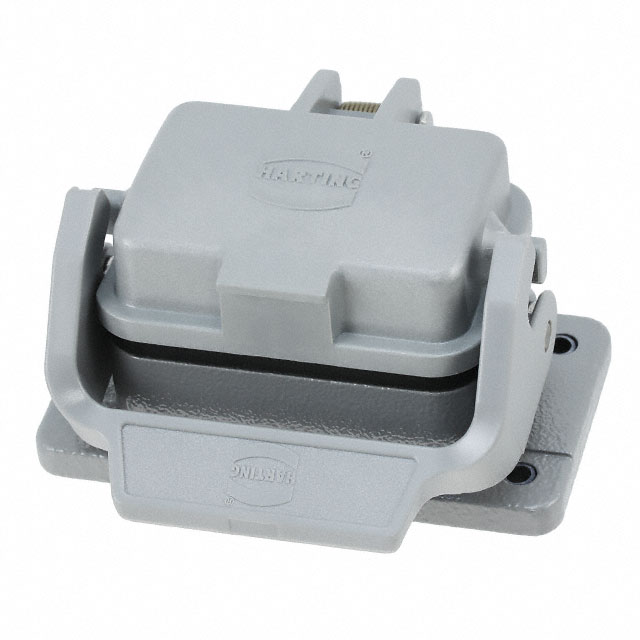

 HARTING | 6B | Bottom Entry Top or Bottom Entry | Cable to Cable | Aluminum Die Cast | 125 °C | -40 C | 60 mm | 2.201 in | 43 mm | 2.362 in | 55.9 mm | 1.693 " | Gray | IP65 - Dust Tight Water Resistant | PG13.5 | Hood - Coupling | Locking Clip (1) on Base Bottom | Powder Coated | ||||

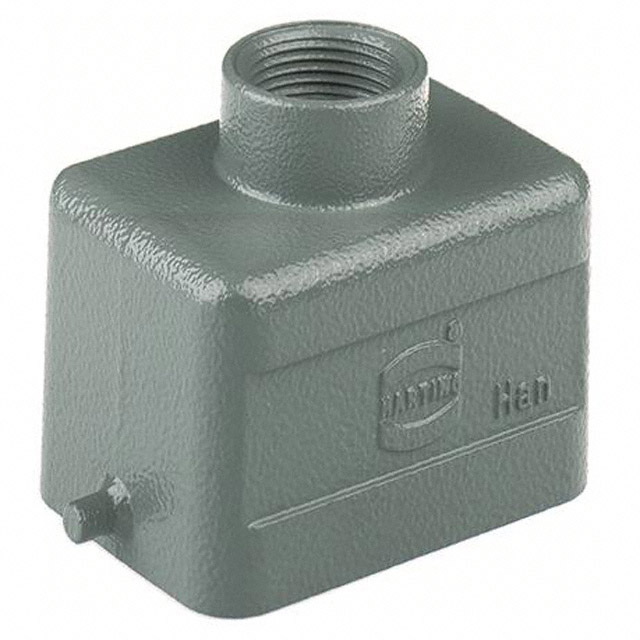

 HARTING | 6B | Top Entry | Aluminum Die Cast | 125 °C | -40 C | 60 mm | 2.106 " | 43 mm | 2.362 in | 53.5 mm | 1.693 " | Gray | IP65 - Dust Tight Water Resistant | PG13.5 | Hood | Locking Clip (1) on Base Bottom | Powder Coated | |||||

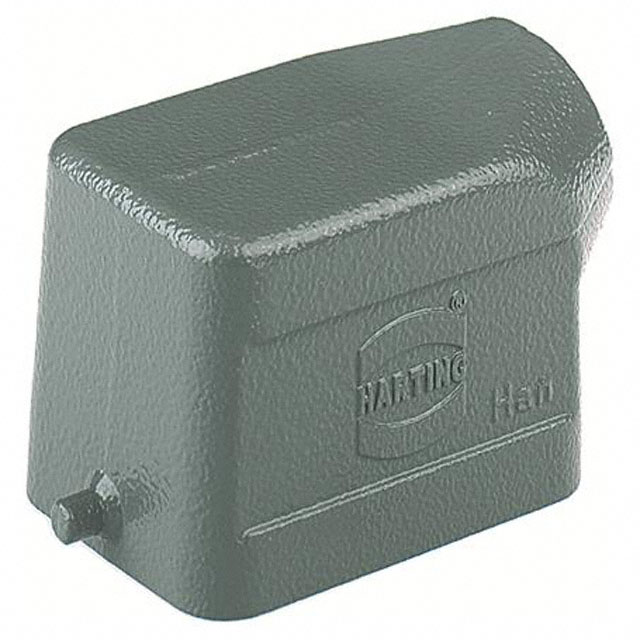

 HARTING | 6B | Side Entry | Aluminum Die Cast | 125 °C | -40 C | 60 mm | 2.016 " | 43 mm | 2.362 in | 51.2 mm | 1.693 " | Gray | IP65 - Dust Tight Water Resistant | PG16 | Hood | Locking Clip (1) on Base Bottom | Powder Coated | |||||

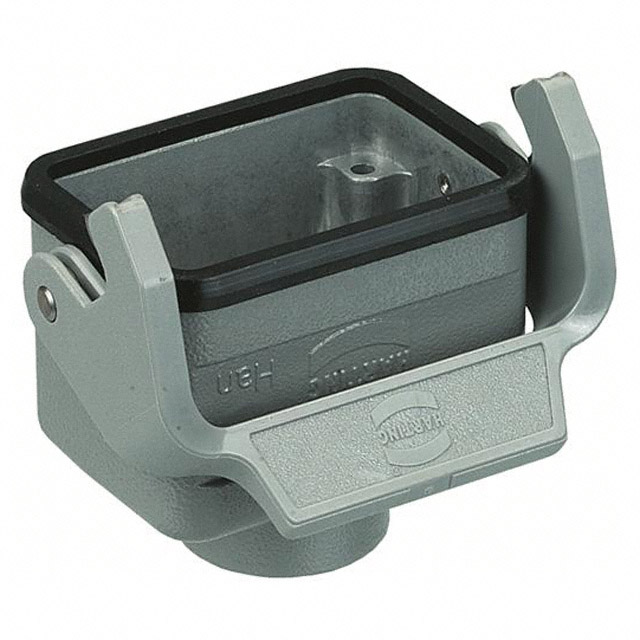

 HARTING | 6B | Bottom Entry | Cover | Aluminum Die Cast | 125 °C | -40 C | 85 mm | 1.189 " | 48.4 mm | 3.346 in | 30.2 mm | 1.906 " | Gray | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Locking Clip (1) on Base Bottom | Powder Coated |
