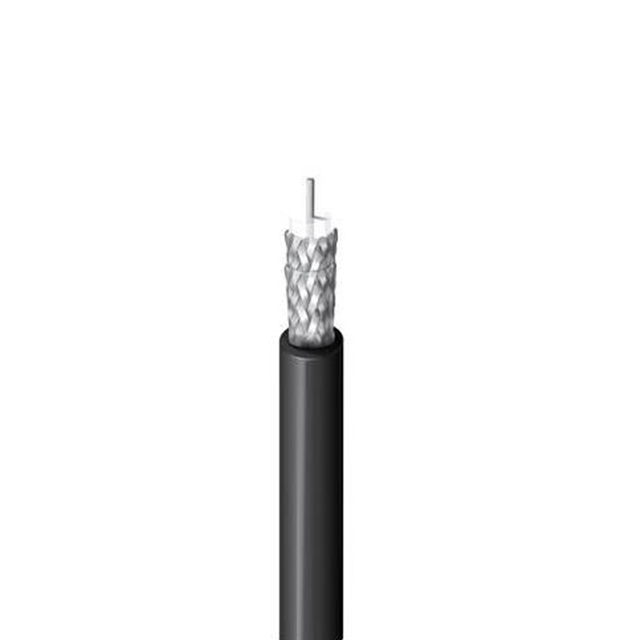

9273 Series

Catalog

M17/167-00001 COAX

Part	Operating Temperature [Max]	Operating Temperature [Min]	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Shield Material	Conductor Material	Impedance	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Conductor Strand	Length [x]	Length [x]	Cable Group	Jacket Color	Shield Type	Wire Gauge	Length	Length
Belden Inc. 9273 0101000	60 °C	-40 C	66	0.117 in	2.97 mm	95 %	Copper Silver Coated	Copper Silver Coated	50 Ohms	RF Signal	5.38 mm	0.212 in	Poly-Vinyl Chloride (PVC)	Coaxial	Solid	304.8 m	1000 ft	RG-223	Black	Double Braid	19 AWG
Belden Inc. 9273 010500	60 °C	-40 C	66	0.117 in	2.97 mm	95 %	Copper Silver Coated	Copper Silver Coated	50 Ohms	RF Signal	5.38 mm	0.212 in	Poly-Vinyl Chloride (PVC)	Coaxial	Solid	152.4 m	500 ft	RG-223	Black	Double Braid	19 AWG
Belden Inc. 9273 010100	60 °C	-40 C	66	0.117 in	2.97 mm	95 %	Copper Silver Coated	Copper Silver Coated	50 Ohms	RF Signal	5.38 mm	0.212 in	Poly-Vinyl Chloride (PVC)	Coaxial	Solid			RG-223	Black	Double Braid	19 AWG	100 '	30.48 m
