633948 Series
Manufacturer: Belden Inc.
Beta
⌘K

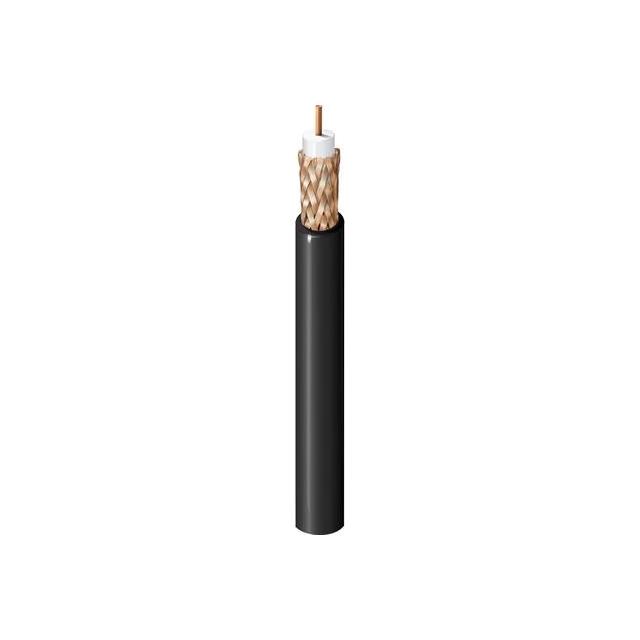

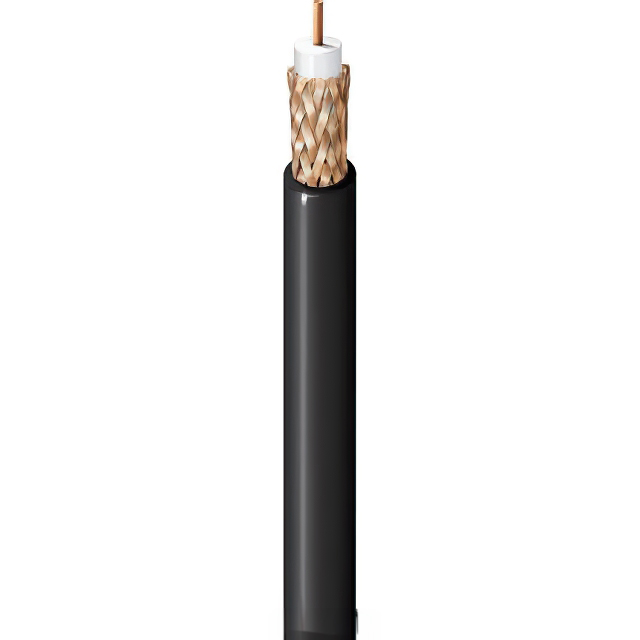

COAX RG-6/U PLENUM COAX
| Part | Shield Material | VoP, Velocity of Propagation | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Conductor Material | Impedance | Jacket Color | Shield Type | Cable Group | Jacket (Insulation) Material | Wire Gauge | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Length [x] | Length [x] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 83 | 95 % | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | Copper Bare | 75 Ohms | Natural | Braid | RG-6 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG | CCTV | 5.79 mm | 0.228 in | Solid | 152.4 m | 500 ft | Coaxial - Plenum |
Belden Inc. | Copper Bare | 83 | 95 % | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | Copper Bare | 75 Ohms | Violet | Braid | RG-6 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG | CCTV | 5.79 mm | 0.228 in | Solid | 304.8 m | 1000 ft | Coaxial - Plenum |
 Belden Inc. | Copper Bare | 83 | 95 % | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | Copper Bare | 75 Ohms | Natural | Braid | RG-6 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG | CCTV | 5.79 mm | 0.228 in | Solid | 152.4 m | 500 ft | Coaxial - Plenum |
 Belden Inc. | Copper Bare | 83 | 95 % | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | Copper Bare | 75 Ohms | Yellow | Braid | RG-6 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG | CCTV | 5.79 mm | 0.228 in | Solid | 304.8 m | 1000 ft | Coaxial - Plenum |
Belden Inc. | Copper Bare | 83 | 95 % | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | Copper Bare | 75 Ohms | Gray | Braid | RG-6 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG | CCTV | 5.79 mm | 0.228 in | Solid | 304.8 m | 1000 ft | Coaxial - Plenum |
