LCD250 Series
Manufacturer: Panduit Corp
Beta
⌘K
250 KCMIL CABLE, 3/8" BOLT HOLE, 1" HOLE SPACING ROHS COMPLIANT: YES
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Finish | Mounting Type | Termination | Terminal Style | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Wire Gauge | Wire Gauge | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Terminal Type | Color | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

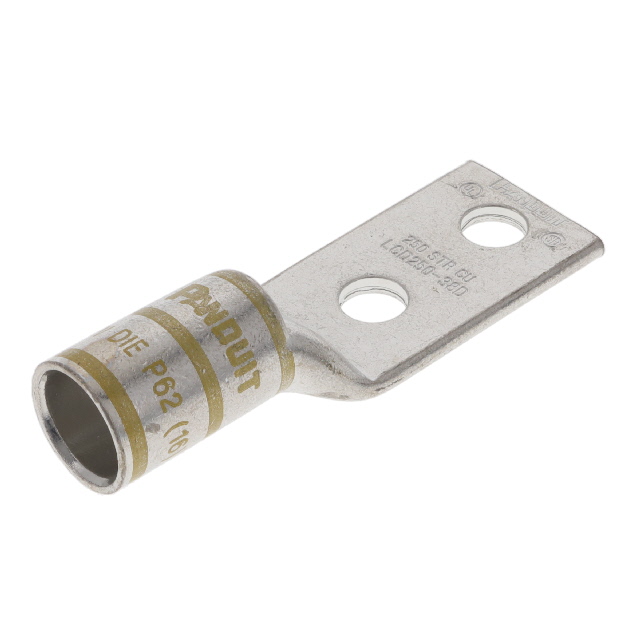

 Panduit Corp | 10.41 mm | 0.41 " | 19.56 mm | 0.77 in | Copper | 16 mm | 0.63 in | Electro-Tin | Free Hanging (In-Line) | Barrel Crimp | Two Stud Holes | 89.92 mm | 3.54 in | 0.14 in | 3.56 mm | 250 kcmil | 250 kcmil | 29.72 mm | 1.17 " | Non-Insulated | Rectangular Tongue | Yellow | 0.375 Stud |

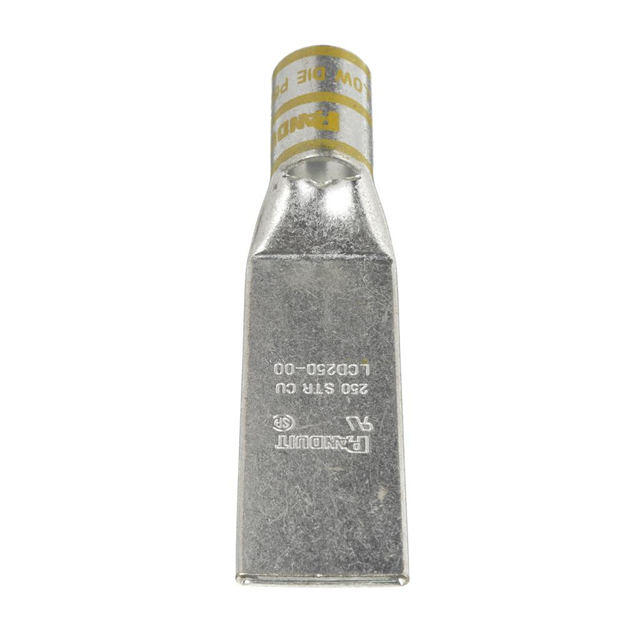

 Panduit Corp | 19.56 mm | 0.77 in | Copper | 16 mm | 0.63 in | Electro-Tin | Free Hanging (In-Line) | Barrel Crimp | No Stud Hole | 118.87 mm | 4.68 in | 0.14 in | 3.56 mm | 250 kcmil | 250 kcmil | 29.72 mm | 1.17 " | Non-Insulated | Rectangular Tongue | Yellow |
