10-462 Series
Manufacturer: Coax Connectors Ltd
Catalog

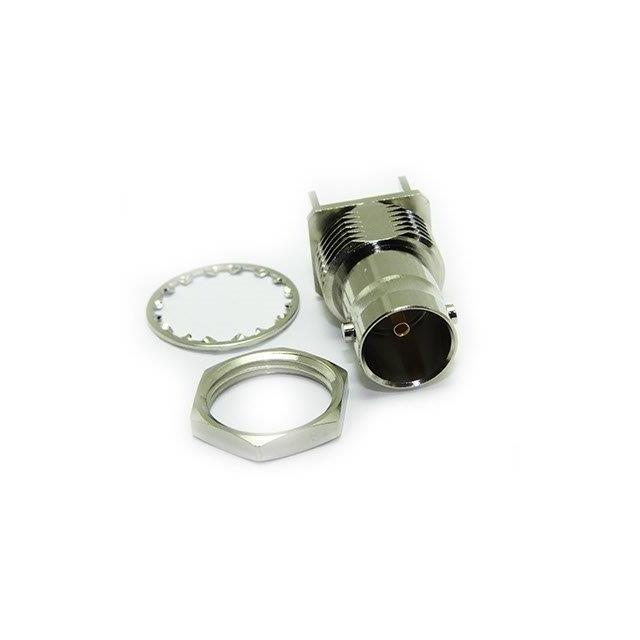

BNC END LAUNCH BULKHEAD JACK TRU
| Part | Body Material | Dielectric Material | Operating Temperature (Max) | Operating Temperature (Min) | Center Contact Plating | Body Finish | Mating Cycles | Contact Termination | Number of Ports | Connector Style | Mounting Feature | Center Contact Material | Frequency - Max | Mounting Type | Fastening Type | Impedance | Ingress Protection Description | Ingress Protection IP Rating | Connector Type | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coax Connectors Ltd | Brass | Polytetrafluoroethylene (PTFE) | 155 °C | -55 °C | Gold | Nickel | 250 cycles | Solder | 1 | BNC | Bulkhead Front Side Nut | Phosphor Bronze | 3 GHz | Panel Mount Through Hole | Bayonet Lock | 75 Ohm | Dust Tight Water Resistant | IP64 | Female Socket Jack | Silver | Solder |
