62AT2 Series

Catalog

TOGGLE SWITCHES SPDT 2POS QC TERM STD LVR TOGGLE SW

Part	Electrical Life	Illumination	Bushing Thread	Actuator Length [x]	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Circuit	Voltage Rating - AC

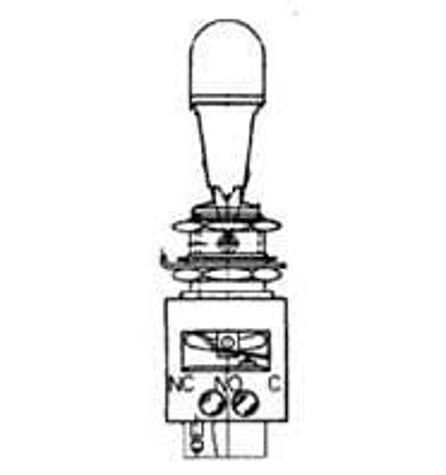

Honeywell Sensing and Productivity Solutions 62AT22-3	6000 Cycles	Non-Illuminated	15/32-32	17.27 mm	Quick Connect	0.058 in	12.4 mm	Panel Mount	28 V	7 A	-55 C	85 °C	Standard Round	On-On	DPDT	115 V
Honeywell Sensing and Productivity Solutions 62AT22-82	6000 Cycles	Non-Illuminated	15/32-32	17.27 mm	Quick Connect	0.058 in	12.4 mm	Panel Mount	28 V	7 A	-55 C	85 °C	Standard Round	On-Mom	DPDT	115 V
Honeywell Sensing and Productivity Solutions 62AT22-1A	6000 Cycles	Non-Illuminated	15/32-32	30 mm	Quick Connect	0.058 in	12.4 mm	Panel Mount	28 V	7 A	-55 C	85 °C	Locking Lever	On-Off-On	DPDT	115 V
Honeywell Sensing and Productivity Solutions 62AT22-3D	6000 Cycles	Non-Illuminated	15/32-32	30 mm	Quick Connect	0.058 in	12.4 mm	Panel Mount	28 V	7 A	-55 C	85 °C	Locking Lever	On-On	DPDT	115 V
