0067-2 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature (Max)	Operating Temperature (Min)	Socket Depth	Pin Hole Diameter	Flange Diameter	Contact Finish Thickness	Contact Material	Termination	Mounting Hole Diameter	Contact Finish	Tail Diameter	Tail Diameter Shape	Tail Type	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Length - Overall
Mill-Max Manufacturing Corp. 0067-2-17-80-30-27-02-0	125 °C	-55 °C	0.162 in	0.043 in	0.062 in	30 µin	Beryllium Copper	Press-Fit	0.057 in	Gold	0.025 in	Square	Wire Wrap	0.015 in	0.025 in	0.56 in
Mill-Max Manufacturing Corp. 0067-2-17-80-30-84-02-0	125 °C	-55 °C	0.162 in	0.043 in	0.062 in	100 µin	Beryllium Copper	Press-Fit	0.057 in	Tin	0.025 in	Square	Wire Wrap	0.015 in	0.025 in	0.56 in
Mill-Max Manufacturing Corp. 0067-2-17-80-30-14-02-0	125 °C	-55 °C	0.162 in	0.043 in	0.062 in	10 Ąin	Beryllium Copper	Press-Fit	0.057 in	Gold	0.025 in	Square	Wire Wrap	0.015 in	0.025 in	0.56 in

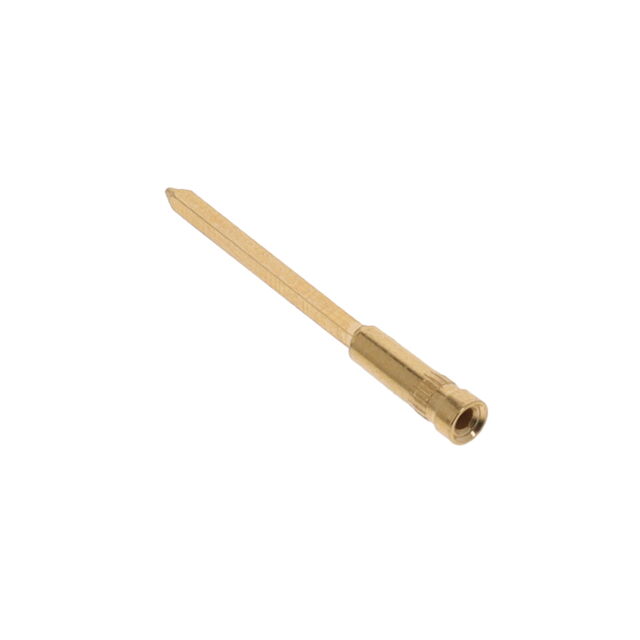

Mill-Max Manufacturing Corp. 0067-2-17-15-30-27-02-0	125 °C	-55 °C	0.162 in	0.043 in	0.062 in	30 µin	Beryllium Copper	Press-Fit	0.057 in	Gold	0.025 in	Square	Wire Wrap	0.015 in	0.025 in	0.56 in
Mill-Max Manufacturing Corp. 0067-2-17-15-30-14-02-0	125 °C	-55 °C	0.162 in	0.043 in	0.062 in	10 Ąin	Beryllium Copper	Press-Fit	0.057 in	Gold	0.025 in	Square	Wire Wrap	0.015 in	0.025 in	0.56 in
