RAY-101 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

GROUND BRAID TUBE 0.49"DIA METER

Part	Length	Type	Length	Length	Number of Carriers	Material	Wire Gauge - Ends	Size, Supplied [diameter]	Size, Supplied [diameter]	Spool Size	Spool Size	Spool Size [custom]	Spool Size [custom]	Size, Supplied
TE Connectivity Aerospace, Defense and Marine RAY-101-12.5(100)	Enter Number of Meters in Order Quantity	Tubular	1 m 5 m 25 m 50 m	3.3 ft 16.4 ' 82 ft 164 ft	36	Copper Tin Plated	36 AWG	12.5 mm	0.492 in	328.1 '	100 m

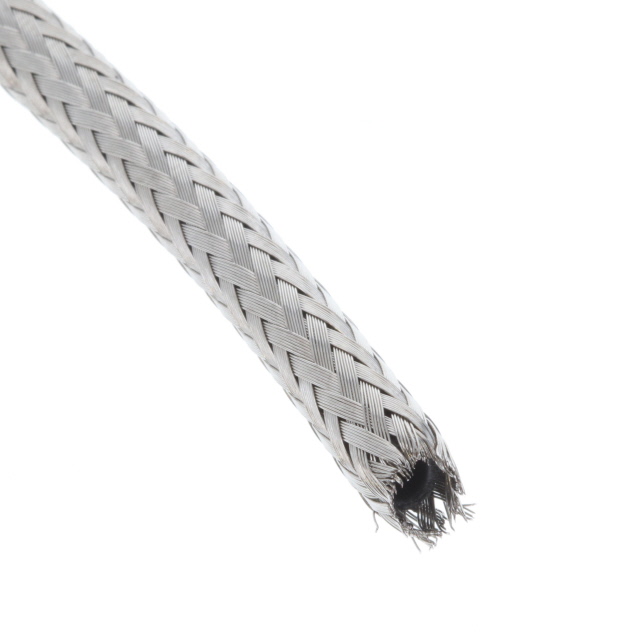

TE Connectivity Aerospace, Defense and Marine RAY-103-3.0(100)	Enter Number of Meters in Order Quantity	Tubular	1 m 25 m 50 m	3.3 ft 82 ft 164 ft	16	Copper Nickel Plated	38 AWG	3 mm	0.118 in			1312.33 ft	400 m
TE Connectivity Aerospace, Defense and Marine RAY-103-6.0(10)		Tubular			24	Copper Nickel Plated	36 AWG	6 mm	0.236 in
TE Connectivity Aerospace, Defense and Marine RAY-103-10.0(100)	Enter Number of Meters in Order Quantity	Tubular	1 m 25 m 50 m	3.3 ft 82 ft 164 ft	36	Copper Nickel Plated	36 AWG	10 mm	0.394 in
TE Connectivity Aerospace, Defense and Marine RAY-103-7.5(100)	Enter Number of Meters in Order Quantity	Tubular	1 m 5 m 25 m 50 m	3.3 ft 16.4 ' 82 ft 164 ft	24	Copper Nickel Plated	36 AWG		0.295 in	984.3 ft	300 m			7.5 mm
TE Connectivity Aerospace, Defense and Marine RAY-101-12.5(10)		Tubular			36	Copper Tin Plated	36 AWG	12.5 mm	0.492 in
TE Connectivity Aerospace, Defense and Marine RAY-103-20.0(10)		Tubular			48	Copper Nickel Plated	36 AWG	20 mm	0.787 in
TE Connectivity Aerospace, Defense and Marine RAY-101-7.5(100)	Enter Number of Meters in Order Quantity	Tubular	1 m 5 m 25 m 50 m	3.3 ft 16.4 ' 82 ft 164 ft	24	Copper Tin Plated	36 AWG		0.295 in			1312.33 ft	400 m	7.5 mm
TE Connectivity Aerospace, Defense and Marine RAY-101-7.5(10)		Tubular			24	Copper Nickel Plated	36 AWG		0.295 in					7.5 mm
TE Connectivity Aerospace, Defense and Marine RAY-103-6.0(100)	Enter Number of Meters in Order Quantity	Tubular	5 m 25 m 50 m	16.4 ' 82 ft 164 ft	24	Copper Nickel Plated	36 AWG	6 mm	0.236 in			1312.33 ft	400 m
