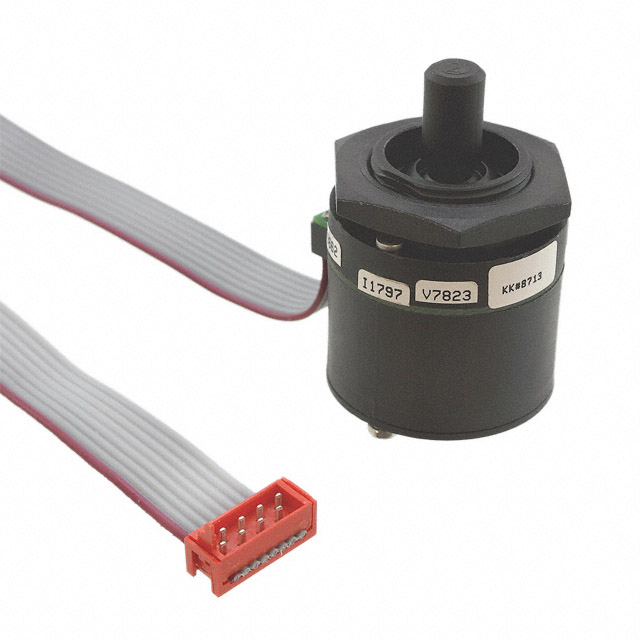

60AD18 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH JOYSTICK FLATTED 10MA 5V
| Part | Mechanical Life | Operating Force | Switch Function | Output | Current Rating (Amps) | Voltage - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Type | Type | Termination Style | Panel Cutout Dimensions [diameter] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 500000 Cycles | 800 gf | 360° Rotational 8-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V |
 Grayhill Inc. | 500000 Cycles | 800 gf | 360° Rotational 8-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V |
Grayhill Inc. | 500000 Cycles | 360° Rotational 8-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V | |
 Grayhill Inc. | 500000 Cycles | 800 gf | 360° Rotational 4-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V |
Grayhill Inc. | 500000 Cycles | 800 gf | 360° Rotational 4-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V |
Grayhill Inc. | 500000 Cycles | 800 gf | 360° Rotational 8-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V |
Grayhill Inc. | 500000 Cycles | 360° Rotational 4-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V | |
Grayhill Inc. | 500000 Cycles | 800 gf | 360° Rotational 8-Way Directional Center Select | Digital (Mechanical Switch Pulse) | 10 mA | 5 VDC | 85 °C | -40 C | Flatted (6.35mm Dia) | Panel Mount | 3 Shelves | Joystick | Cable with Connector | 17.25 mm | 5 V |
