5M80Z Series

Manufacturer: Altera

Catalog

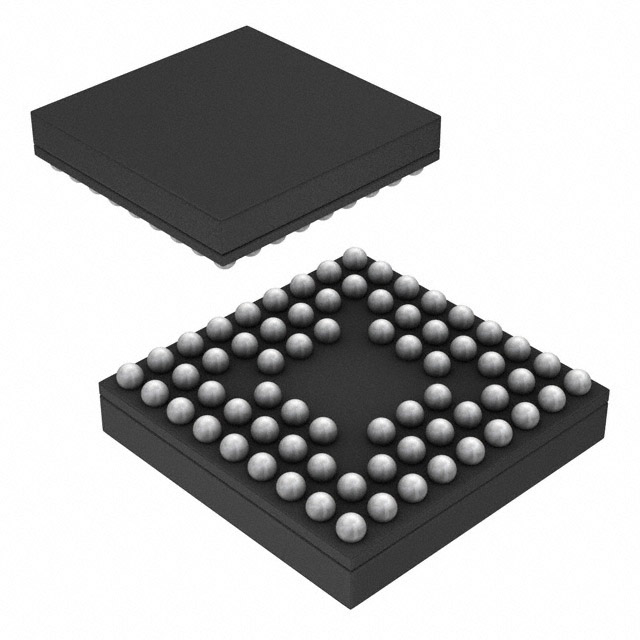

CPLD MAX® V FAMILY 64 MACRO CELLS 118.3MHZ 1.8V 64-PIN MICRO FBGA TRAY

Part	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Delay Time tpd(1) Max [Max]	Number of I/O	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Number of Macrocells	Programmable Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Logic Elements/Blocks	Package / Case
Altera 5M80ZM64C5N	1.71 V	1.89 V	7.5 ns	30	64-MBGA	4.5	4.5	64	In System Programmable	0 °C	85 °C	Surface Mount	80
Altera 5M80ZT100I5N	1.71 V	1.89 V	7.5 ns	79 I/O	100-TQFP (14x14)			64	In System Programmable	-40 °C	100 °C	Surface Mount	80	100-TQFP
Altera 5M80ZM68I5N	1.71 V	1.89 V	7.5 ns	52	68-MBGA (5x5)			64	In System Programmable	-40 °C	100 °C	Surface Mount	80	68-TFBGA
Altera 5M80ZM64C5N	1.71 V	1.89 V	7.5 ns	30	64-MBGA	4.5	4.5	64	In System Programmable	0 °C	85 °C	Surface Mount	80
Altera 5M80ZT100I5N	1.71 V	1.89 V	7.5 ns	79 I/O	100-TQFP (14x14)			64	In System Programmable	-40 °C	100 °C	Surface Mount	80	100-TQFP
Altera 5M80ZE64C5N	1.71 V	1.89 V	7.5 ns	54	64-EQFP (7x7)			64	In System Programmable	0 °C	85 °C	Surface Mount	80	64-TQFP Exposed Pad
Altera 5M80ZM64C4N	1.71 V	1.89 V	7.5 ns	30	64-MBGA	4.5	4.5	64	In System Programmable	0 °C	85 °C	Surface Mount	80
Altera 5M80ZM64C4N	1.71 V	1.89 V	7.5 ns	30	64-MBGA	4.5	4.5	64	In System Programmable	0 °C	85 °C	Surface Mount	80
Altera 5M80ZM68I5N	1.71 V	1.89 V	7.5 ns	52	68-MBGA (5x5)			64	In System Programmable	-40 °C	100 °C	Surface Mount	80	68-TFBGA
