R12829 Series

Catalog

BMA / STRAIGHT 2 HOLE FLANGE FLO

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Dielectric Material	Mating Cycles	Body Material	Center Contact Material	Number of Ports	Connector Type	Impedance	Contact Termination	Shield Termination	Mounting Type	Mounting Feature	Fastening Type	Connector Style	Housing Color	Frequency - Max [Max]	Cable Group
Radiall USA, Inc. R128292727	350 VDC	-40 C	105 ░C	White Bronze	Gold	Polytetrafluoroethylene (PTFE)	1000	Brass	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Silver	22 GHz	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R128292700W	350 VDC	-65 ░C	165 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	1000	Stainless Steel	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Gold	22 GHz	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R128295700W	350 VDC	-40 C	100 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	1000	Stainless Steel	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Gold	22 GHz
Radiall USA, Inc. R128295727	350 VDC	-40 C	100 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	1000	Brass	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Gold	22 GHz

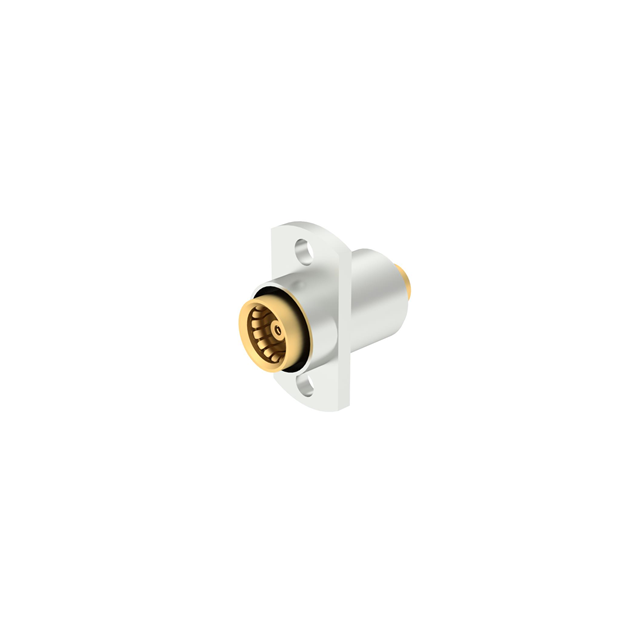

Radiall USA, Inc. R128295700	350 VDC	-40 C	100 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	1000	Stainless Steel	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Gold	22 GHz
Radiall USA, Inc. R128293702W	350 VDC	-65 ░C	105 ░C	White Bronze	Gold		1000	Brass	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Bulkhead - Front Side Nut	Snap-On	BMA	Silver	18 GHz	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R128292727W	350 VDC	-40 C	105 ░C	White Bronze	Gold	Polytetrafluoroethylene (PTFE)	1000	Brass	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Silver	22 GHz	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R128293702	350 VDC	-65 ░C	105 ░C	White Bronze	Gold		1000	Brass	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Bulkhead - Front Side Nut	Snap-On	BMA	Silver	18 GHz	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R128294700W	500 V	-40 C	105 ░C	Gold	Gold	Polytetrafluoroethylene (PTFE)	1000	Stainless Steel	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount		Snap-On	BMA	Gold	22 GHz	RG-405 (.085" Semi Rigid)

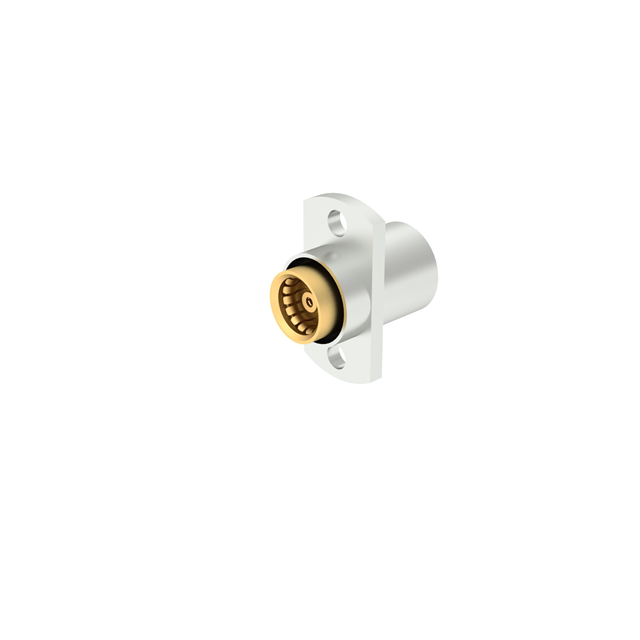

Radiall USA, Inc. R128292700	350 VDC	-65 ░C	165 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	1000	Stainless Steel	Beryllium Copper	1	Female Socket Jack	50 Ohms	Solder	Solder	Panel Mount	Flange	Snap-On	BMA	Gold	22 GHz	RG-405 (.085" Semi Rigid)
