DMN3022LDG

DMN3022LDG Series

30V SYNCHRONOUS N-Channel Enhancement Mode MOSFET

Manufacturer: Diodes Inc

Catalog

30V SYNCHRONOUS N-Channel Enhancement Mode MOSFET

Catalog

30V SYNCHRONOUS N-Channel Enhancement Mode MOSFET

Part	Supplier Device Package	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs	Technology	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Mounting Type	Configuration

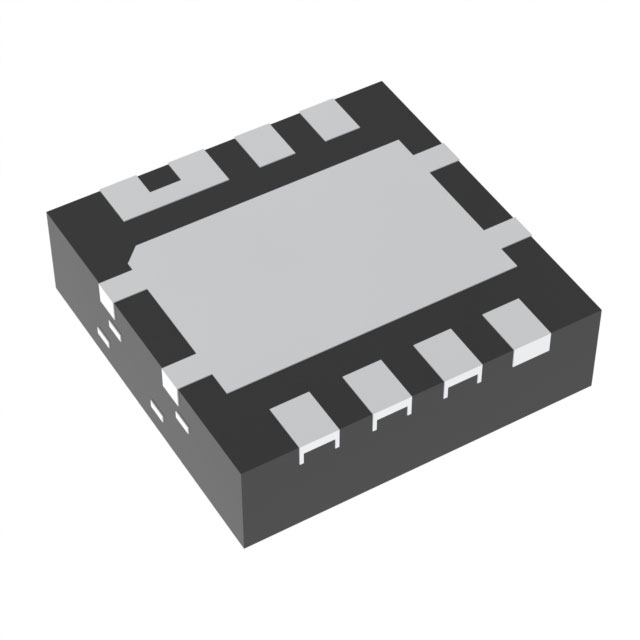

Diodes Inc DMN3022LDG-7	PowerDI3333-8 (Type D)	30 V	7.6 A 15 A	1.96 W	-55 °C	150 °C	8-PowerLDFN	481 pF 996 pF	8 nC	3.7 nC	MOSFET (Metal Oxide)	1.2 V 2.1 V	8 mOhm 22 mOhm	Surface Mount	2 N-Channel (Dual)
Diodes Inc DMN3022LFG-7	PowerDI3333-8 (Type D)	30 V	7.6 A 15 A	1.96 W	-55 °C	150 °C	8-PowerLDFN	481 pF 996 pF	8 nC	3.7 nC	MOSFET (Metal Oxide)	1.2 V 2.1 V	8 mOhm 22 mOhm	Surface Mount	2 N-Channel (Dual)
