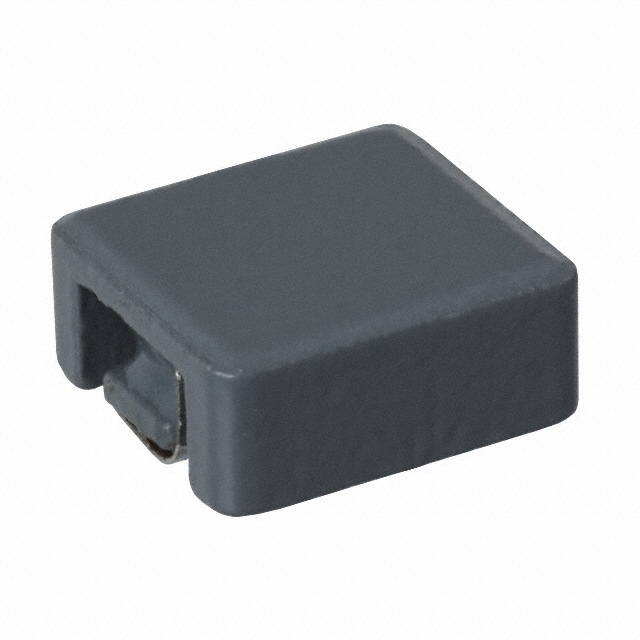

PM7232S Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 1.5UH 9A 15 MOHM SMD
| Part | Inductance | Shielding | Inductance Frequency - Test | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Type | Package / Case | Material - Core | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Tolerance | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.5 µH | Shielded | 100 kHz | 14 A | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 0.126 in | 3.2 mm | Surface Mount | Drum Core Wirewound | Nonstandard | Iron | -55 C | 150 °C | 9 A | 20 % | 15 mOhm | |
Bourns Inc. | 720 nH | Shielded | 100 kHz | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 0.126 in | 3.2 mm | Surface Mount | Wirewound | Nonstandard | -40 C | 150 °C | 12.5 Amps | 20 % | 8 mOhm | |||
Bourns Inc. | 470 nH | Shielded | 100 kHz | 26 A | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 0.126 in | 3.2 mm | Surface Mount | Drum Core Wirewound | Nonstandard | Iron | -55 C | 150 °C | 17.5 A | 20 % | 4.2 mOhm | |
Bourns Inc. | 100 nH | Shielded | 100 kHz | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 0.126 in | 3.2 mm | Surface Mount | Wirewound | Nonstandard | -40 C | 150 °C | 22 A | 20 % | 1.1 mOhm | |||
Bourns Inc. | 100 nH | Shielded | 100 kHz | 42 A | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 0.126 in | 3.2 mm | Surface Mount | Drum Core Wirewound | Nonstandard | Iron | -55 C | 150 °C | 32.5 A | 20 % | 1.7 mOhm | |
Bourns Inc. | 220 nH | Shielded | 100 kHz | 36 A | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 0.126 in | 3.2 mm | Surface Mount | Drum Core Wirewound | Nonstandard | Iron | -55 C | 150 °C | 23 A | 20 % | 2.8 mOhm |
