SW3821 Series
Manufacturer: NKK Switches
Beta
⌘K

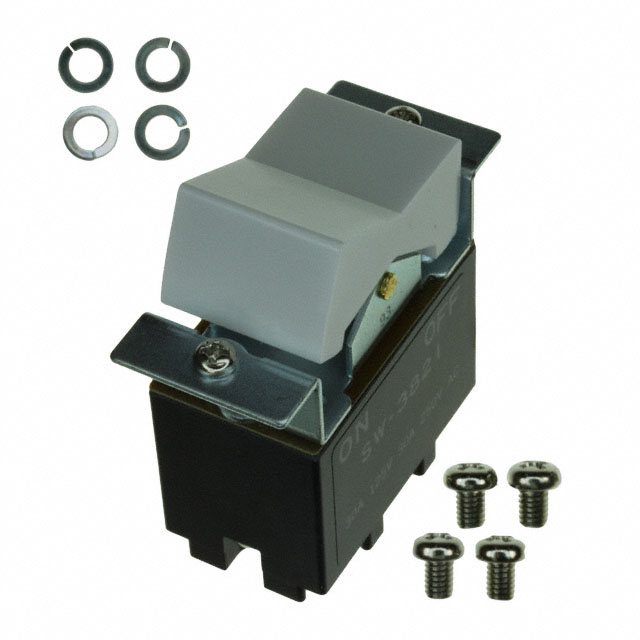

ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES
| Part | Electrical Life | Mechanical Life | Mounting Type | Color - Actuator/Cap | Actuator Type | Voltage Rating - AC | Approval Agency | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Actuator Marking | Circuit | Current Rating (Amps) | Switch Function | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | Flange Panel Mount | White | Concave | 125 V | CSA UL | 30 V | 70 °C | -10 °C | Screw Terminal | No Marking | DPST | 30 A | On-Off | |
 NKK Switches | 25000 Steps | 50000 Cycles | Flange Panel Mount | White | Concave | CSA UL | 30 V | 70 °C | -30 ░C | Screw Terminal | No Marking | DPST | On-Off | Low Temperature Lubricant | ||
 NKK Switches | 25000 Steps | 50000 Cycles | Flange Panel Mount | White | Concave | CSA UL | 30 V | 70 °C | -10 °C | Screw Terminal | No Marking | DPST | On-Off |
