SFW6R Series

Catalog

CONN FFC FPC BOTTOM 6POS 1MM R/A

Part	Housing Color	Actuator Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Mounting Type	Termination	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Pitch	Pitch	Flat Flex Type	Actuator Material	Number of Positions	Locking Feature	Contact Finish	Voltage Rating	Housing Material	Cable End Type	Contact Material	Material Flammability Rating	FFC, FCB Thickness	Features
Amphenol ICC (FCI) SFW6R-3STE1LF	Black	Black	20	-55 C	105 ░C	Contacts Bottom	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	0.3 mm	0.33 mm	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin	100 V	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Phosphor Bronze	UL94 V-0

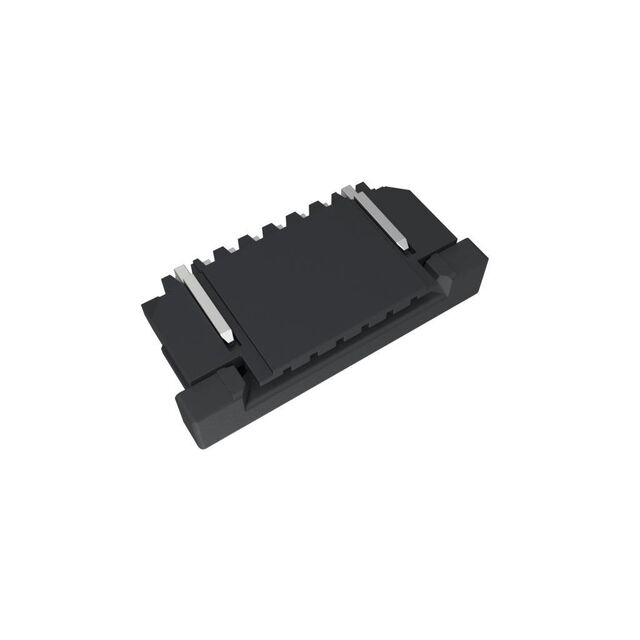

Amphenol ICC (FCI) SFW6R-6STE1LF	Brown	Beige	10	-55 C	105 ░C	Contacts Top	Right Angle Surface Mount	Solder	0.106 in	2.7 mm			1 mm	0.039 in	CIC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin	100 V	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Phosphor Bronze	UL94 V-0	0.3 mm
Amphenol ICC (FCI) SFW6R-4STE1	Black	Brown				Contacts Top	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	0.3 mm	0.33 mm	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin Alloy		Polyphenylene Sulfide (PPS) Glass Filled	Notched	Phosphor Bronze	UL94 V-0
Amphenol ICC (FCI) SFW6R-3STE1	Black	Brown				Contacts Bottom	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	0.3 mm	0.33 mm	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin Alloy		Polyphenylene Sulfide (PPS) Glass Filled	Notched	Phosphor Bronze	UL94 V-0
Amphenol ICC (FCI) SFW6R-4STAE1LF	Black	Black	20	-55 C	105 ░C	Contacts Top	Right Angle Surface Mount	Kinked Pin	0.106 in	2.7 mm			1 mm	0.039 in	FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Gold	100 V	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Phosphor Bronze	UL94 V-0	0.33 mm

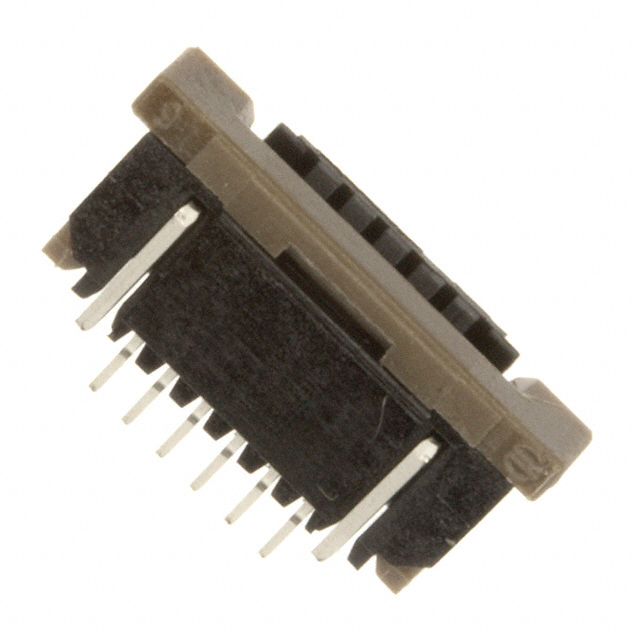

Amphenol ICC (FCI) SFW6R-4STE1LF	Black	Brown	20	-55 C	105 ░C	Contacts Top	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	0.3 mm	0.33 mm	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin	100 V	Polyphenylene Sulfide (PPS) Glass Filled	Notched Tapered	Phosphor Bronze	UL94 V-0		Solder Retention Zero Insertion Force (ZIF)

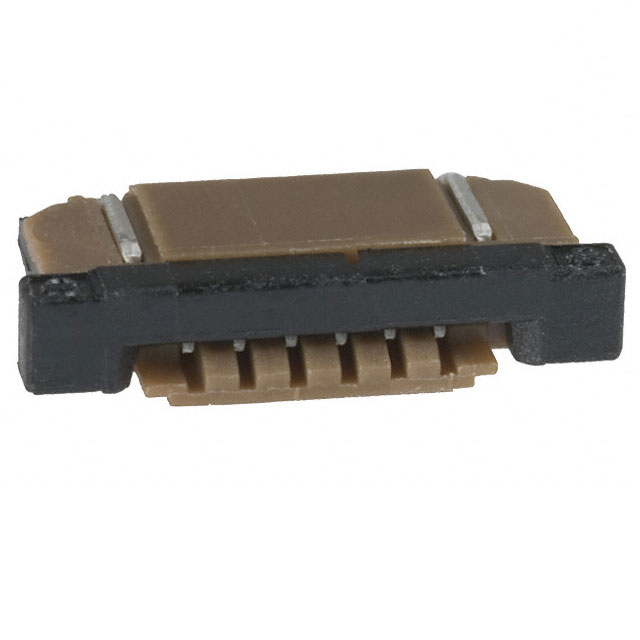

Amphenol ICC (FCI) SFW6R-1STE1	Brown	Black				Contacts Bottom	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	0.3 mm	0.33 mm	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin Alloy		Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Phosphor Bronze	UL94 V-0
Amphenol ICC (FCI) SFW6R-6STE1						Contacts Top	Right Angle Surface Mount	Solder	0.106 in	2.7 mm			1 mm	0.039 in	CIC		6	Slide Lock			Polyphenylene Sulfide (PPS) Glass Filled	Tapered			0.3 mm
Amphenol ICC (FCI) SFW6R-2STE1	Brown	Black				Contacts Top	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	0.3 mm	0.33 mm	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin Alloy		Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Phosphor Bronze	UL94 V-0

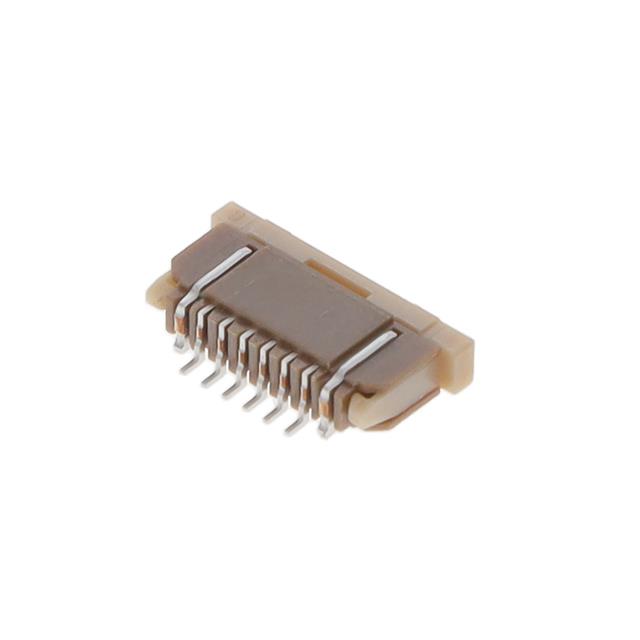

Amphenol ICC (FCI) SFW6R-5STZE1LF	Brown	Black	10	-55 C	105 ░C	Contacts Bottom	Right Angle Surface Mount	Solder	0.106 in	2.7 mm			1 mm	0.039 in	CIC	Polyphenylene Sulfide (PPS) Glass Filled	6	Slide Lock	Tin	100 V	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Phosphor Bronze	UL94 V-0	0.3 mm	Solder Retention Zero Insertion Force (ZIF)
