DTC144ECAHZG Series

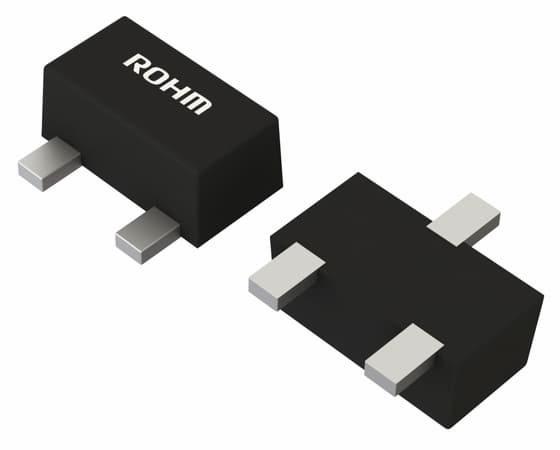

NPN, SOT-723, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Catalog

NPN, SOT-723, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Part	Resistor - Emitter Base (R2)	Resistor - Base (R1)	Qualification	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Frequency - Transition	Supplier Device Package	Transistor Type	Grade	Package / Case	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
Rohm Semiconductor DTC144ECAHZGT116	47000 Ohms	47 kOhms	AEC-Q101	100 mA	68	Surface Mount	250 MHz	SST3	NPN - Pre-Biased	Automotive	SC-59 SOT-23-3 TO-236-3	350 mW	300 mV
Rohm Semiconductor DTC144GUAT106		47 kOhms		100 mA	68	Surface Mount	250 MHz	UMT3	NPN - Pre-Biased		SC-70 SOT-323	200 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144ESATP	47000 Ohms	47 kOhms		30 mA	68	Through Hole	250 MHz	SPT	NPN - Pre-Biased		SC-72 Formed Leads		300 mV	500 nA	50 V
Rohm Semiconductor DTC144TKAT146		47 kOhms		100 mA	100	Surface Mount	250 MHz	SMT3	NPN - Pre-Biased		SC-59 SOT-23-3 TO-236-3	200 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144EUBTL	47000 Ohms	47 kOhms		30 mA	68	Surface Mount	250 MHz	UMT3F	NPN - Pre-Biased		SC-85	200 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144EKAT146	47000 Ohms	47 kOhms		100 mA	68	Surface Mount	250 MHz	SMT3	NPN - Pre-Biased		SC-59 SOT-23-3 TO-236-3	200 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144EUAT106	47000 Ohms	47 kOhms		30 mA	68	Surface Mount	250 MHz	UMT3	NPN - Pre-Biased		SC-70 SOT-323	200 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144EEBTL	47000 Ohms	47 kOhms		30 mA	68	Surface Mount	250 MHz	EMT3F (SOT-416FL)	NPN - Pre-Biased		SC-89 SOT-490	150 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144EMFHAT2L	47000 Ohms	47 kOhms	AEC-Q101	100 mA	68	Surface Mount	250 MHz	VMT3	NPN - Pre-Biased	Automotive	SOT-723	150 mW	300 mV	500 nA	50 V
Rohm Semiconductor DTC144EMT2L	47000 Ohms	47 kOhms		30 mA	68	Surface Mount	250 MHz	VMT3	NPN - Pre-Biased		SOT-723	150 mW	300 mV	500 nA	50 V

Catalog

NPN, SOT-723, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Key Features

• Built-In Biasing Resistors, R1= R2= 47kΩ, Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) ., The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects., Only the on/off conditions need to be set for operation, making the circuit design easy., Complementary PNP Types: DTA144ECA HZG

Description

DTC144WCA is an digital transistor (Resistor built-in type transistor). Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
