High-speed switching, 80V, 25mA, 5pin Switching Diode
Description
AI
ROHM's switching diodes, including diode arrays, are available in high-reliability packages and stable supply for various applications.
Beta
⌘K
High-speed switching, 80V, 25mA, 5pin Switching Diode
High-speed switching, 80V, 25mA, 5pin Switching Diode
| Part | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Speed | Speed | Reverse Recovery Time (trr) | Package / Case | Mounting Type | Current - Average Rectified (Io) (per Diode) | Current - Reverse Leakage @ Vr | Diode Configuration | Operating Temperature - Junction [Max] | Voltage - Forward (Vf) (Max) @ If [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

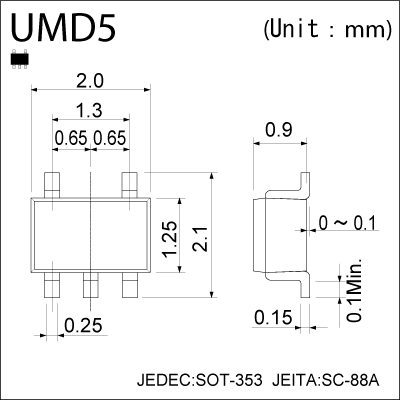

 Rohm Semiconductor | Standard | 80 V | 200 mA | Any Speed | 4 ns | 5-TSSOP SC-70-5 SOT-353 | Surface Mount | 25 mA | 100 nA | 2 Pair Common Cathode | 150 °C | 900 mV |
