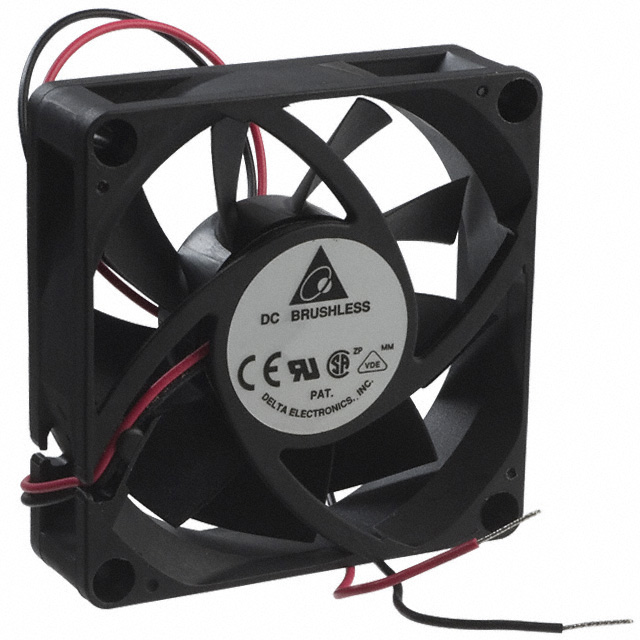

AFB0712 Series

Catalog

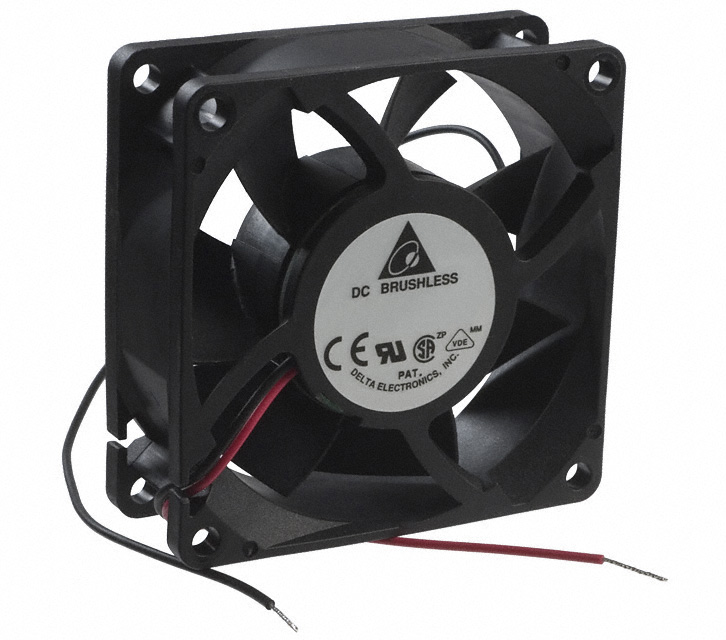

FAN AXIAL 70X25.4MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	RPM	Voltage - Rated	Fan Type	Bearing Type	Noise	Weight	Weight	Width [y]	Air Flow	Air Flow	Approval Agency	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Features	Weight [custom]	Weight [custom]	Static Pressure	Size / Dimension	Size / Dimension [y]
Delta Electronics AFB0712VH-A	0.44 A	Plastic	70000 Hrs	12.6 VDC	5 VDC	Plastic	70 mm	70 mm	5.28 W	5500 RPM	12 VDC	Tubeaxial	Ball	47.5 dB	0.199 lb	90.26 g	25.4 mm	52 CFM	1.46 mł/min	CE CSA UL VDE	107.9 Pa	0.433 in H2O	70 °C	-10 °C	2 Wire Leads
Delta Electronics AFB0712HHD-R00	0.25 A	Plastic	70000 Hrs	13.8 VDC	5 VDC	Plastic	70 mm	70 mm	3 W	4400 RPM	12 VDC	Tubeaxial	Ball	40.5 dB(A)	0.154 lb	69.85 g	20 mm	40.4 CFM	1.13 mł/min	CE CSA UL VDE	55.3 Pa	0.222 in H2O	70 °C	-10 °C	3 Wire Leads	Locked Rotor Sensor

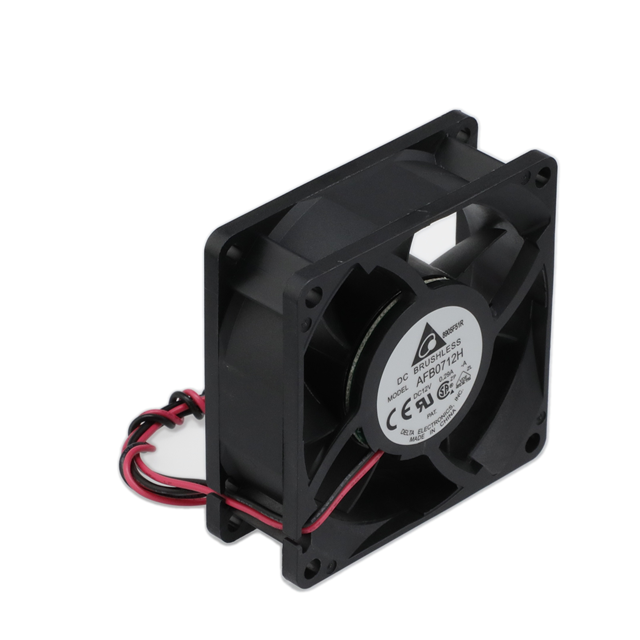

Delta Electronics AFB0712H-A	0.17 A	Plastic		13.8 VDC	5 VDC	Plastic	70 mm	70 mm		3900 RPM	12 VDC	Tubeaxial	Ball	37.5 dB(A)	0.199 lb	90.26 g	25.4 mm	36.3 CFM	1.02 m³/min	CE CSA UL VDE	54.1 Pa	0.217 in H2O			2 Wire Leads

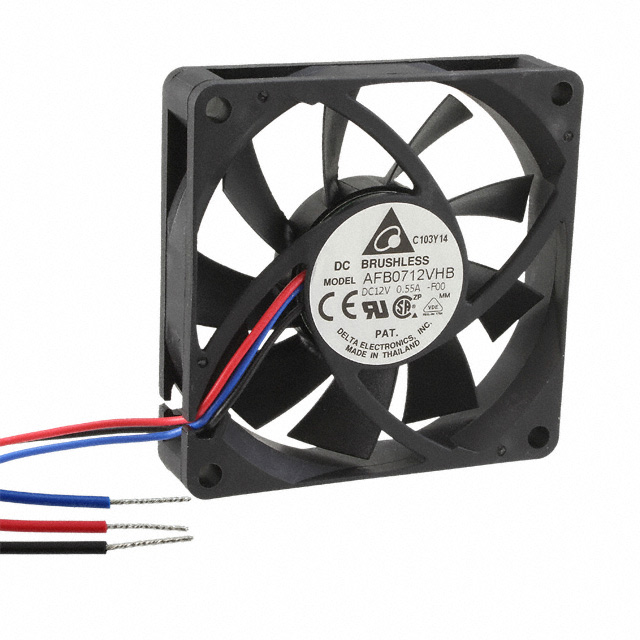

Delta Electronics AFB0712VHB	0.37 A	Plastic	70000 Hrs	12.6 VDC	5 VDC	Plastic	70 mm	70 mm	4.44 W	5200 RPM	12 VDC	Tubeaxial	Ball	44 dB(A)			15 mm	45.5 CFM	1.27 m³/min	CE CSA UL VDE	76.4 Pa		70 °C	-10 °C	2 Wire Leads		52.62 g	0.116 lb	0.306 in H2O
Delta Electronics AFB0712VHB-F00	0.37 A	Plastic	70000 Hrs	12.6 VDC	5 VDC	Plastic	70 mm	70 mm	4.44 W	5200 RPM	12 VDC	Tubeaxial	Ball	44 dB(A)			15 mm	45.5 CFM	1.27 m³/min	CE CSA UL VDE	76.4 Pa		70 °C	-10 °C	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	52.62 g	0.116 lb	0.306 in H2O

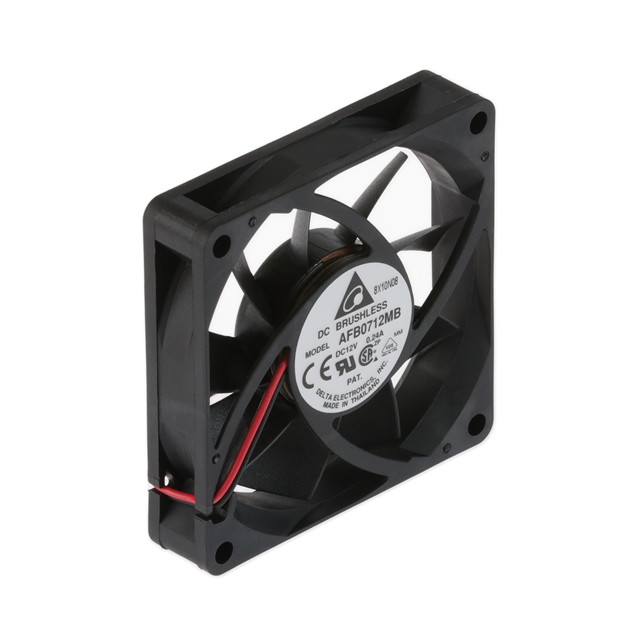

Delta Electronics AFB0712MB	140 mA	Plastic	70000 Hrs	13.8 VDC	4 VDC	Plastic	70 mm	70 mm	1.68 W	3300 RPM	12 VDC	Tubeaxial	Ball	31 dB(A)			15 mm	28.2 CFM	0.79 mł/min	CE CSA UL VDE	30.6 Pa	0.123 in H2O	70 °C	-10 °C	2 Wire Leads		47.17 g	0.104 lb

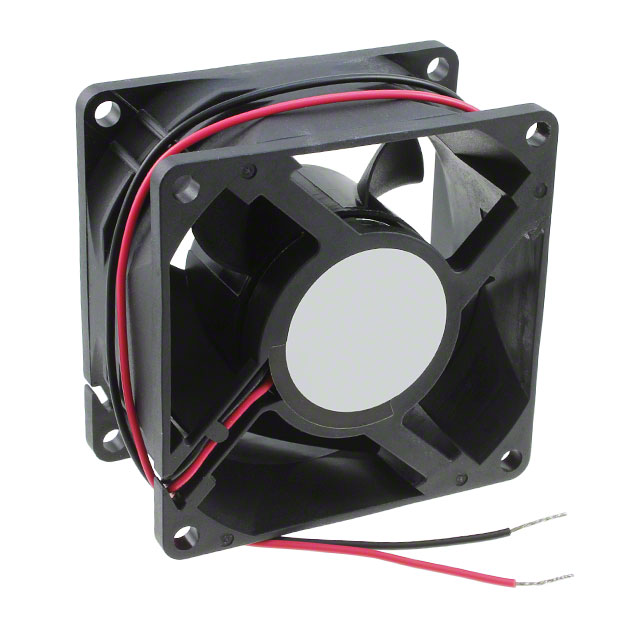

Delta Electronics AFB0712VHE	0.7 A	Plastic	70000 Hrs	12.6 VDC	7 V	Plastic	69.5 mm		8.4 W	7000 RPM	12 VDC	Tubeaxial	Ball	51 dB(A)	0.298 lb	135.17 g	38 mm	62.2 CFM	1.74 mł/min	CE CSA UL VDE	216.7 Pa	0.87 in H2O	60 °C	-10 °C	2 Wire Leads					Square	69.5 mm
Delta Electronics AFB0712VHD-R00	0.35 A	Plastic	70000 Hrs	13.2 VDC	5 VDC	Plastic	70 mm	70 mm	4.2 W	5000 RPM	12 VDC	Tubeaxial	Ball	44.3 dB(A)	0.154 lb	69.85 g	20 mm	46.9 CFM	1.31 mł/min	CE CSA UL VDE	71 Pa	0.285 in H2O	70 °C	-10 °C	3 Wire Leads	Locked Rotor Sensor
Delta Electronics AFB0712HB-F00	0.18 A	Plastic	70000 Hrs	13.8 VDC	4 VDC	Plastic	70 mm	70 mm	2.16 W	3800 RPM	12 VDC	Tubeaxial	Ball	34.5 dB(A)			15 mm	33.2 CFM	0.93 mł/min	CE CSA UL VDE	40.3 Pa	0.162 in H2O	70 °C	-10 °C	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	47.17 g	0.104 lb

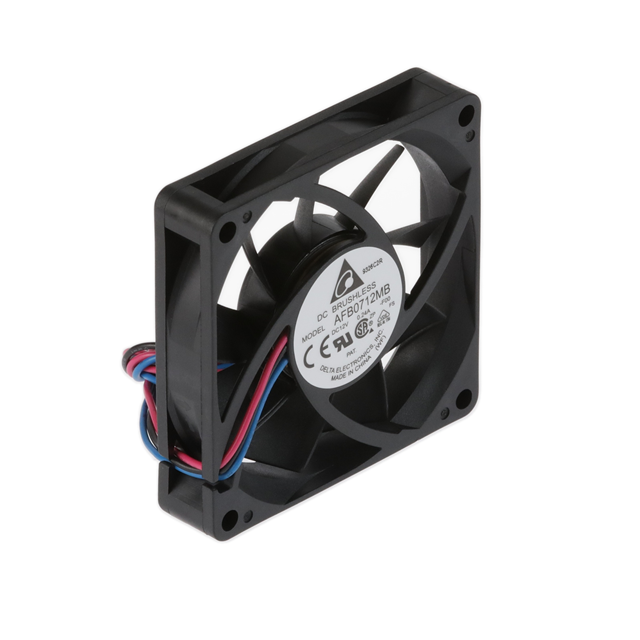

Delta Electronics AFB0712MB-F00	140 mA	Plastic	70000 Hrs	13.8 VDC	4 VDC	Plastic	70 mm	70 mm	1.68 W	3300 RPM	12 VDC	Tubeaxial	Ball	31 dB(A)			15 mm	28.2 CFM	0.79 mł/min	CE CSA UL VDE	30.6 Pa	0.123 in H2O	70 °C	-10 °C	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	47.17 g	0.104 lb
