PV4 Series

Catalog

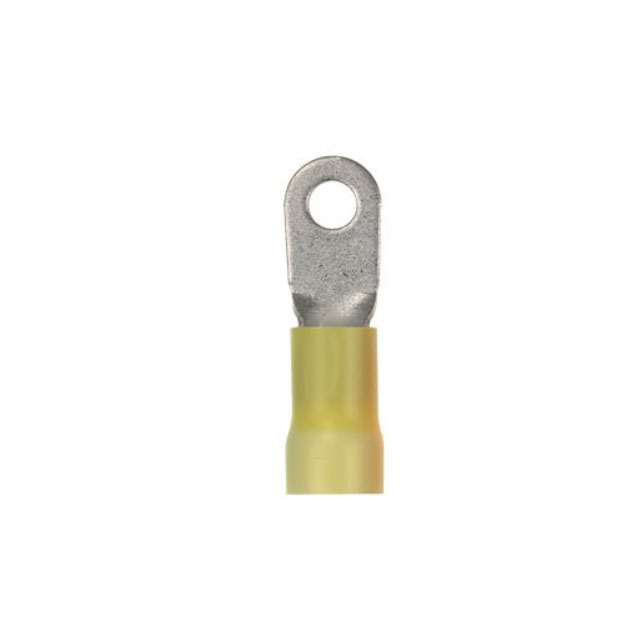

CONN RING FLAT 4AWG #5/16 CRIMP

Part	Terminal Type	Color	Thickness	Thickness	Features	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Insulation	Wire Gauge	Contact Finish	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Length - Overall [x]	Length - Overall	Material - Insulation	Stud/Tab Size	Insulation Diameter	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]	Stud/Tab Size

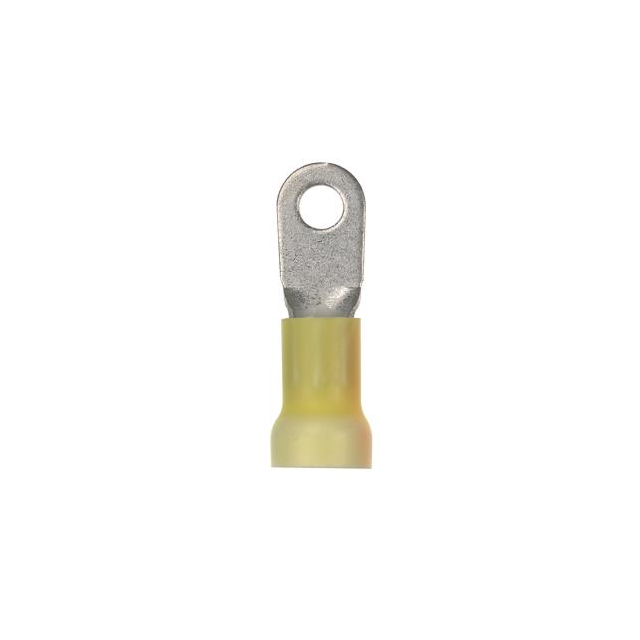

Panduit Corp PV4-56RX-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.515 in	13.08 mm	Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper	0.68 in	17.27 mm	Crimp	1.94 "	49.28 mm	Vinyl	0.3125 Stud
Panduit Corp PV4-56RX-T	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.515 in	13.08 mm	Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper	0.68 in	17.27 mm	Crimp	1.94 "	49.28 mm	Vinyl	0.3125 Stud

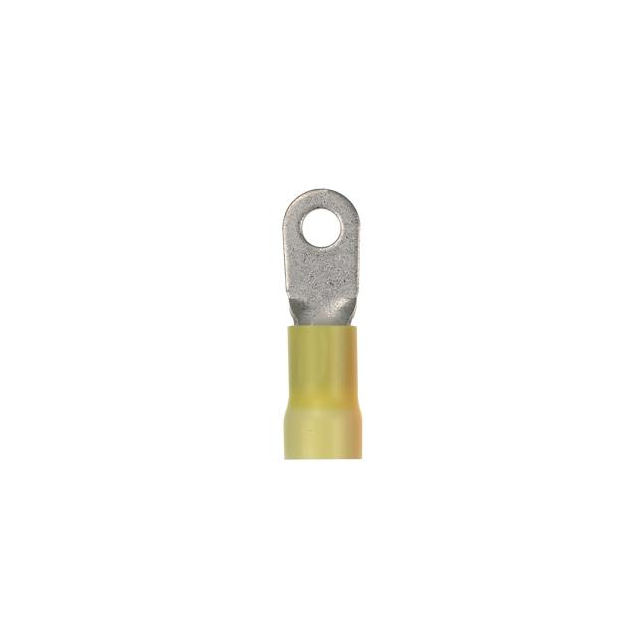

Panduit Corp PV4-10R-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.45 in		Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper			Crimp			Vinyl	10 Stud	11.43 mm	13.97 mm	0.55 in
Panduit Corp PV4-14R-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.45 in		Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper			Crimp			Vinyl	0.25 Stud	11.43 mm	13.97 mm	0.55 in
Panduit Corp PV4-14RX-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.515 in	13.08 mm	Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper			Crimp	1.87 in		Vinyl	0.25 Stud		13.97 mm	0.55 in	47.5 mm
Panduit Corp PV4-38RX-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.515 in	13.08 mm	Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper	0.68 in	17.27 mm	Crimp	1.94 "	49.28 mm	Vinyl						3/8 Stud
Panduit Corp PV4-12R-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.45 in		Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper	0.86 in	21.84 mm	Crimp	2.04 in		Vinyl		11.43 mm			51.82 mm	1/2 Stud
Panduit Corp PV4-10RX-T	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.515 in	13.08 mm	Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper			Crimp	1.87 in		Vinyl	10 Stud		13.97 mm	0.55 in	47.5 mm

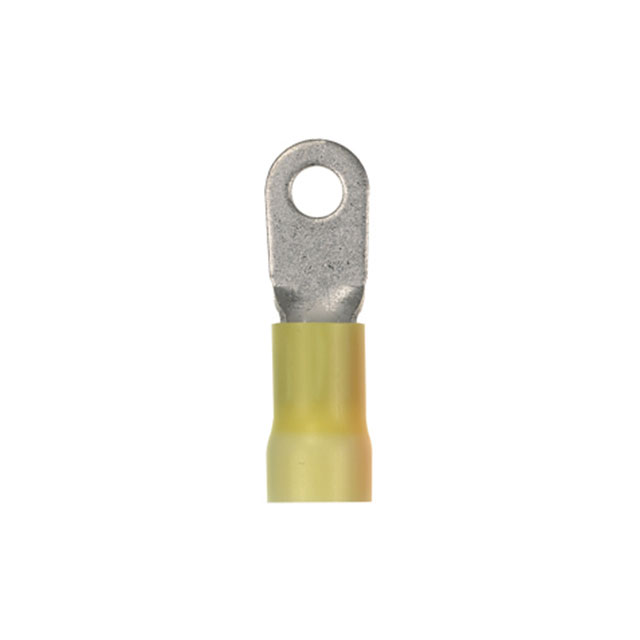

Panduit Corp PV4-38R-T	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.45 in		Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper	0.68 in	17.27 mm	Crimp	1.95 in		Vinyl		11.43 mm			49.53 mm	3/8 Stud
Panduit Corp PV4-12RX-E	Flat Sided	Yellow	50 mils	0.05 in	Brazed Seam	0.515 in	13.08 mm	Free Hanging (In-Line)	Insulated	4 AWG	Tin	Copper	0.86 in	21.84 mm	Crimp	2.03 in		Vinyl					51.56 mm	1/2 Stud
