1658462 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MSB0.80RC-ASY040FL,-,30,-TY

Part	Number of Rows [custom]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Mated Stacking Heights	Features	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Pitch	Pitch
TE Connectivity AMP Connectors 2-1658462-1	2	Receptacle Center Strip Contacts	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	40	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in

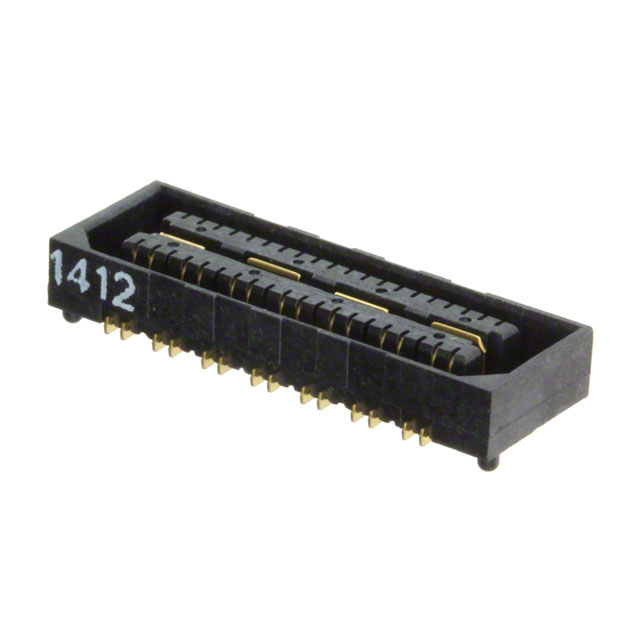

TE Connectivity AMP Connectors 7-1658462-1	2	Differential Pair Array Female	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	28	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in
TE Connectivity AMP Connectors 4-1658462-1	2	Receptacle Center Strip Contacts	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	40	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in
TE Connectivity AMP Connectors 1658462-4	2	Receptacle Center Strip Contacts	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	160	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in
TE Connectivity AMP Connectors 6-1658462-1	2	Receptacle Center Strip Contacts	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	40	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in
TE Connectivity AMP Connectors 3-1658462-5	2	Differential Pair Array Female	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	140	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in

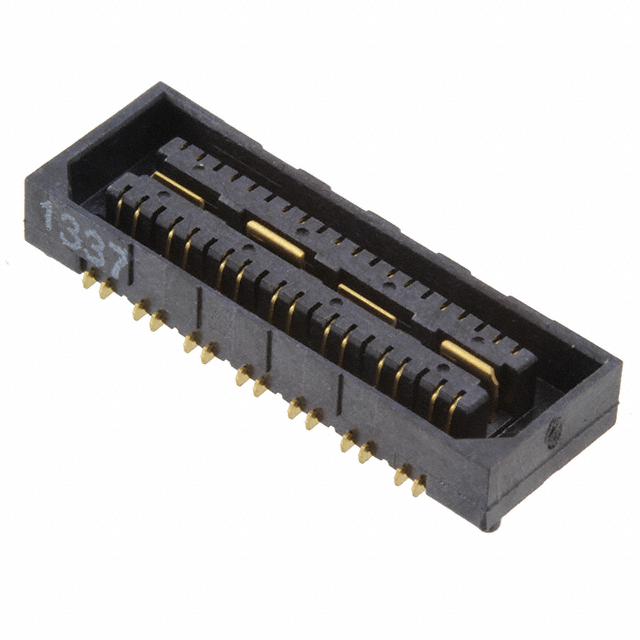

TE Connectivity AMP Connectors 5-1658462-1	2	Differential Pair Array Female	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	28	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in

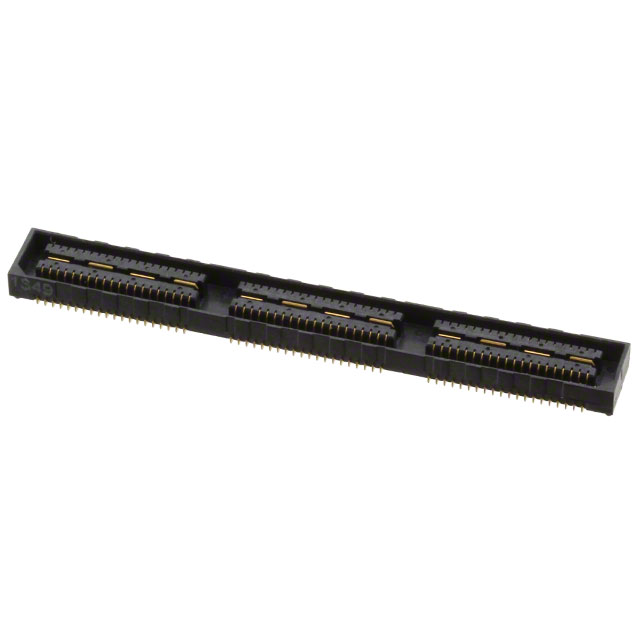

TE Connectivity AMP Connectors 4-1658462-3	2	Receptacle Center Strip Contacts	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	120	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in

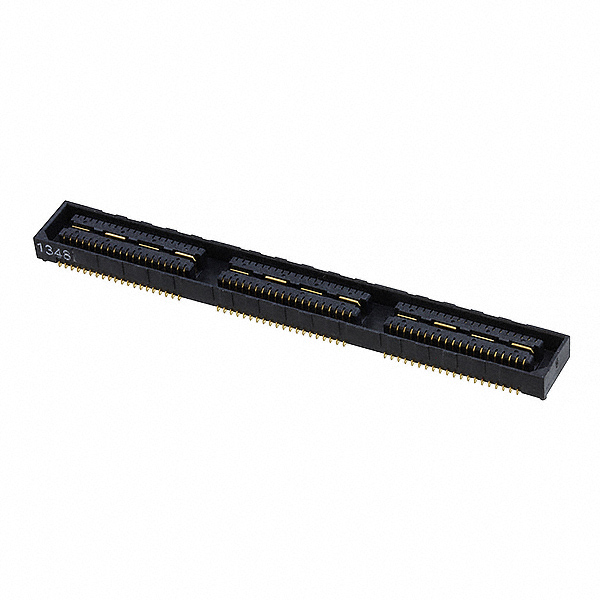

TE Connectivity AMP Connectors 1658462-3	2	Receptacle Center Strip Contacts	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	120	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in

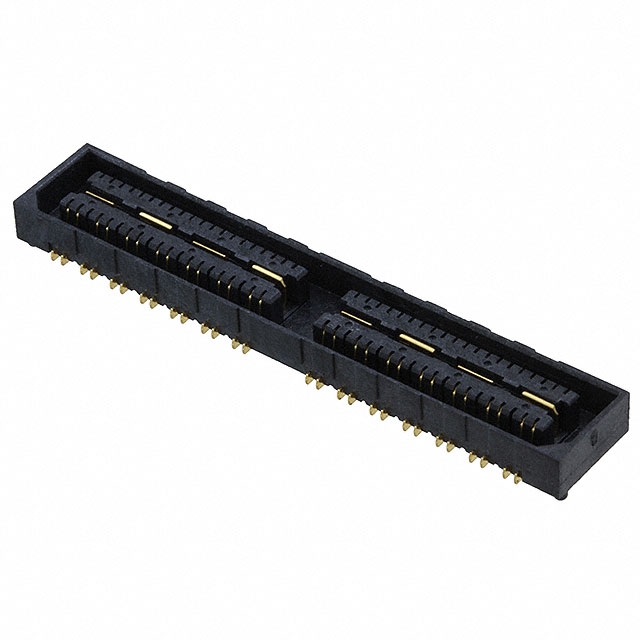

TE Connectivity AMP Connectors 7-1658462-2	2	Differential Pair Array Female	30 Áin	0.76 Ám	Surface Mount	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	Board Guide Ground Bus (Plane)	56	0.128 in	3.25 mm	Gold	0.8 mm	0.031 in
