1658526 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 10P IDC 28-30AWG GOLD

Part	Color	Connector Type	Pitch	Pitch	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Wire Type	Row Spacing	Row Spacing	Cable Termination	Contact Type	Number of Rows [custom]	Wire Gauge [Max]	Wire Gauge [Min]	Features
TE Connectivity AMP Connectors 1658526-3	Blue	Receptacle	0.1 "	2.54 mm	Gold	10	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG

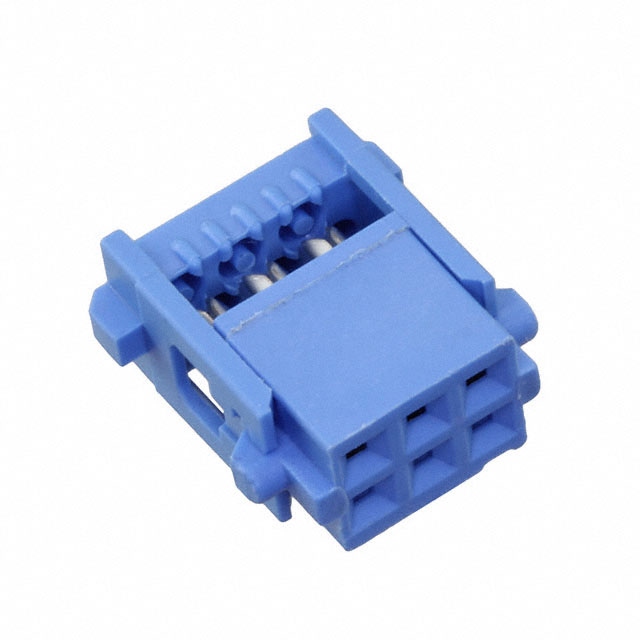

TE Connectivity AMP Connectors 2-1658526-5	Blue	Receptacle	0.1 "	2.54 mm	Gold	6	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG

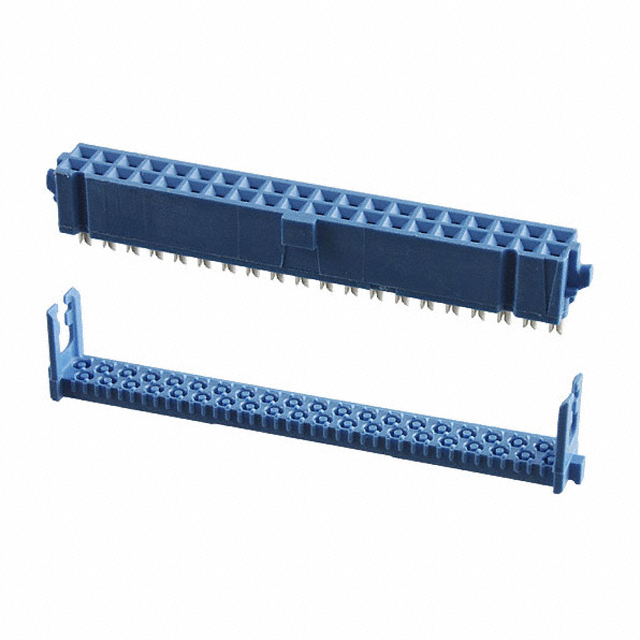

TE Connectivity AMP Connectors 2-1658526-1	Blue	Receptacle	0.1 "	2.54 mm	Gold	40	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key Strain Relief

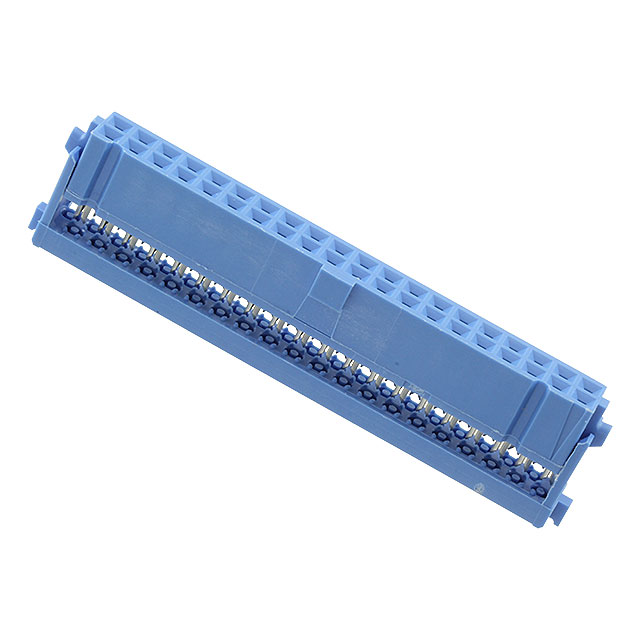

TE Connectivity AMP Connectors 2-1658526-0	Blue	Receptacle	0.1 "	2.54 mm	Gold	40	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key

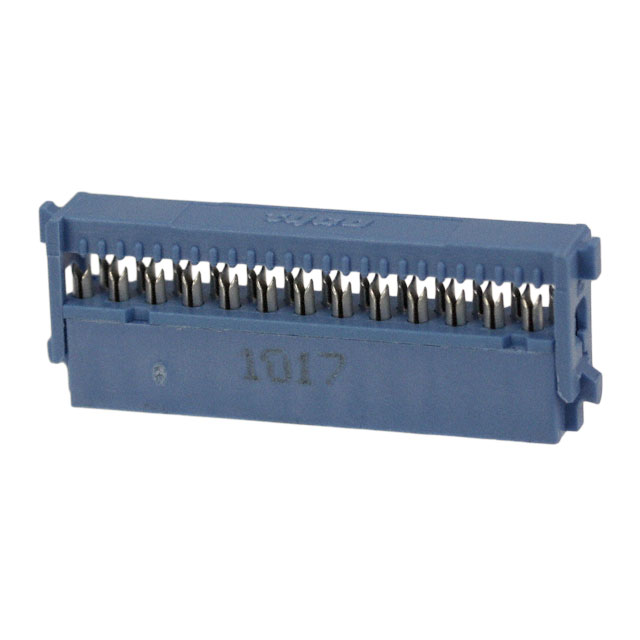

TE Connectivity AMP Connectors 1-1658526-5	Blue	Receptacle	0.1 "	2.54 mm	Gold	26	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key

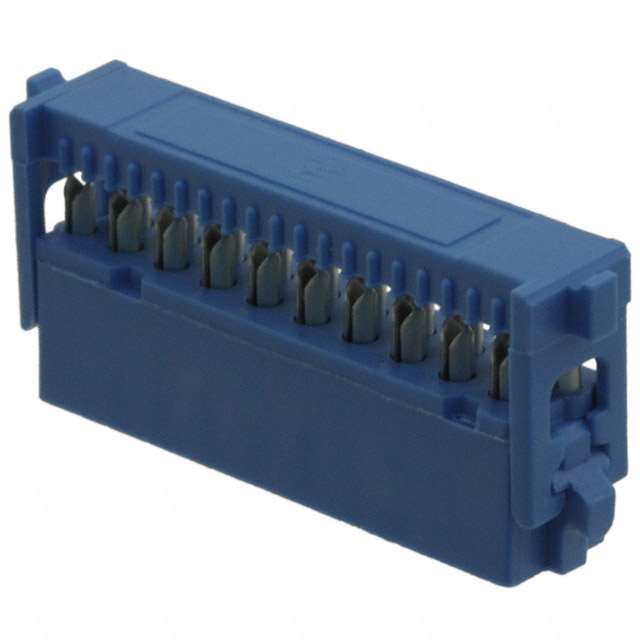

TE Connectivity AMP Connectors 1-1658526-2	Blue	Receptacle	0.1 "	2.54 mm	Gold	20	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key

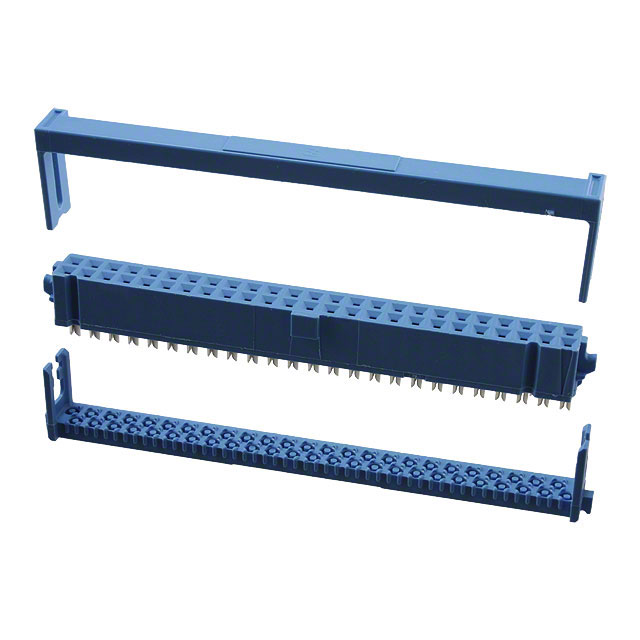

TE Connectivity AMP Connectors 2-1658526-4	Blue	Receptacle	0.1 "	2.54 mm	Gold	50	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key Strain Relief

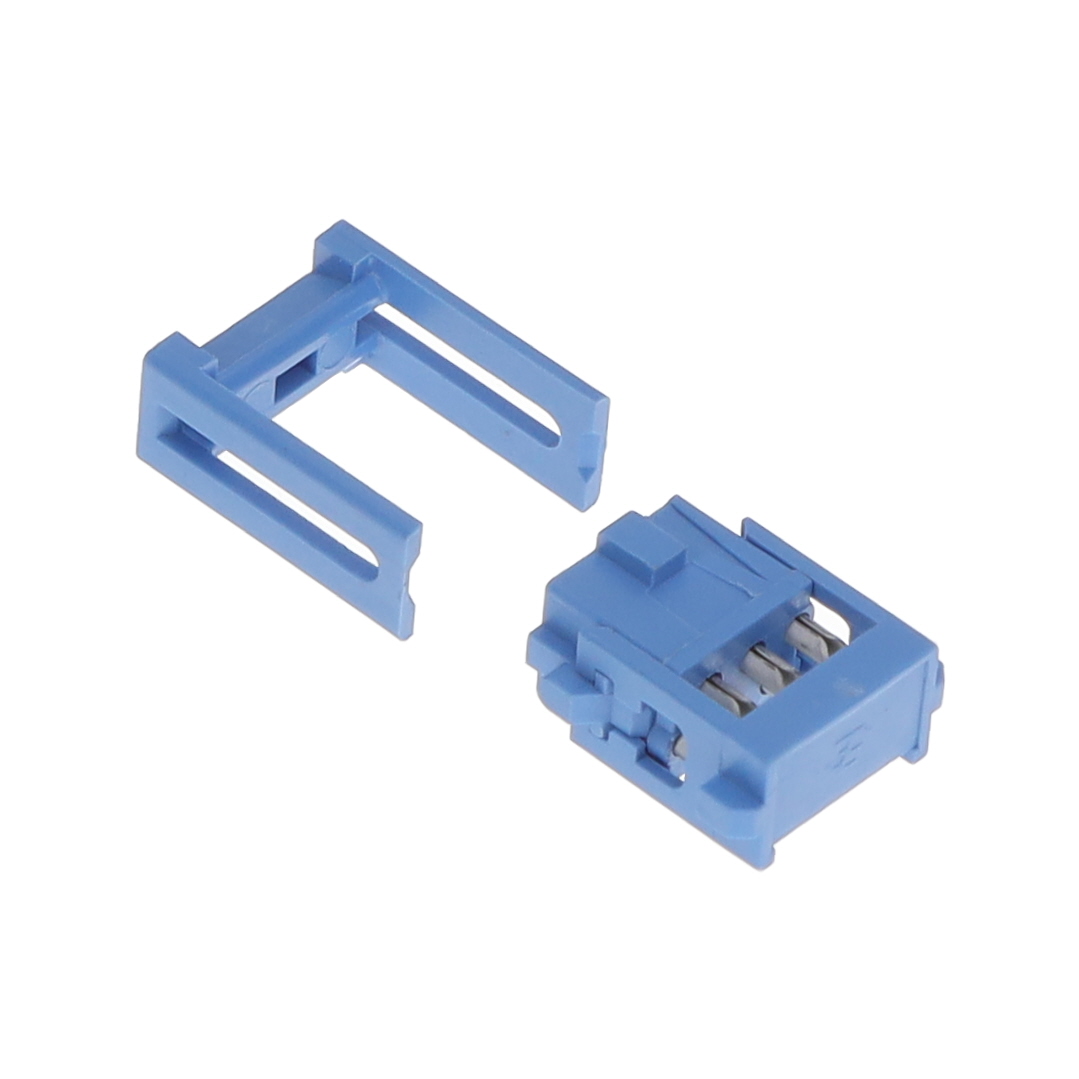

TE Connectivity AMP Connectors 1658526-2	Blue	Receptacle	0.1 "	2.54 mm	Gold	6	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key Strain Relief

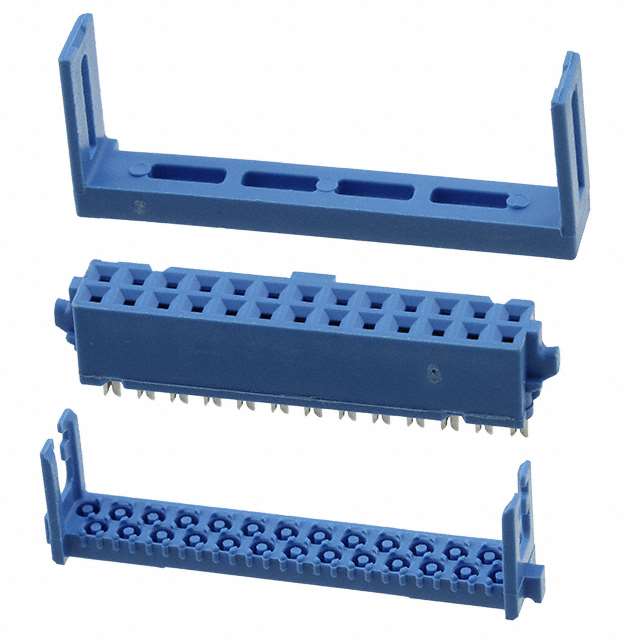

TE Connectivity AMP Connectors 1-1658526-6	Blue	Receptacle	0.1 "	2.54 mm	Gold	26	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	2.54 mm	0.1 "	IDC	Female Socket	2	30 AWG	27.5 AWG	Polarizing Key Strain Relief
