19300061 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 6B

Part	Housing Material	Size	Size / Dimension [x]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lock Location	Housing Finish	Thread Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Style	Connector Type	Size / Dimension [z]	Size / Dimension [z]

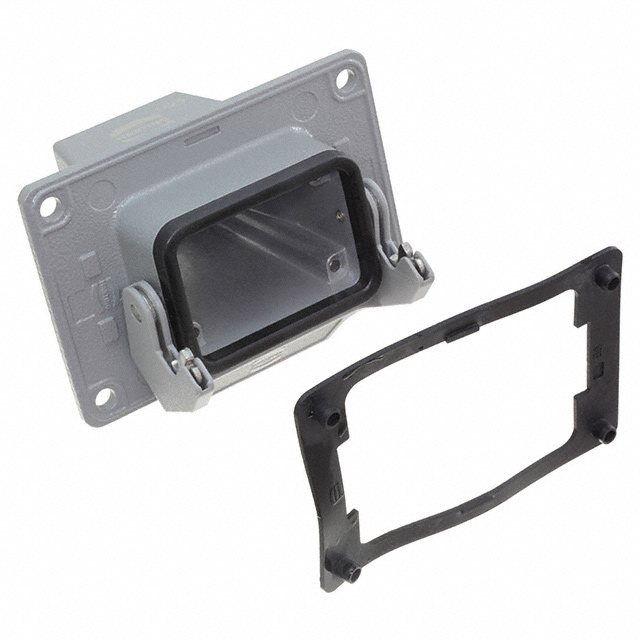

HARTING 19300061121	Aluminum Die Cast	6B	4.094 "	3.165	104 mm	70.5 mm	2.776 in	Locking Clip (1) on Hood	Powder Coated	M25	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Gray	Top Entry	Hood - Panel Mount
HARTING 19300061440	Aluminum Die Cast	6B	2.362 in		60 mm	43 mm	1.693 "	Locking Clip (1) on Base Bottom	Powder Coated	M20	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Gray	Top Entry	Hood	53.5 mm	2.106 "
HARTING 19300061541	Aluminum Die Cast	6B	2.362 in		60 mm	43 mm	1.693 "	Locking Clip (1) on Base Bottom	Powder Coated	M25	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Gray	Side Entry	Hood	51.2 mm	2.016 "

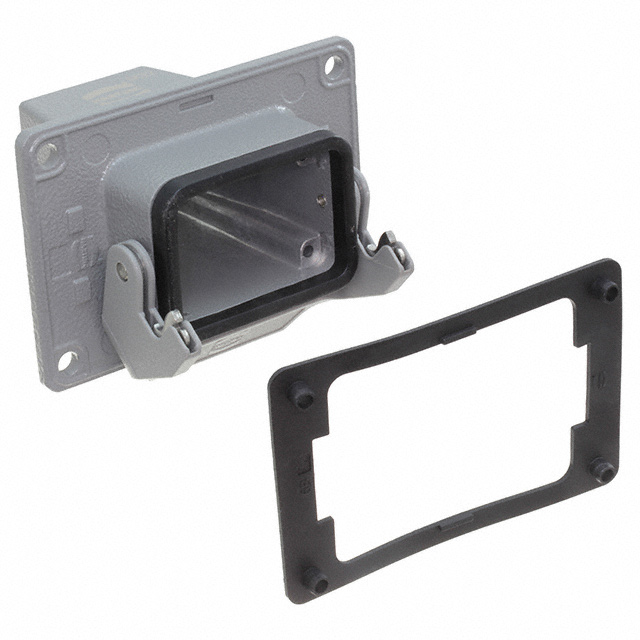

HARTING 19300061122	Aluminum Die Cast	6B	4.094 "	3.165	104 mm	70.5 mm	2.776 in	Locking Clip (1) on Hood	Powder Coated	M32	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Gray	Top Entry	Hood - Panel Mount

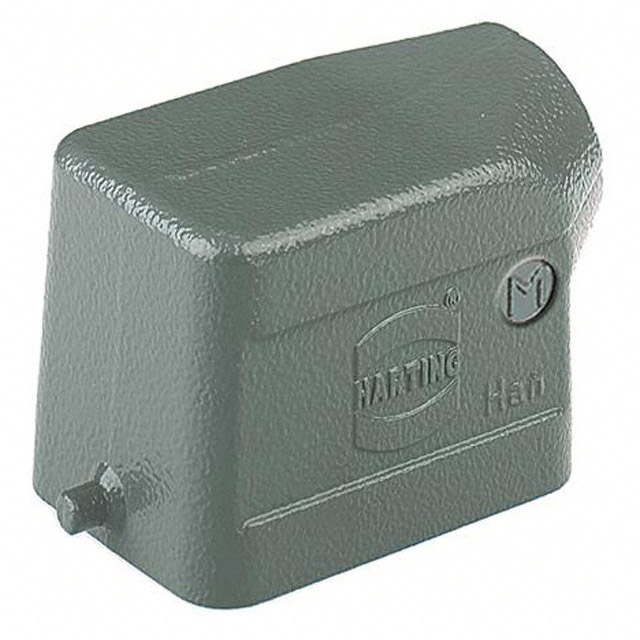

HARTING 19300061540	Aluminum Die Cast	6B	2.362 in		60 mm	43 mm	1.693 "	Locking Clip (1) on Base Bottom	Powder Coated	M20	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Gray	Side Entry	Hood	51.2 mm	2.016 "

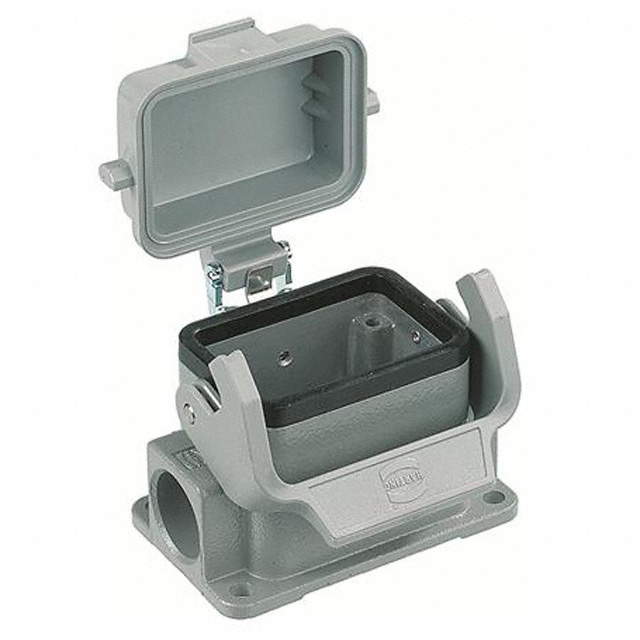

HARTING 19300061295	Aluminum Die Cast	6B	3.228 in		82 mm	52 mm	2.047 in	Locking Clip (1) on Base Bottom	Powder Coated	M20	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Gray	Side Entry	Base - Box Mount	51.5 mm	2.028 in
