CLM-14 Series

Catalog

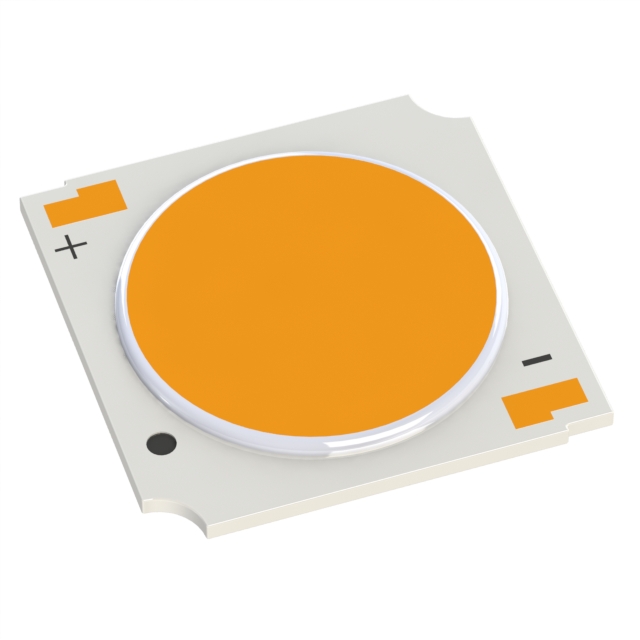

LED COB SENSUS WARM WHT SQ 3500K

Part	Voltage - Forward (Vf) (Typ)	CCT (K)	CCT (K)	Type	Lens Type	Light Emitting Surface (LES) [diameter]	Color	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Height [z]	CRI (Color Rendering Index)	Temperature - Test	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Viewing Angle	Configuration
Luminus Devices Inc. CLM-14-35-90-36-AC32-F4-3	33.8 V	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	14.3 mm	Warm White	122 lm/W	2065 lm	1.37 mm	90	85 °C	1.1 A	19 mm	19 mm	500 mA	120 °	Square
Luminus Devices Inc. CLM-14-35-80-36-AC40-F5-2	32.8 V	3500 K		Chip On Board (COB)	Flat	14.5 mm	Warm White	168 lm/W	2760 lm	1.37 mm	80	85 °C	1.8 A	19 mm	19 mm	500 mA	120 °	Square
Luminus Devices Inc. CLM-14-50-80-36-AA30-F4-3	33.8 V	5000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	14.3 mm	Cool White	158 lm/W	2665 lm	1.37 mm	80	85 °C	1.25 A	19 mm	19 mm	500 mA	120 °	Square
Luminus Devices Inc. CLM-14-27-90-36-TC60-F7-3	32.8 V	2700 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	14.5 mm	Warm White	146 lm/W	2390 lm	1.37 mm	90	85 °C	1.6 A	19 mm	19 mm	500 mA	120 °	Square
Luminus Devices Inc. CLM-14-50-95-36-AC40-F5-2
Luminus Devices Inc. CLM-14-50-70-36-TA60-F7-2	32.8 V	5000 K	2-Step MacAdam Ellipse	Chip On Board (COB)	Flat	14.5 mm	Cool White			1.37 mm	70	85 °C	1.6 A	19 mm	19 mm	500 mA	120 °	Square
Luminus Devices Inc. CLM-14-30-70-36-AC38-F4-3	33.8 V	3000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	14.5 mm	Warm White			1.37 mm	70	85 °C	1.26 A	19 mm	19 mm		120 °	Square
Luminus Devices Inc. CLM-14-57-80-36-AC40-F5-2
Luminus Devices Inc. CLM-14-35-90-36-AA32-F4-3	33.8 V	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	14.3 mm	Warm White	99 lm/W	1670 lm	1.37 mm	90	85 °C	1.25 A			500 mA	120 °	Square
Luminus Devices Inc. CLM-14-57-70-36-AC40-F5-2
