HF920 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
900V, FIXED-FREQUENCY, EMI-OPTIM
| Part | Internal Switch(s) | Voltage - Start Up | Power (Watts) | Voltage - Breakdown | Topology | Frequency - Switching [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Output Isolation | Package / Case | Package / Case | Package / Case | Duty Cycle | Control Features | Fault Protection | Supplier Device Package | Board Type | Power - Output | Outputs and Type | Outputs and Type | Supplied Contents | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Main Purpose | Voltage - Output | Power - Output [x] | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

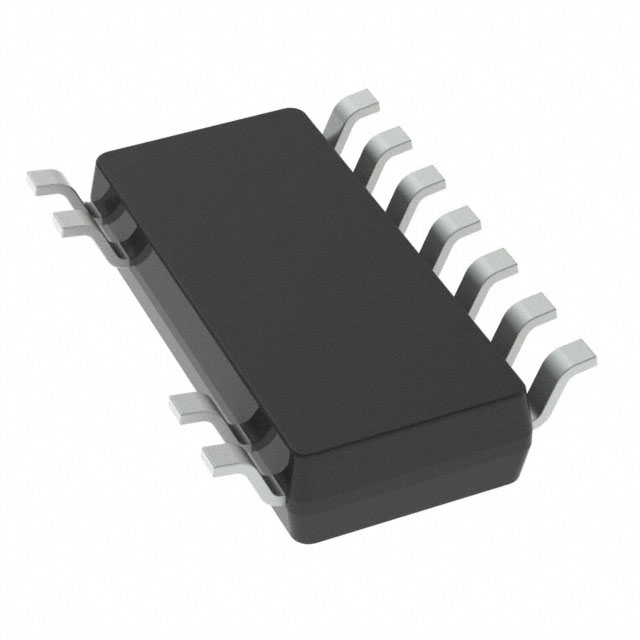

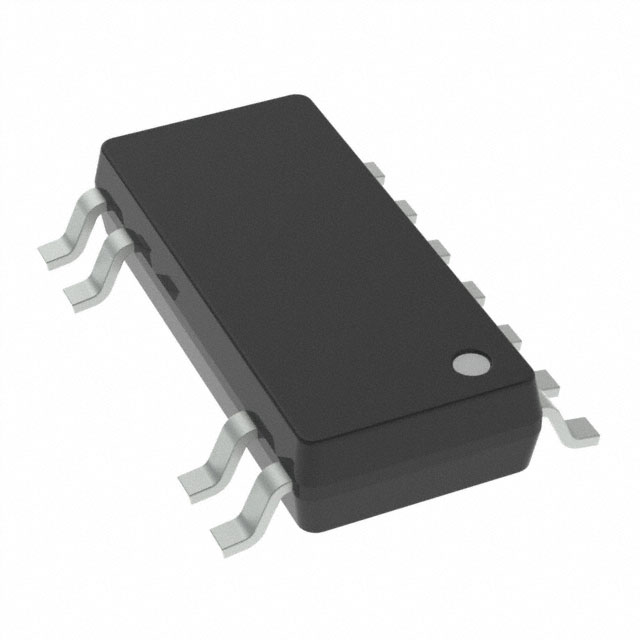

 Monolithic Power Systems Inc. | 4 V | 10 W | 900 V | Flyback | 150 kHz | Surface Mount | -40 C | 125 °C | 24 V | 10 V | Isolated | 11 Leads 14-SOIC | 3.9 mm | 0.154 in | 83 % | Frequency Control | Current Limiting Over Load Over Temperature Short Circuit | 14-SOIC-11 | |||||||||||||||
 Monolithic Power Systems Inc. | 10 W | 900 V | Flyback | 150 kHz | Surface Mount | -40 C | 125 °C | 24 V | 10 V | 11 Leads 14-SOIC | 3.9 mm | 0.154 in | Soft Start | Over Load Over Temperature Over Voltage Short Circuit | 14-SOIC-11 | ||||||||||||||||||

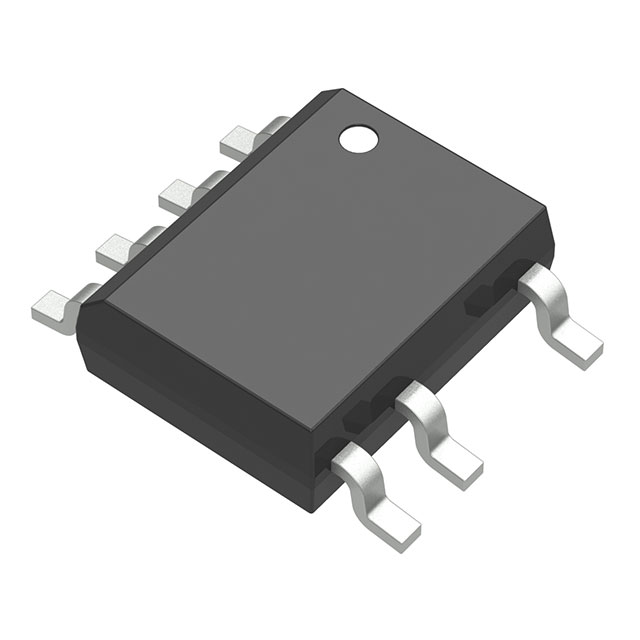

 Monolithic Power Systems Inc. | 10 W | 900 V | Flyback | 150 kHz | Surface Mount | -40 C | 125 °C | 24 V | 10 V | 8-SOIC | 0.154 in 3.9 mm 7 Leads | Soft Start | Over Load Over Temperature Over Voltage Short Circuit | 8-SOIC-7A | |||||||||||||||||||
Monolithic Power Systems Inc. | 10 W | 900 V | Flyback | 150 kHz | Surface Mount | -40 C | 125 °C | 24 V | 10 V | 8-SOIC | 0.154 in 3.9 mm 7 Leads | Soft Start | Over Load Over Temperature Over Voltage Short Circuit | 8-SOIC-7A | |||||||||||||||||||
 Monolithic Power Systems Inc. | Fully Populated | 4.85 W | 3 | 3 Isolated Outputs Isolated | Board(s) | Flyback | 85 VAC | 350 VAC | 50 mA 300 mA | AC/DC Primary Side | 8 V 13.5 V | 4.85 W | Board(s) | HF920 | |||||||||||||||||||
Monolithic Power Systems Inc. | 4 V | 10 W | 900 V | Flyback | 150 kHz | Surface Mount | -40 C | 125 °C | 24 V | 10 V | Isolated | 11 Leads 14-SOIC | 3.9 mm | 0.154 in | 83 % | Frequency Control | Current Limiting Over Load Over Temperature Short Circuit | 14-SOIC-11 | |||||||||||||||
Monolithic Power Systems Inc. | 10 W | 900 V | Flyback | 150 kHz | Surface Mount | -40 C | 125 °C | 24 V | 10 V | 11 Leads 14-SOIC | 3.9 mm | 0.154 in | Soft Start | Over Load Over Temperature Over Voltage Short Circuit | 14-SOIC-11 |
