LB16WKW Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Mechanical Life	Electrical Life	Illumination Type, Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Color - Actuator/Cap	Current Rating (Amps)	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Voltage Rating - AC	Actuator Marking	Mounting Type	Actuator Type	Illumination Voltage (Nominal)	Circuit
NKK Switches LB16WKW01-5F-JC	200000 Cycles	100000 Cycles	Green LED	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	2.1 VDC	SPDT

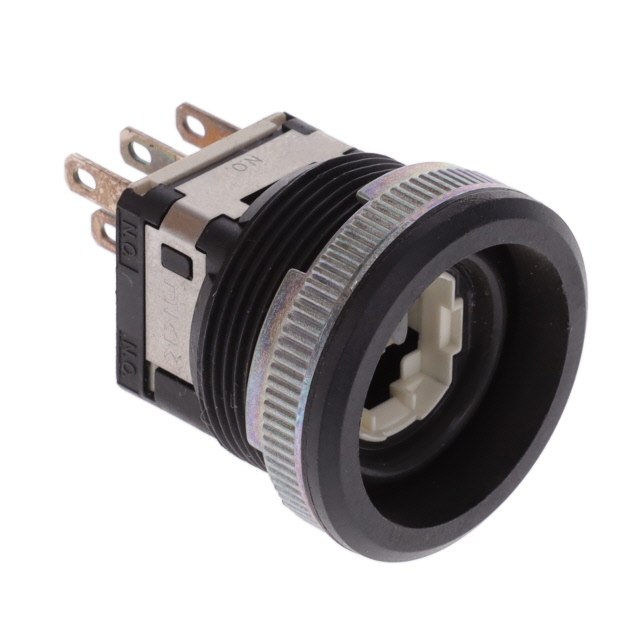

NKK Switches LB16WKW01	200000 Cycles	100000 Cycles		IP65 - Dust Tight Water Resistant	70 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On		3 A	Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Plunger for Cap		SPDT
NKK Switches LB16WKW01-5C05-JC	200000 Cycles	100000 Cycles	LED Red	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	5 VDC	SPDT
NKK Switches LB16WKW01-5D-JB	200000 Cycles	100000 Cycles	Amber LED	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	2 VDC	SPDT
NKK Switches LB16WKW01-5C24-JB	200000 Cycles	100000 Cycles	LED Red	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	24 V	SPDT
NKK Switches LB16WKW01-5D24-JD	200000 Cycles	100000 Cycles	Amber LED	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	24 V	SPDT
NKK Switches LB16WKW01-A	200000 Cycles	100000 Cycles		IP65 - Dust Tight Water Resistant	70 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Black	3 A	Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round		SPDT
NKK Switches LB16WKW01-5F05-JB	200000 Cycles	100000 Cycles	Green LED	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	5 VDC	SPDT
NKK Switches LB16WKW01-5C12-JC	200000 Cycles	100000 Cycles	LED Red	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	12 VDC	SPDT
NKK Switches LB16WKW01-05-JF	200000 Cycles	100000 Cycles	Green Incandescent	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Clear	3 A	Illuminated Standard	22 mm	30 V	125 V	No Marking	Panel Mount Front	Button Round	5 VAC	SPDT
