HSMF-A341 Series
Manufacturer: Broadcom Limited
Beta
⌘K

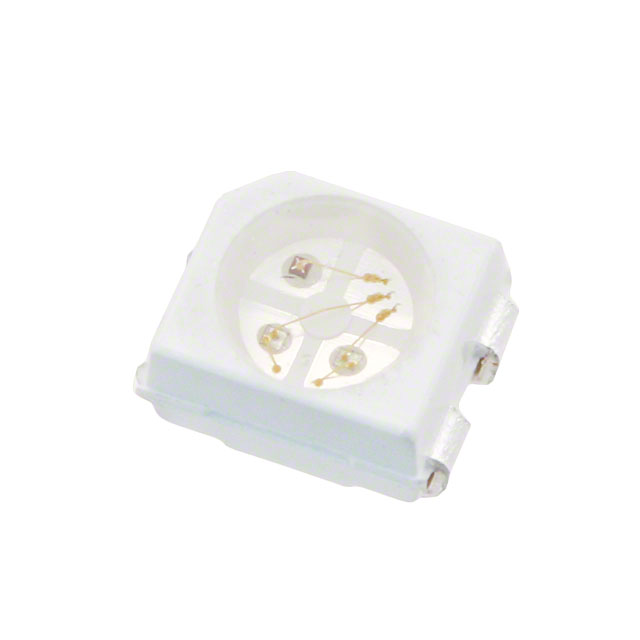

LED RGB CLEAR 4PLCC SMD
| Part | Lens Transparency | Configuration | Lens Size [diameter] | Current - Test | Height (Max) [z] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Color | Size / Dimension [y] | Size / Dimension [x] | Lens Style | Package / Case | Mounting Type | Wavelength - Dominant | Viewing Angle | Voltage - Forward (Vf) (Typ) | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Color | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Clear | Common Anode | 2.2 mm | 20mA Blue 20mA Green 20mA Red | 2.1 mm | 80 mcd | 40 mcd | 160 mcd | Colorless | 2.8 mm | 3.2 mm | Round with Flat Top | 4-PLCC | Surface Mount | 470 nm 525 nm 626 nm | 120 ° | 1.9 V 3.4 V 3.4 V | 523 nm | 635 nm | 468 nm | Blue Green Red | 4-PLCC |
