AH1N Series

Catalog

SWITCH PB DPST-NO/NC 1A 125V

Part	Circuit	Features	Electrical Life	Type	Panel Cutout Dimensions [diameter]	Termination Style	Mounting Type	Ingress Protection	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Actuator Marking	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Current Rating (Amps)	Illumination Type, Color	Illumination Voltage (Nominal)

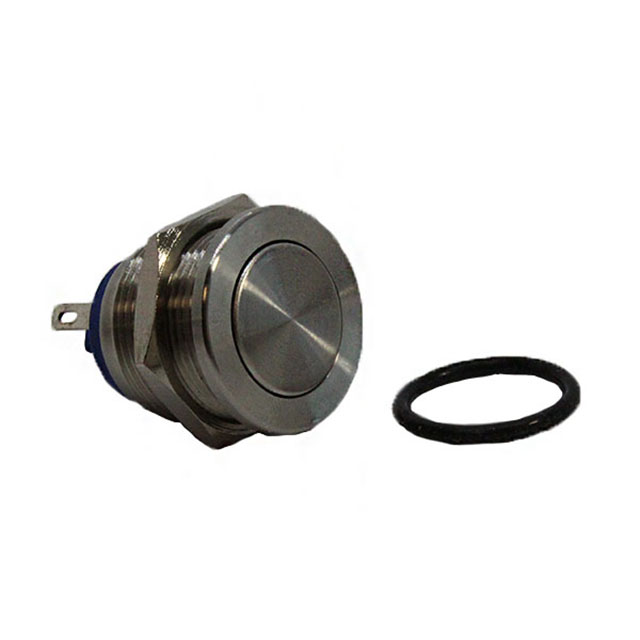

CIT Relay and Switch AH1NASX	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel Stainless Steel 316	50000 Cycles	Anti-Vandal	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Silver	1 A

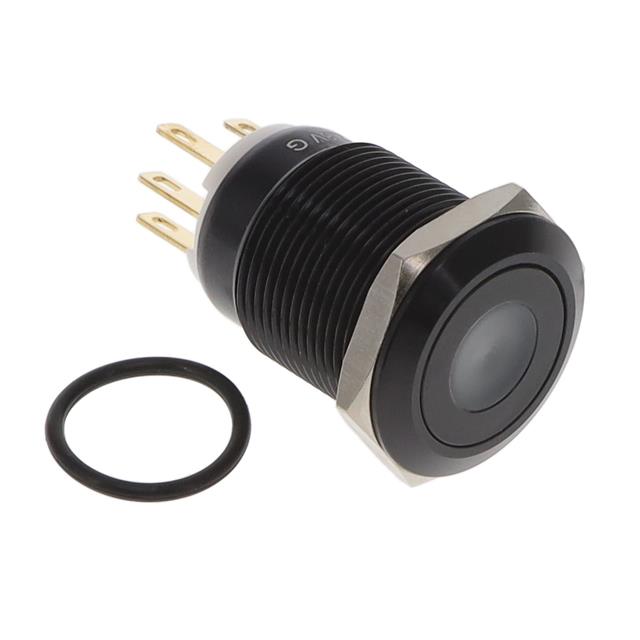

CIT Relay and Switch AH1NCBGN	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Black	1 A	Green LED

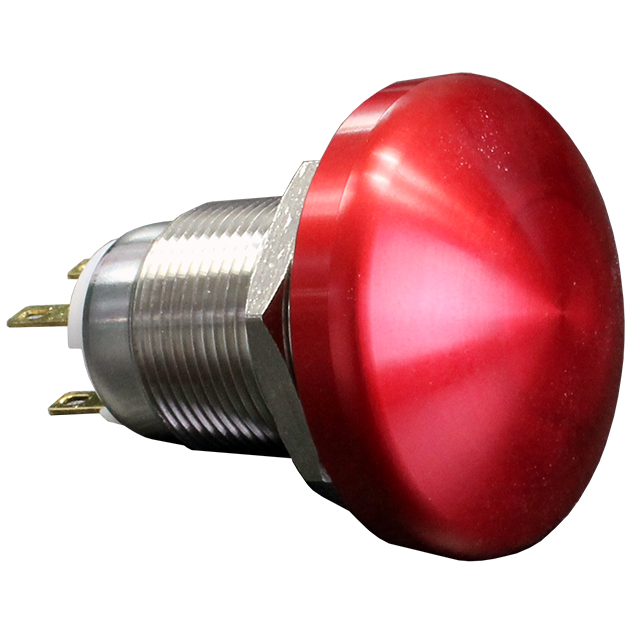

CIT Relay and Switch AH1NMRSX	SPST-NC SPST-NO	Stainless Steel 316	50000 Cycles	Anti-Vandal	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Mushroom Round	-25 °C	70 °C	Red	1 A

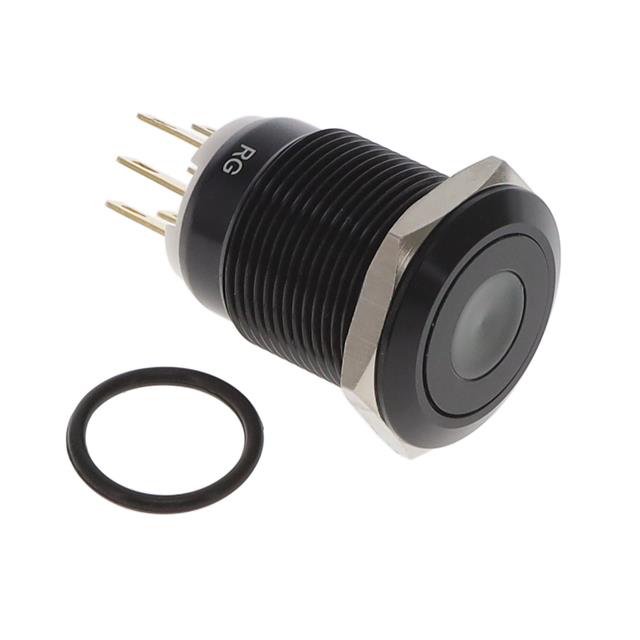

CIT Relay and Switch AH1NCBRGN	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Black	1 A	Green/Red LED

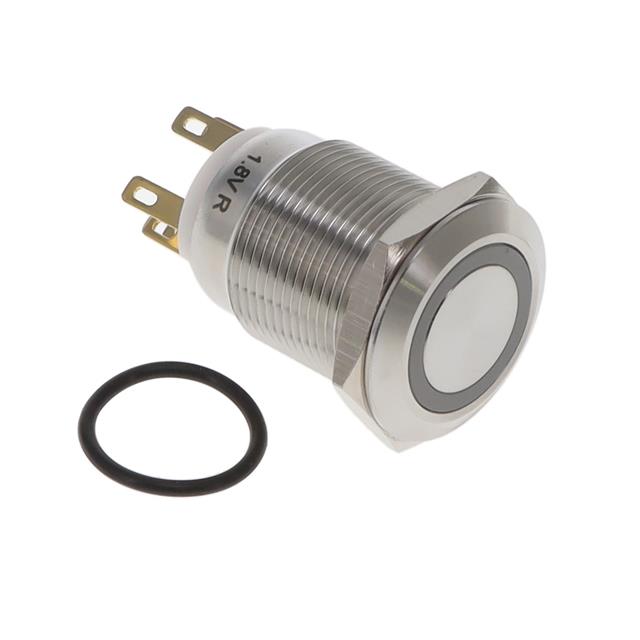

CIT Relay and Switch AH1NBSRN	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Silver	1 A	LED Red

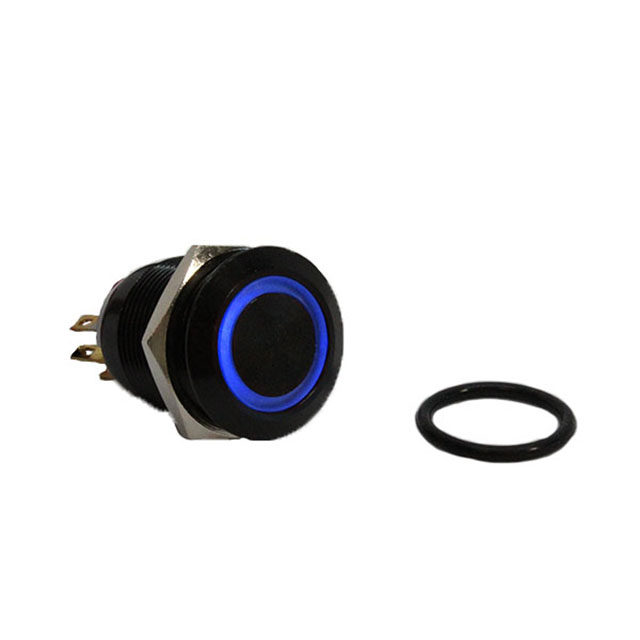

CIT Relay and Switch AH1NBBBN	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Black	1 A	Blue LED

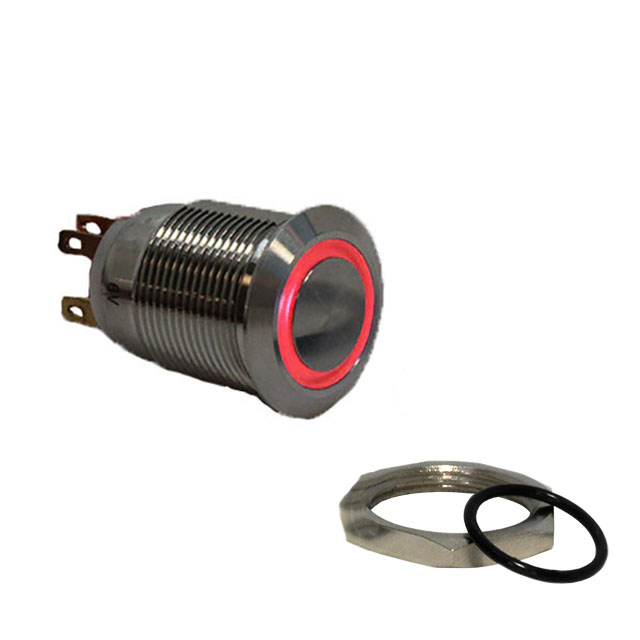

CIT Relay and Switch AH1NBSRG24	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Silver	1 A	Green/Red LED	24 V

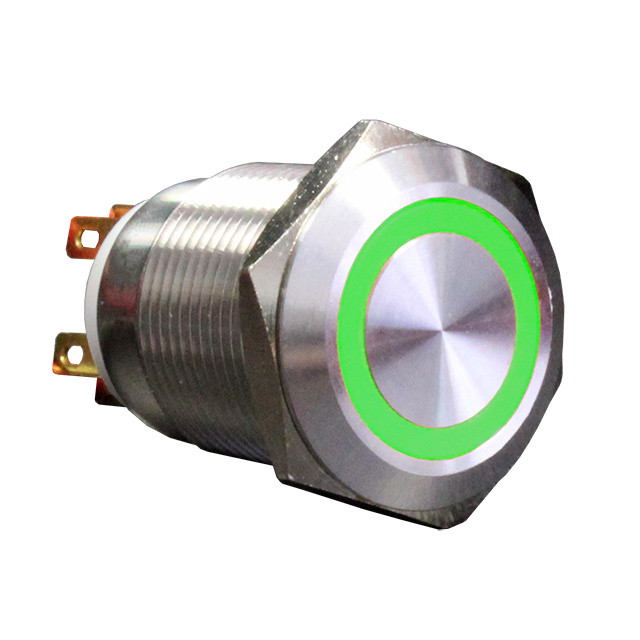

CIT Relay and Switch AH1NBSG12	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Silver	1 A	Green LED	12 VDC

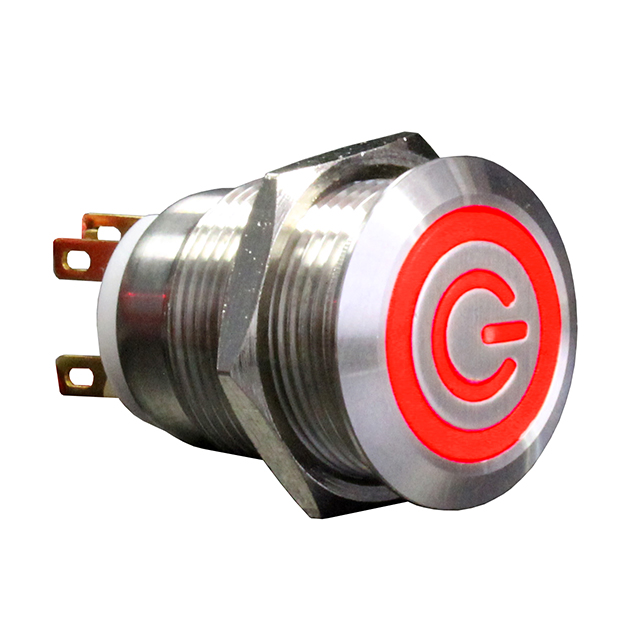

CIT Relay and Switch AH1NGSRN	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Silver	1 A	LED Red

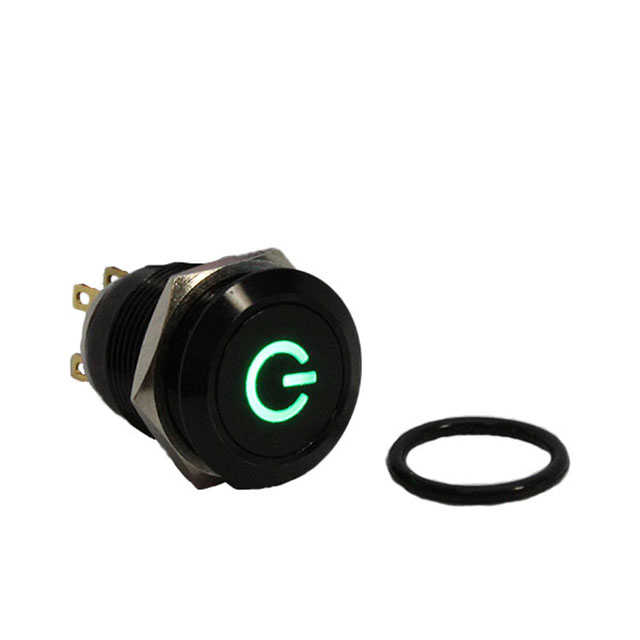

CIT Relay and Switch AH1NGBRGN	DPST-NO/NC SPST-NC SPST-NO	Stainless Steel 316	50000 Cycles	Anti-Vandal Illuminated	19 mm	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	125 V	Off-Mom On-Mom	No Marking	Button Flush Round	-25 °C	70 °C	Black	1 A	Green/Red LED
