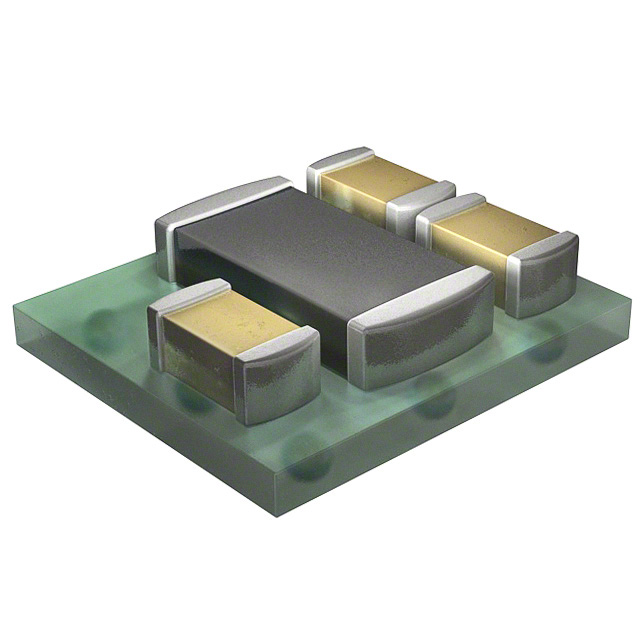

TPS82692 Series
Manufacturer: Texas Instruments
Beta
⌘K
800-MA, HIGH-EFFICIENCY MICROSIP™ STEP-DOWN CONVERTER MODULE
| Part | Number of Outputs | Features | Package / Case | Current - Output (Max) [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Applications | Efficiency | Voltage - Output 1 | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Voltage - Input (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | OCP OTP UVLO | 8-SMD Module | 0.8 A | Surface Mount | 2.4 mm | 0.09 " | 0.04 in | 3 mm | 0.12 inches | 1 mm | 2.3 V | ITE (Commercial) | 95 % | 2.2 V | 2.3 | 8-uSIP | 2.9 | 4.8 V | Non-Isolated PoL Module | 85 °C | -40 C |
 Texas Instruments | 1 | OCP OTP UVLO | 8-SMD Module | 0.8 A | Surface Mount | 2.4 mm | 0.09 " | 0.04 in | 3 mm | 0.12 inches | 1 mm | 2.3 V | ITE (Commercial) | 95 % | 2.2 V | 2.3 | 8-uSIP | 2.9 | 4.8 V | Non-Isolated PoL Module | 85 °C | -40 C |
