2823199 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,PL,SRVT,SMD,SN,TR W/CAP

Part	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Style	Current Rating (Amps)	Features	Contact Material	Fastening Type	Termination	Number of Positions Loaded	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Voltage Rating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Material	Connector Type	Number of Positions	Shrouding
TE Connectivity Raychem Cable Protection 1-2823199-2	Tin	118.1 µin	3 µm	-40 °C	105 ░C	Square	1	Board to Board Cable	2 A	Pick and Place	Phosphor Bronze	Latch Holder	Solder	All	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	UL94 V-0	125 VAC	Black	0.3 µm	12 µin	4 mm	0.157 in	Surface Mount	Thermoplastic	Header	12	Shrouded - 2 Wall

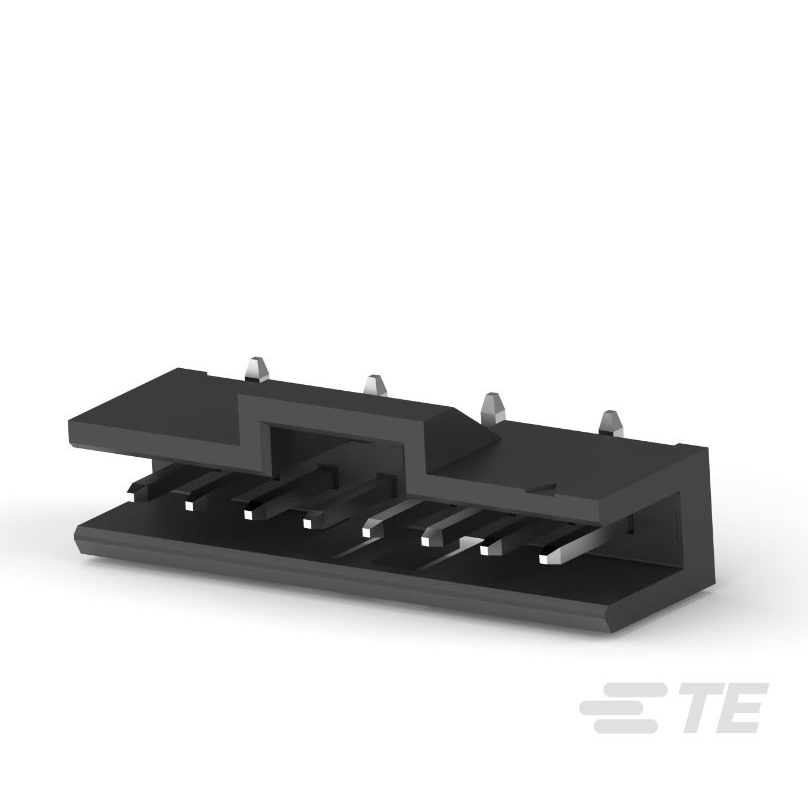

TE Connectivity Raychem Cable Protection 2823199-8	Tin	118.1 µin	3 µm	-40 °C	105 ░C	Square	1	Board to Board Cable	2 A	Pick and Place	Phosphor Bronze	Latch Holder	Solder	All	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	UL94 V-0	125 VAC	Black	0.3 µm	12 µin	4 mm	0.157 in	Surface Mount	Thermoplastic	Header	8	Shrouded - 2 Wall

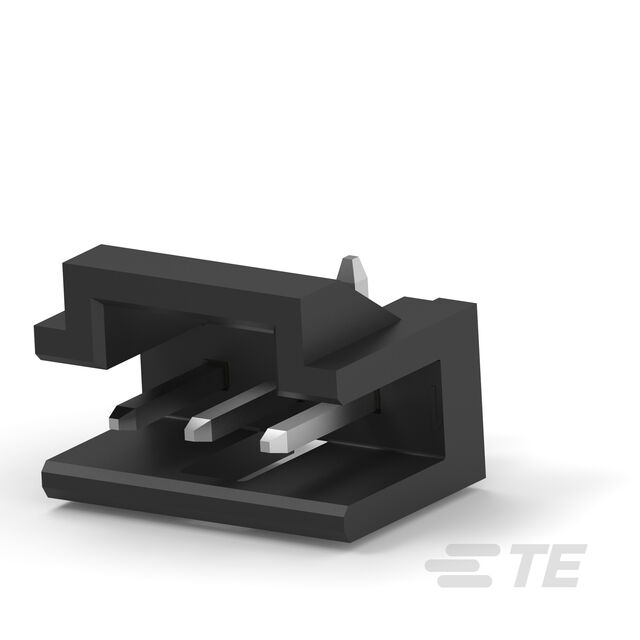

TE Connectivity Raychem Cable Protection 2823199-4	Tin	118.1 µin	3 µm	-40 °C	105 ░C	Square	1	Board to Board Cable	2 A	Pick and Place	Phosphor Bronze	Latch Holder	Solder	All	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	UL94 V-0	125 VAC	Black	0.3 µm	12 µin	4 mm	0.157 in	Surface Mount	Thermoplastic	Header	4	Shrouded - 2 Wall

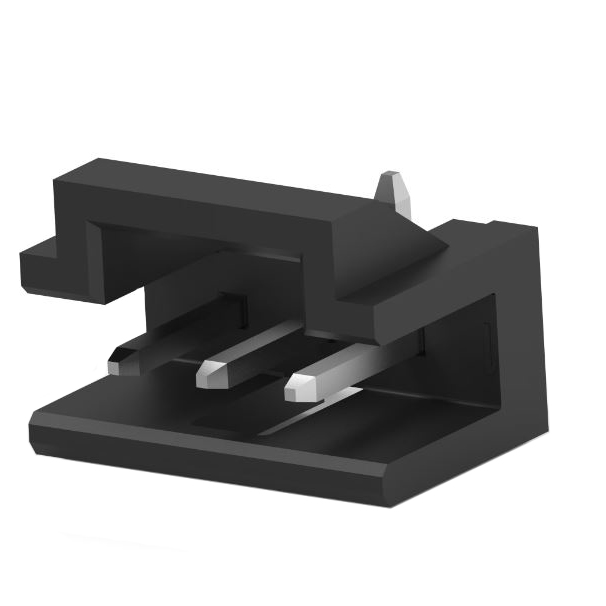

TE Connectivity Raychem Cable Protection 2823199-3	Tin	118.1 µin	3 µm	-40 °C	105 ░C	Square	1	Board to Board Cable	2 A	Pick and Place	Phosphor Bronze	Latch Holder	Solder	All	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	UL94 V-0	125 VAC	Black	0.3 µm	12 µin	4 mm	0.157 in	Surface Mount	Thermoplastic	Header		Shrouded - 2 Wall
