892-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K

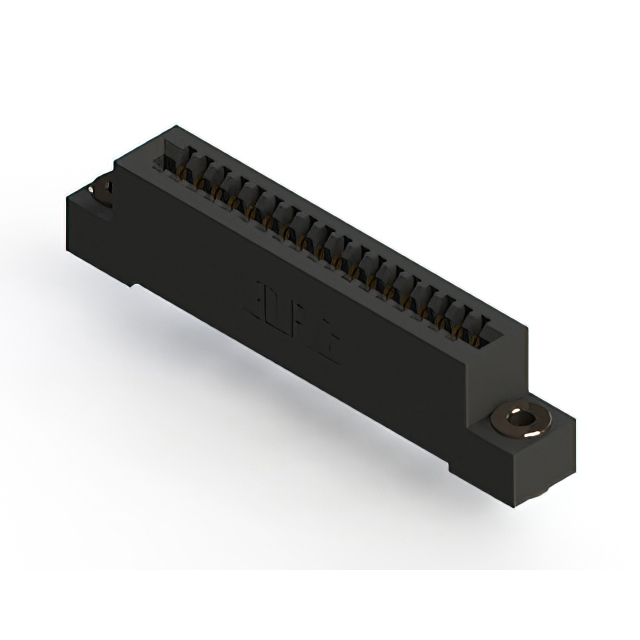

CONN EDGE DUAL FMALE 18POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Termination | Contact Finish Thickness | Contact Finish Thickness | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Color | Card Type | Number of Positions | Contact Finish | Pitch | Pitch | Number of Rows [custom] | Read Out | Contact Material | Number of Positions/Bay/Row | Contact Type | Mounting Type | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Dual Edge | 18 | Gold | 0.1 " | 2.54 mm | 2 | Dual | Copper Alloy | 9 | Cantilever | Through Hole | |||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Single Edge | 18 | Gold | 0.1 " | 2.54 mm | Single | Copper Alloy | Cantilever | Through Hole | 1 | 18 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Single Edge | 18 | Gold | 0.1 " | 2.54 mm | Single | Copper Alloy | Cantilever | Through Hole | 1 | 18 | Flush Mount M3 Threaded Insert Top Opening | 1 | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Dual Edge | 18 | Gold | 0.1 " | 2.54 mm | 2 | Dual | Copper Alloy | 9 | Cantilever | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Dual Edge | 18 | Gold | 0.1 " | 2.54 mm | 2 | Dual | Copper Alloy | 9 | Cantilever | Right Angle Through Hole | |||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Dual Edge | 18 | Gold | 0.1 " | 2.54 mm | 2 | Dual | Copper Alloy | 9 | Cantilever | Board Edge Straddle Mount | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Card Extender | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Dual Edge | 18 | Gold | 0.1 " | 2.54 mm | 2 | Dual | Copper Alloy | 9 | Cantilever | Through Hole | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Single Edge | 18 | Gold | 0.1 " | 2.54 mm | Single | Copper Alloy | Cantilever | Through Hole | 1 | 18 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Single Edge | 18 | Gold | 0.1 " | 2.54 mm | Single | Copper Alloy | Cantilever | Through Hole | 1 | 18 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Non Specified - Single Edge | 18 | Gold | 0.1 " | 2.54 mm | Single | Copper Alloy | Cantilever | Through Hole | 1 | 18 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 1 |
