8G1014 Series

Catalog

SWITCH TOGGLE SPDT 25MA 20V

Part	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Actuator Type	Circuit	Features	Actuator Length [x]	Switch Function	Illumination	Bushing Thread	Voltage Rating - AC

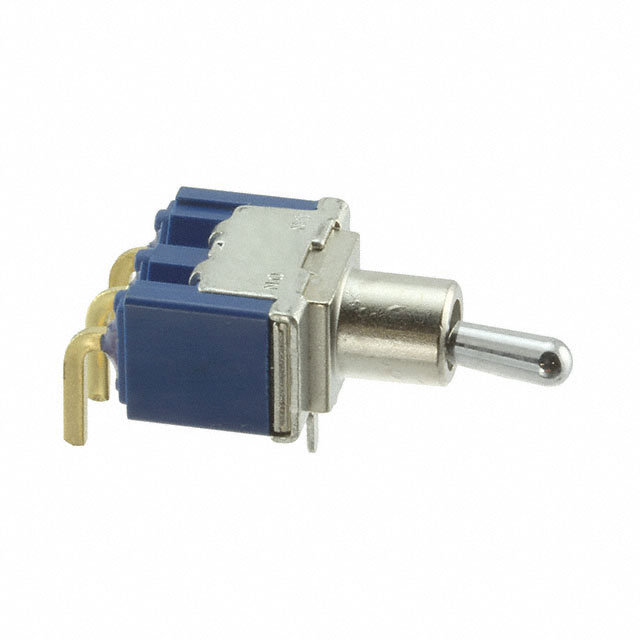

Nidec Components Corporation 8G1014C-Z	50000 Cycles	25 mA	20 V	-25 °C	80 °C	Right Angle Through Hole	PC Pin	Standard Round	SPDT	Washable	6.8 mm	On-On	Non-Illuminated	Unthreaded

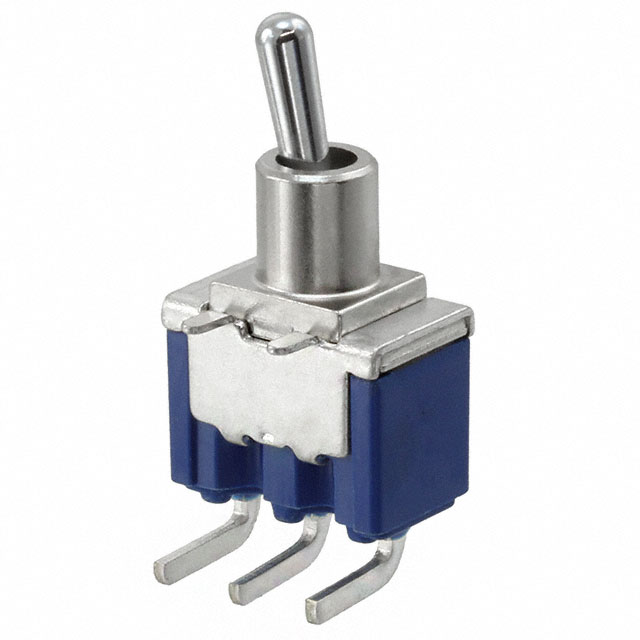

Nidec Components Corporation 8G1014-Z	50000 Cycles	4 A 6 A	30 V	-25 °C	80 °C	Right Angle Through Hole	PC Pin	Standard Round	SPDT	Washable	6.8 mm	On-On	Non-Illuminated	Unthreaded	125 V
