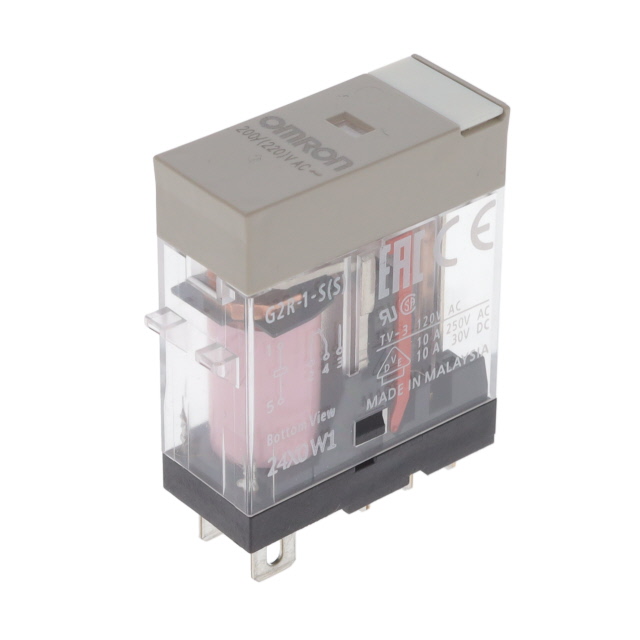

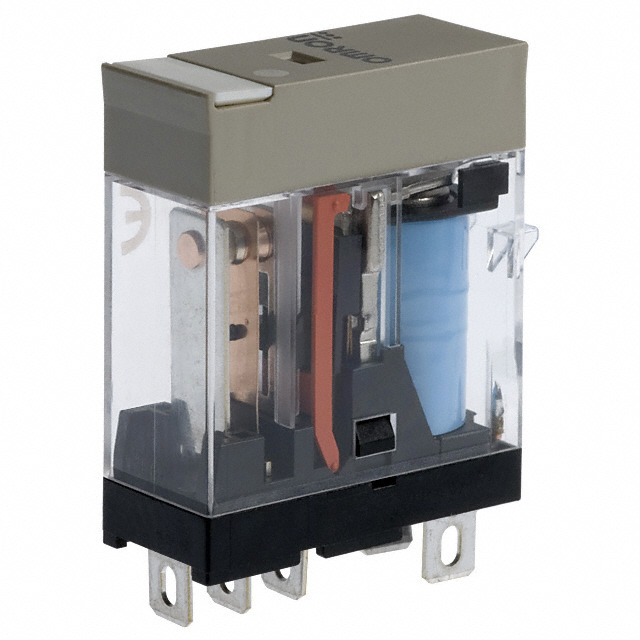

G2R-1-S Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 12V
| Part | Coil Resistance | Contact Rating (Current) | Release Time | Coil Current | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Relay Type | Switching Voltage | Termination Style | Approval Agency | Features | Must Operate Voltage | Load - Max Switching | Operate Time | Coil Voltage | Contact Form | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 278 Ohms | 10 A | 20 ms | 43.2 mA | 1.8 VDC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | Diode | 8.4 VDC | 1250 W 4400 VA | 15 ms | 12 VDC | SPDT (1 Form C) | Non Latching |
Omron Electronics Inc-EMC Div | 10 A | 10 ms | 14.4 VAC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In | CE CSA LR UR VDE | Lighted Indicator | 38.4 VAC | 1250 W 4400 VA | 15 ms | 48 VAC/DC | SPDT (1 Form C) | Non Latching | ||
Omron Electronics Inc-EMC Div | 253 Ohms | 10 A | 10 ms | 37.5 mA | 7.2 VAC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | 19.2 VAC | 1250 W 4400 VA | 15 ms | 24 VAC | SPDT (1 Form C) | Non Latching | |
 Omron Electronics Inc-EMC Div | 41.5 kOhms | 10 A | 10 ms | 5.3 mA | 66 VAC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | 176 VAC | 1250 W 4400 VA | 15 ms | 220 VAC/DC | SPDT (1 Form C) | Non Latching | |
Omron Electronics Inc-EMC Div | 278 Ohms | 10 A | 20 ms | 43.2 mA | 1.8 VDC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | Diode Lighted Indicator Test Button | 8.4 VDC | 1250 W 4400 VA | 15 ms | 12 VDC | SPDT (1 Form C) | Non Latching |
Omron Electronics Inc-EMC Div | 278 Ohms | 10 A | 10 ms | 43.2 mA | 1.8 VDC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | Lighted Indicator | 8.4 VDC | 1250 W 4400 VA | 15 ms | 12 VDC | SPDT (1 Form C) | Non Latching |
Omron Electronics Inc-EMC Div | 69 Ohms | 10 A | 10 ms | 87 mA | 0.9 VDC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | 4.2 VDC | 1250 W 4400 VA | 15 ms | SPDT (1 Form C) | Non Latching | ||
Omron Electronics Inc-EMC Div | 18.86 kOhms | 10 A | 10 ms | 5.3 mA | 15 VDC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | 70 VDC | 1250 W 4400 VA | 15 ms | 100 VDC | SPDT (1 Form C) | Non Latching | |
Omron Electronics Inc-EMC Div | 10 A | 10 ms | 3.2 mA | 72 VAC/DC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | 192 VAC | 1250 W 4400 VA | 15 ms | 240 VAC | SPDT (1 Form C) | Non Latching | ||
Omron Electronics Inc-EMC Div | 4.22 kOhms | 10 A | 20 ms | 11.4 mA | 7.2 VDC | -40 °C | 70 °C | Socketable | General Purpose | 125 VDC 440 VAC | Plug In Quick Connect - 0.187" (4.7mm) | CE CSA LR UR VDE | Diode Lighted Indicator | 33.6 VDC | 1250 W 4400 VA | 15 ms | 48 VDC | SPDT (1 Form C) | Non Latching |
