3336 Series

Catalog

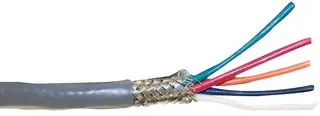

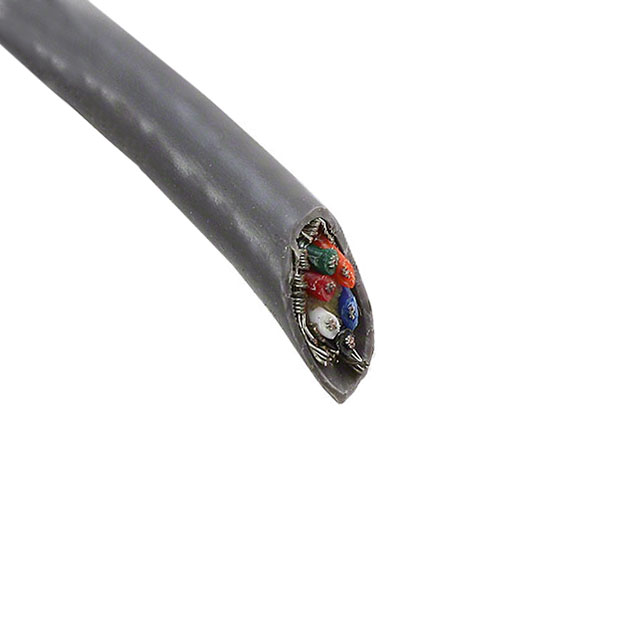

CABLE 6CON 22AWG SLATE SHLD 100'

Part	Shield Material	Shield Type	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Wire Gauge	Jacket Color	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Voltage	Usage	Conductor Material	Conductor Strand [custom]	Conductor Strand	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
ALPHA WIRE 3336 SL005	Copper Tinned	Braid	Poly-Vinyl Chloride (PVC)	6	0.246 in	6.25 mm	30.5 m	100 ft	22 AWG	Slate	Multi-Conductor	0.02 in	0.508 mm	90 %	600 V	Communication Control	Copper Tinned	19 Strands	34 AWG	Poly-Vinyl Chloride (PVC)	105 ░C	-55 °C
ALPHA WIRE 3336 SL001	Copper Tinned	Braid	Poly-Vinyl Chloride (PVC)	6	0.246 in	6.25 mm			22 AWG	Slate	Multi-Conductor	0.02 in	0.508 mm	90 %	600 V	Communication Control	Copper Tinned	19 Strands	34 AWG	Poly-Vinyl Chloride (PVC)	105 ░C	-55 °C	1000 ft	304.8 m
