R14150 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

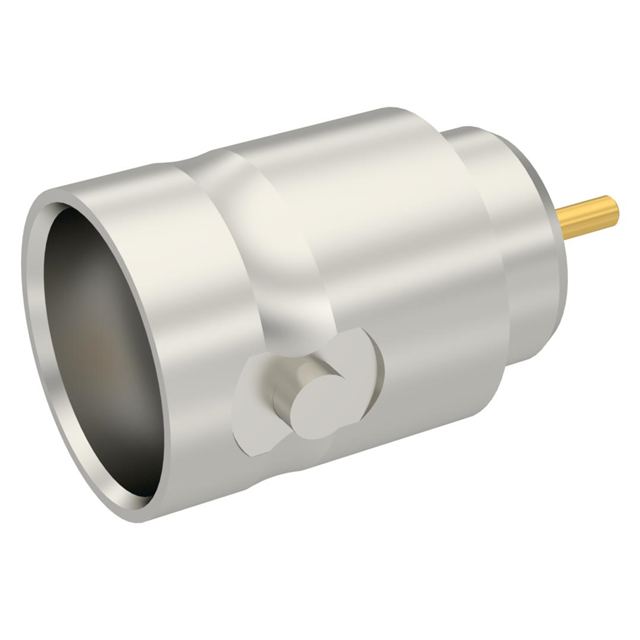

BNC / STRAIGHT PRESS MOUNT RECEP
| Part | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Number of Ports | Impedance | Shield Termination | Connector Style | Fastening Type | Contact Termination | Center Contact Material | Mounting Type | Frequency - Max [Max] | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Nickel | -35 °C | 70 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 1 | 50 Ohms | Solder | BNC | Bayonet Lock | Solder | Brass | Through Hole | 1.5 GHz | Receptacle Female Socket | Silver |
